Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Please adhere to the actual products in case of any discrepancies in this user manual.
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.

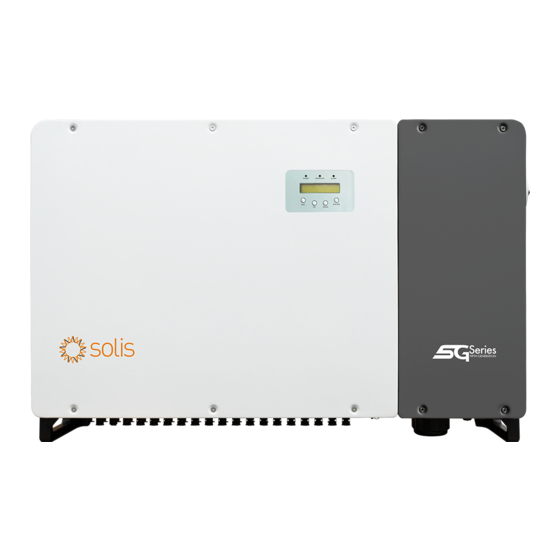

Solis Three Phase Inverter
Installation and Operation Manual
(100-125)K
Ginlong Technologies Co., Ltd.
Ver1.5
Advertisement
Table of Contents
Related Manuals for Ginlong Solis-100K-5G
Summary of Contents for Ginlong Solis-100K-5G
- Page 1 Solis Three Phase Inverter Installation and Operation Manual (100-125)K Ver1.5 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.
-
Page 2: Table Of Contents
Contents Contents 1. Introduction 7.3 Settings ………………………………………………………………………………………………………………………………………… ……………………………………………………………………………………………………………………………… 1.1 Product Description ……………………………………………………………………………………………………… 7.3.1 Set Time …………………………………………………………………………………………………… 1.2 Unpacking and storage ……………………………………………………………………………………………… 7.3.2 Set Address …………………………………………………………………………………………………… 1.2.1 Storage 7.4 Advanced Info - Technicians Only ……………………………………………………………………………………………………………… …………………………………………………………………………… 2. Safety instructions 7.4.1 Alarm Message ………………………………………………………………………………………………………………………... -
Page 3: Introduction
When unpacking, please verify all the parts listed below are included: distribution grid. This manual covers the three phase inverter model listed below: Solis-100K-5G, Solis-110K-5G, Solis-125K-HV-5G, Solis-50K-LV-5G, Solis-60K-LV-5G The following two models are specially supplied for South Africa market: Solis-100K-5G-SA, Solis-110K-5G-SA... -
Page 4: Storage
1. Introduction 2. Safety Instructions 1.2.1 Storage Improper use may result in electric shock hazards or burns. This product manual contains important instructions that are required to be followed during installation and maintenance. If the inverter is not installed immediately, storage instructions and environmental conditions are below: Please read these instructions carefully before use and keep them in an easily locatable place ●... -
Page 5: Notice For Use
2. Safety Instructions 3. Installation 3.1 Environmental considerations 3.1.1 Select a location for the inverter CAUTION When selecting a location for the inverter, consider the following: Risk of electric shock from energy stored in the inverter's capacitors. Do not remove cover until five (5) minutes after disconnecting all sources WARNING: Risk of fire of supply have passed, and this can only be done by a service technician. -
Page 6: Other Environmental Considerations
3. Installation 3. Installation 3.1.1.1 Examples of correct and incorrect installations 3.1.2.3 Avoiding direct sunlight Installation of the inverter in a location exposed to direct sunlight should to be avoided. Direct exposure to sunlight could cause: ● Power output limitation (with a resulting decreased energy production by the system). ●... -
Page 7: Mounting The Inverter
3. Installation 3. Installation 3.3.1 Wall mounting Refer to figure 3.6 and figure 3.7 Inverter shall be mounted vertically. The steps to mount the inverter are listed below. 1. Refer to Figure 3.6, drill holes for mounting screws based on the hole diameter of bracket using a precision drill keeping the drill perpendicular to the wall. -
Page 8: Rack Mounting
3. Installation 3. Installation 3.3.2 Rack mounting The steps to mounted to the rack are listed below: 3. Install mounting plate 1. Select a location for the inverter 1) Remove the bracket and fasteners from the packaging. Mark the position for hole, drilling according to the hole positions of the bracket. -
Page 9: Electrical Connections
3. Installation 3. Installation 3.4 Electrical Connections 3) Align the mounting plate with the holes, insert the combination bolt (M10X40)through the Inverter design uses PV style quick-connect terminal. The top cover needn't be opened mounting plate into the hole. Secure the bracket to the metal frame firmly with the supplied during DC electrical connection. -
Page 10: Grounding
3. Installation 3. Installation 3.4.1 Grounding 4) Insert the stripped wire into the OT terminal crimping area and use the hydraulic To effectively protect the inverter, two grounding methods must be performed. Connect the AC grounding cable (Please refer to section 3.4.3) clamp to crimp the terminal to the wire (see Figure 3.16). -
Page 11: Connect Pv Side Of Inverter
3. Installation 3. Installation 3.4.2 Connect PV side of inverter WARNING Before connecting the inverter, make sure the PV array open circuit voltage is within the limit of the inverter. Otherwise, the inverter could be damaged. WARNING DO NOT connect the PV array positive or PV array negative cable to ground. This can cause serious damage to the inverter! Figure 3.23 Connect the DC Figure 3.22 Multimeter measurement... -
Page 12: Connect Grid Side Of Inverter
(Amps) device (A) Do not touch an energized DC conductor. There are high voltages present when PV modules 220/380,230/400 Solis-100K-5G 152.0/144.3 are exposed to light causing a risk of death due to an electric shock from touching a DC 220/380,230/400 Solis-110K-5G 167.1/158.8... - Page 13 3. Installation 3. Installation 3) Leave the AC breaker disconnected to ensure it does not close unexpectedly. 4) Remove the 4 screws on the inverter junction box and remove the junction box cover. Cable specification Copper-cored cable Traverse cross Range 35~185 sectional area (mm ) Recommended...
-
Page 14: Rs485 And Plc Communication Connection
4. Comm. & Monitoring 4. Comm. & Monitoring There are 5 communication terminals on the inverters. PLC is available for multiple inverter monitoring. COM1 is a 4-pin connector reserved for WiFi/Cellular datalogger. COM2 - COM3 are used for RS485 communication between inverters. Both RJ45 and terminal block are provided for use. -
Page 15: Logic Interface Connection
4. Comm. & Monitoring 5. Commissioning 4.2 Logic interface connection 5.1 Selecting the appropriate grid standard Logic interface is required by some local regulations that can be operated by a simple switch 5.1.1 Verifying grid standard for country of installation or contactor(Not available in South Africa). -
Page 16: Setting A Custom Grid Standard
5. Commissioning 5. Commissioning 5.4 Preliminary checks 3). Use the UP/DOWN keys to highlight the SELECT STANDARD option. Press enter to WARNING select. High Voltage. AC and DC measurements should be made only by qualified personnel. Select Standard Grid ON/OFF 5.4.1 DC Connections Figure 5.3 Verify DC connections. -
Page 17: Ac Configuration
5. Commissioning 6. Start and Shutdown 5.4.3.2.1 Detection of leakage to ground 6.1 Start-up procedure Solis inverters are transformer-less and do not have an array connection to ground. To start-up the inverter, it is mandatory that the steps below are followed in the exact order Any measurement of a fixed voltage between ground and either the positive or negative string outlined. -
Page 18: Normal Operation
7. Normal operation 7. Normal operation Display Duration Description In normal operation, LCD screen alternatively shows inverter power and operation status (see Figure 7.1). The screen can be scrolled manually by pressing the UP/DOWN keys. VPV_Total: Shows input voltage total. VPV_Total: 1000.0V 10 sec IPV_Total:... -
Page 19: Lock Screen
7. Normal operation 7. Normal operation 7.2.1 Lock Screen 7.4 Advanced Info - Technicians Only Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks NOTE: (Figure 7.2(a)) or unlocks (Figure 7.2 (b)) the screen. To access to this area is for fully qualified and accredited technicians only. Enter menu “Advanced Info.”... -
Page 20: Version
7. Normal operation 7. Normal operation 7.4.3 Version 7.4.6 Yearly Energy The screen shows the model version of the inverter. And the screen will show the The function is for checking the energy generation for selected year. software ver by pressing the UP and DOWN at the same time.(see Figure 7.7). YES=<ENT>... -
Page 21: Advanced Settings - Technicians Only
7. Normal operation 7. Normal operation 7.5 Advanced Settings - Technicians Only NOTE: OV-G-V1: 300---480V OV-G-F1: 50.2-63Hz To access to this area is for fully qualified and accredited technicians only. OV-G-V1-T: 0.01---9S OV-G-F1-T: 0.01---9S Please follow 7.4 to enter password to access this menu. OV-G-V2: 300---490V OV-G-F2: 51-63Hz OV-G-V2-T: 0.01---1S... -
Page 22: Calibrate Energy
7. Normal operation 7. Normal operation 7.5.3 Clear Energy 7.5.6 Calibrate Energy Clear Energy can reset the history yield of inverter Maintenance or replacement could clear or cause a different value of total energy. Use this function could allow user to revise the value of total energy to the same value as before. If the monitoring website is used the data will be synchronous with this setting automatically. -
Page 23: Restore Settings
7. Normal operation 7. Normal operation 7.5.8.1 Enable logic interface settings 7.5.11 External EPM Set This function is turned on when the EPM is external. Please follow below settings to enable the DRM. DRM default setting is “OFF” , if DRM set “ON”, but the logic interface un-connected to the switch or the switch is open, the inverter HMI will display “Limit by DRM”... -
Page 24: Dsp Update
7. Normal operation 7. Normal operation 7.5.17 I/V Curve Selecting “Fan Test” displays the sub-menu shown below: This function is used to scan the I/V characteristic curves of each PV strings. Set I/V Curve Are you sure? I/V Curve Scan YES=<ENT>... -
Page 25: Afci Function
7. Normal operation 8. Maintenance 7.6 AFCI function Solis inverters have the built-in AFCI function which can detect the arc fault on the DC circuit Solis Three Phase Inverter does not require any regular maintenance. However, and shut down the inverter to prevent a fire disaster. cleaning the dust on heat-sink will help the inverter to dissipate the heat and increase its life time. -
Page 26: Fan Maintenance
8. Maintenance 9. Troubleshooting The inverter is designed in accordance with the most important international grid-tied NOTE: standards and safety and electromagnetic compatibility requirements. Before delivering to If you need to maintain the inverter at night, please turn off the AC switch first, the customer, the inverter has been subjected to several tests to ensure its optimal operation then turn off the DC switch, and wait 5 minutes before you do other operations. -
Page 27: Troubleshooting
9. Troubleshooting 10. Specifications Alarm Message Failure description Solution NOTE Initialization system fault INI-FAULT If the inverter displays any alarm message as listed in Table 9.1, please Comm. failure between main turn off the inverter (refer to Section 6.2 to stop your inverter) and wait for 15 DSP-B-FAULT 1.Restart inverter or contact installer. - Page 28 10. Specifications 10. Specifications Model Solis-100K-5G Model Solis-110K-5G Max. DC input voltage (Volts) 1100 Max. DC input voltage (Volts) 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 180...1000...
- Page 29 10. Specifications 10. Specifications Model Solis-125K-HV-5G Model Solis-50K-LV-5G Max. DC input voltage (Volts) 1100 Max. DC input voltage (Volts) 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 180...1000 180...1000 Max.
- Page 30 10. Specifications 10. Specifications Model Solis-60K-LV-5G Model Solis-100K-5G-SA Max. DC input voltage (Volts) 1100 Max. DC input voltage (Volts) 1100 Rated DC voltage (Volts) Rated DC voltage (Volts) Start-up voltage (Volts) Start-up voltage (Volts) MPPT voltage range (Volts) MPPT voltage range (Volts) 180...1000...
-
Page 31: Appendix
10. Specifications 11. Appendix 11.1 Grid standard selection guide Model Solis-110K-5G-SA Max. DC input voltage (Volts) 1100 NOTE: Rated DC voltage (Volts) Please check if the grid code setting comply with local requirement. Start-up voltage (Volts) MPPT voltage range (Volts) 180...1000 Max. - Page 32 11. Appendix Code in LCD Country/Region Comments G98 NI North Ireland For North Ireland Low Voltage Grid <16A G99 NI North Ireland For North Ireland Low Voltage Grid >16A User-define Customized Protection Limits Gen50 Generator Connected, Frequency-Derating, 50Hz Gen 60 Generator Connected, Frequency-Derating, 60Hz East Denmark For East Danish low voltage grid...
