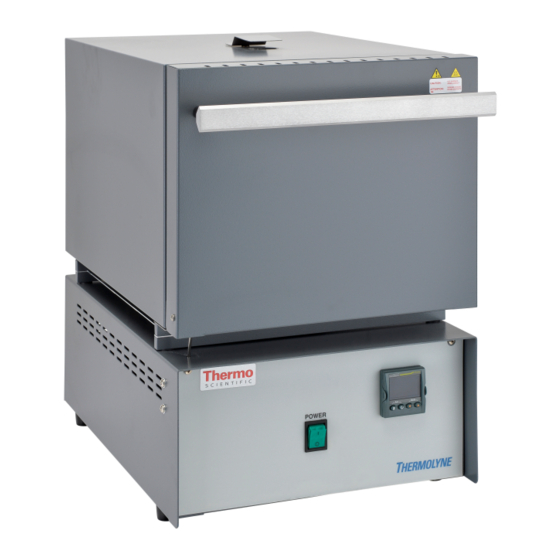

Thermo Scientific
Thermolyne Furnace
Premium Large Muffle/
Atmosphere Controlled Ashing
Model Type: F6000
Installation and Operation Manual
LT1249X1
Rev. J
August, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the thermoscientific F6000 and is the answer not in the manual?

Questions and answers

Related Manuals for ThermoFisher Scientific thermoscientific F6000

Summary of Contents for ThermoFisher Scientific thermoscientific F6000

  • Page 1 Thermo Scientific Thermolyne Furnace Premium Large Muffle/ Atmosphere Controlled Ashing Model Type: F6000 Installation and Operation Manual LT1249X1 Rev. J August, 2022...
  • Page 2 © 2022 Thermo Fisher Scientific Inc. All rights reserved. Thermo Fisher Scientific Inc. provides this document to its customers with a product purchase to use in the product operation. This document is copyright protected and any reproduction of the whole or any part of this document is strictly prohibited, except with the written authorization of Thermo Fisher Scientific Inc.
  • Page 3 Type F6000 Furnace OPERATION MANUAL AND PARTS LIST Series 1249 Single Setpoint Models F6010, F6010CN, F6018 Single Setpoint Models with OTP F6020C, F6020C-33, F6020C-33-60, F6020C-60, F6028C, F6028C-60 8 Segment Programmable Models with F6020C-33-60-80, F6020C-33-80, F6020C-60-80, F6020C-80, F6028C-60-80, F6028C-80 5 X 16 Segment Programmable Models F6030CM, F6030CM-33, F6030CM-33-60, with OTP &...

  • Page 4: Table Of Contents

    Contents Chapter 1 Safety Information ..........5 Alert Signals .
  • Page 5 Contents Tuning ............25 Chapter 8 Single Ramp &...
  • Page 6 Contents Chapter 14 Maintenance and Servicing ........71 To Replace a Heating Element .
  • Page 7 Contents Small Benchtop Muffle Thermo Scientific...

  • Page 8: Safety Information

    Safety Information Contents • “Alert Signals” on page 6 • “Important Information” on page 6 • “Warnings” on page 6 • “Warning” on page 7 Thermo Scientific Premium Large Muffle...

  • Page 9: Alert Signals

    Safety Information Alert Signals Alert Signals Warnings alert you to a possibility of personal injury. Cautions alert you to a possibility of damage to the equipment. Notes alert you to pertinent facts and conditions. Hot surfaces alert you to a possibility of personal injury if you come in contact with a surface during use or for a period of time after use.

  • Page 10: Warning

    Safety Information Warning 3. Always wear safety glasses or a safety shield and high temperature gloves when loading or unloading the furnace. Long sleeved, fire retardant clothing and a fire retardant apron is also recommended. Warning This warning is presented for compliance with California Proposition 65 and other regulatory agencies and only applies to the insulation in this product.
  • Page 11 Safety Information Warning Premium Large Muffle Thermo Scientific...

  • Page 12: Introduction

    Introduction Contents • “Intended Use” on page 10 • “General Usage” on page 10 • “Principles of Operation” on page 10 Thermo Scientific Premium Large Muffle...

  • Page 13: Intended Use

    Introduction Intended Use Do not exceed operating temperatures shown in ““General Specification” page 9.” Exceeding these limits will result in severely reduced element life. Intended Use The Type F6000 furnaces are general purpose laboratory and heat treating furnaces. For optimum element life, we recommend observing these temperature ranges: from 100°C (212°F) to 1093°C (2000°F) continuous use or from 1093°C (2000°F) to 1200°C (2192°F) for intermittent use.

  • Page 14: General Specification

    General Specification For F6000 Furnace Models F6020C F6028C F6010 F6018 F6020C-33 F6028C-60 F6010CN F6020C-33-60 F6028C-60-80 F6020C-33-60- F6038CM F6038CM-60 F6020C-33-80 F6020C-60 F6020C-60-80 F6020C-80 F6030CM F6030CM-33-6 F6030CM-60 Dimensions in Overall Width 19.25(48.9) 19.25(48.9) 19.25(48.9) 19.25(48.9) (cm) Height 21 (53.3) 21 (53.3) 21 (53.3) 21 (53.3) Depth 20 (50.8)

  • Page 15: Environmental Conditions

    General Specification Environmental Conditions Models 4400 4000 3095 2325 Watts 50/60 50/60 50/60 50/60 Freq. Phase 212-2192°F 212-2192°F 212-2192°F 212-2192°F Oper. °F (°C) Temp.Range (100-1200°C) (100-1200°C) (100-1200°C) (100-1200°C) *212-1787°F *212-1787°F (*100-975°C) (*100-975°C) The maximum ramp rates for this furnace for heat up are: 12°C (22°F) per min. from 25°C-537°C (75°F-1000°F), 10°C (18°F) per min.

  • Page 16: Chapter 4 Unpacking

    Unpacking (-60) models are supplied with two stainless steel trays, handle and porcelain pegs. The Type 6000 furnaces do not come with a power cord because current requirements are too great to be handled by ordinary power cords and standard wall supply.
  • Page 17 Unpacking Premium Large Muffle Thermo Scientific...

  • Page 18: Installation

    Installation Contents • “Site Selection” on page 16 • “Electrical Connections” on page 16 • “Electrical Conditions in the EU” on page 17 Thermo Scientific Premium Large Muffle...

  • Page 19: Site Selection

    Installation Site Selection Be sure ambient temperature does not exceed 40°C (104°F). Ambient above this level may result in damage to the controller. Allow at least six inches of space between the furnace, at least 40 inches above the furnace and any combustible surface. This permits the heat from the furnace case to escape so as not to create a possible fire hazard.

  • Page 20: Electrical Conditions In The Eu

    Installation Electrical Conditions in the EU Electrical Conditions in the EU Electrical Conditions for operating the furnaces in the EU: The furnaces are intended for use at a network supply with a maximum system impedance of Zmax= 0.0229 ohm at the point of connection, according to EN 61000-3-11 clause 6.2.2. The user has to ensure that the device is operated on a network supply that meets these requirements.
  • Page 21 Installation Electrical Conditions in the EU Premium Large Muffle Thermo Scientific...

  • Page 22: Operation, All Models

    Operation, All Models Contents • “Power Switch” on page 20 • “Cycle Light shown on the display” on page 20 • “Door Safety Switch” on page 20 Thermo Scientific Premium Large Muffle...

  • Page 23: Power Switch

    Operation, All Models Power Switch To avoid personal injury do not use in the presence of flammable or combustible chemicals; fire or explosion may result. This device contains components which may ignite such materials. Caution: Avoid Contact. To avoid burns, this furnace must not be touched on the exterior or interior surfaces during use or for a period of time after use.

  • Page 24: Single Setpoint Models W/Otp

    Single Setpoint Models w/OTP Contents • “Eurotherm 3216 Controller Operation” on page 22 • “Basic Operation” on page 22 • “Buttons and Indicators” on page 23 • “To change the Setpoint” on page 23 • “To View the Display Units” on page 23 •...

  • Page 25: Eurotherm 3216 Controller Operation

    Single Setpoint Models w/OTP Eurotherm 3216 Controller Operation Eurotherm 3216 Controller Operation The single setpoint model w/OTP furnace controller is a single setpoint controller, which provides a single digital display to indicate the current chamber temperature or setpoint temperature. This temperature controller features sensor break protection, self-tuning capability and over temperature protection (OTP) with an additional OTP relay device.

  • Page 26: Buttons And Indicators

    Single Setpoint Models w/OTP Buttons and Indicators Buttons and Indicators OP1 (Output 1): Illuminates when the output is ON (normally heating). The cycle light on the display will turn on and off as the furnace reaches the setpoint. OP2 (Output 2): Illuminates when the output is ON (normally cooling). OP4 (Output 4): Illuminates when the AA relay output is ON (will go on during an alarm situation).

  • Page 27: Alarms

    Single Setpoint Models w/OTP Alarms TM.CFG: Timer configuration. TM.RES: Timer Resolution (minutes and hours). THRES: Timer start threshold (default is OFF). END.T: Timer End Type (default is DWELL). Pid List Pb: Proportional band (in display units). ti: Integral time in seconds. td: Derivative time in seconds.

  • Page 28: Tuning

    Single Setpoint Models w/OTP Tuning Tuning This controller incorporates a self-tuning feature, which determines the optimum control parameters for the best temperature accuracy with your load and setpoint. Use this feature the first time you use your furnace and each time you change either your setpoint or the type of load you are heating. Thermo Fisher Scientific recommends you use this feature to provide the best temperature accuracy the controller can attain.
  • Page 29 Single Setpoint Models w/OTP Tuning Premium Large Muffle Thermo Scientific...

  • Page 30: Single Ramp & Dwell

    Single Ramp & Dwell Contents • “Functions” on page 28 • “Program Overview” on page 29 • “SetPoint Rate Limit Setup” on page 30 • “Running the Program” on page 30 • “Holding the Program” on page 30 • “Stopping the Program” on page 30 •...

  • Page 31: Functions

    Single Ramp & Dwell Functions Functions This type of controller has two step ramp and dwell programming capabilities. The Ramp and Dwell can be configured to three different modes. 1. Mode 1 (DWELL) The dwell time begins once the setpoint reaches the set threshold. The END TYPE action is executed when the dwell timer reaches the end.

  • Page 32: Program Overview

    Single Ramp & Dwell Program Overview 3. Mode 3 (SF.ST) Starts automatically on power up. This is a soft-start function. If the PV is below the Soft Start Threshold, then the power is limited to the Soft Start Limit until the threshold is met.

  • Page 33: Setpoint Rate Limit Setup

    Single Ramp & Dwell SetPoint Rate Limit Setup The above four options is to set what is expected of the unit to do once the program is complete. For example, if it is desired for the controller to stop doing anything at all once the timer is finished, set End.T to OFF.

  • Page 34: Verifying A Running Program

    Single Ramp & Dwell Verifying a Running Program Verifying a Running Program Press the SCROLL button until “T.SAT” is displayed. The display will show “run” if the program is running, “hold” if it is paused or “res” if it is not running. Press the PAGE button to display Actual temperature.
  • Page 35 Single Ramp & Dwell Verifying a Running Program Premium Large Muffle Thermo Scientific...

  • Page 36: Segment & 5X16 Segment Programmable Models W/Otp

    8 Segment & 5x16 Segment Programmable Models w/OTP Contents • “Eurotherm 3216 Controller” page 34 • “Operator Interface & HOME Display” page 35 • “Beacon Display and Description” page 35 • “Operator Buttons” page 36 • “Single Set Point Operation” page 36 •...

  • Page 37: Eurotherm 3216 Controller

    8 Segment & 5x16 Segment Programmable Models w/OTP Eurotherm 3216 Controller Eurotherm 3216 Controller The Eurotherm 3216c and 3216p temperature controllers sense the furnace's chamber air temperature (the PV or process value) and provides the heat needed to reach the required set point. There are two choices of controls used in the various furnaces models: The 3216c controller is a basic single setpoint and Timer (1-program 8-segment or Dwell timer or Delay timer).

  • Page 38: Operator Interface & Home Display

    8 Segment & 5x16 Segment Programmable Models w/OTP Operator Interface & HOME Display Operator Interface & HOME Display When the controller is turned ON, it will perform a brief self-test and then display the HOME Display page. The measured value (process value) is found in the upper display and the set point is found in the lower display.

  • Page 39: Operator Buttons

    8 Segment & 5x16 Segment Programmable Models w/OTP Operator Buttons Operator Buttons Press to select a new list of parameters and from any display - press PAGE to return to the HOME Page Press to select new parameter from the page header. If held down it will con- tinuously scroll through parameters.

  • Page 40: Alternate Set Point Selection (Sp2)

    8 Segment & 5x16 Segment Programmable Models w/OTP Alternate Set Point Selection (SP2) Alternate Set Point Selection (SP2) 1. Press the SCROLL button from HOME display until SP.SEL is displayed. 2. Press UP or DOWN button to select SP1 or SP2. If SP2 is selected, then SPX beacon will appear on the HOME display indicating the action of alternate set point in use.

  • Page 41: View Or Change The Display Units

    8 Segment & 5x16 Segment Programmable Models w/OTP View or Change the Display Units Complete the following steps to change the ramp rate of SSP. 6. Press the SCROLL button until SP.RAT is displayed. 7. Press UP or DOWN button until the desired ramp rate is indicated on the display. The unit of ramp rate depends on the type of ramp unit RAMPU selected.

  • Page 42: Auto Tuning

    8 Segment & 5x16 Segment Programmable Models w/OTP Auto Tuning d. (NONE): No units displayed e. (PERC): Percent NOTE Do not use nonE & PErc, they are used to measure other applications types other than temperature. Auto Tuning In Auto Tuning the characteristics (PID parameters) of the controller are matched to the characteristics of the product load in order to obtain good control.

  • Page 43: Parameter List

    8 Segment & 5x16 Segment Programmable Models w/OTP Parameter List 4. To enable the auto-tune, set the A.TUNE parameter to ON by using DOWN or UP button. 5. Press the PAGE button to return to the HOME display. The display will flash TUNE to indicate that tuning is in progress.
  • Page 44 8 Segment & 5x16 Segment Programmable Models w/OTP Parameter List Operator Level 2 Operator Level 2 provides access to additional parameters and this access is protected by a security code. The Level 2 access should typically be granted to a specially trained person, since changing parameters can have major impact on the temperature performance of the furnace.

  • Page 45: Offset Procedure

    8 Segment & 5x16 Segment Programmable Models w/OTP Offset Procedure To Return to Level 1 1. Press and hold PAGE button to show the current operator level. 2. Press UP DOWN button to select LEv 1. When Level 1 is selected the display reverts to the HOME display. A passcode is not required when moving from a higher level to a lower level.

  • Page 46: Alarms & Diagnostics

    8 Segment & 5x16 Segment Programmable Models w/OTP Alarms & Diagnostics To Apply an Offset Connect the input of the controller to the source device which you wish to calibrate to. Set the source to the desired calibration value. The controller will display the current measurement of the value. If the display is correct, the controller is correctly calibrated and no further action is necessary.

  • Page 47: Sensor Break & Loop Break Protection

    8 Segment & 5x16 Segment Programmable Models w/OTP Sensor Break & Loop Break Protection Sensor Break & Loop Break Protection Sensor Break Protection - The controller provides sensor break protection in the event the thermocouple opens. If an open thermocouple condition occurs, the digital display will blink “S.br”, a red alarm beacon will be illuminated and the power to the heating element will be shut off.
  • Page 48 8 Segment & 5x16 Segment Programmable Models w/OTP Over-Temperature Protection (OTP) Program/Timer Segment Types In program ON condition each segment consists of a controlled ramp rate to a target set point followed by a dwell at that set point. These values can be set by the user. a.

  • Page 49: 1-Program 8-Segment Controller Operation

    8 Segment & 5x16 Segment Programmable Models w/OTP 1-Program 8-Segment Controller Operation d. Dwel The set point remains constant for a specified period at the specified target. The operating set point of a dwell is inherited from the previous segment. Remaining Time Time remaining before the dwell segment completes.
  • Page 50 8 Segment & 5x16 Segment Programmable Models w/OTP 1-Program 8-Segment Controller Operation The 8-segment programmable 3216c controller consists of microprocessor based three-mode PID (Proportional, Integral and Derivative) and appropriate output switching devices to control the furnace. The programmable controller can be used as a single set point controller or as a programmable controller.

  • Page 51: Soft Start Timer

    8 Segment & 5x16 Segment Programmable Models w/OTP Soft Start Timer Value of Value of Parameter Description Level Access CN71X318 CN71X322 CTRL.LoopBreakTime Derivative Time Level 2 Read/Write CTRL.LoopBreakTime Loop Break Time Level 2 Read/Write OFF (0) OFF (0) INPUT.PVOffset PV Offset Level 2 Read/Write COMMS.Address...

  • Page 52: Delayed Switch On Timer

    8 Segment & 5x16 Segment Programmable Models w/OTP Delayed Switch On Timer Soft Start Power Limit The soft start function limits the power delivered to the heater until it has warmed up. The SS.PWR is the power limit applied until the PV reaches the SS.SP or the timer has elapsed. Delayed Switch On Timer The timer is used to switch on the controller output power after a fixed length of time.
  • Page 53 8 Segment & 5x16 Segment Programmable Models w/OTP Delayed Switch On Timer Timer Start Threshold A single threshold value is available to provide a holdback on the entry to the dwell part of the ramp/dwell pair. It holds back the dwell until the PV has reached the band defined by +/- threshold around the PV.
  • Page 54 8 Segment & 5x16 Segment Programmable Models w/OTP Delayed Switch On Timer End Type parameter The action which occurs at the end of program or in reset depends on the configuration of the ‘END.T’ parameter. The ‘END.T’ can be: OFF : The heating is turned OFF. dwEll : Controls at last program setpoint.
  • Page 55 8 Segment & 5x16 Segment Programmable Models w/OTP Delayed Switch On Timer 3. Now set the threshold by pressing SCROLL button to select ‘THRES’. Press UP DOWN button to adjust the value (In this example, the dwell periods will not start until the PV is within 5 units of the set point).
  • Page 56 8 Segment & 5x16 Segment Programmable Models w/OTP Delayed Switch On Timer To Operate the Programmer Operation Action Indication To Run a program Press and quickly Beacon RUN = On Scrolling display - TIMER RUNNING release To Hold a program Press and quickly Beacon RUN = Flashing Scrolling display - TIMER HOLD...

  • Page 57: 5-Program 16-Segment Controller Operation

    8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation AUTO/MAN/OFF: (Auto/Manual/OFF Mode) CAUTION : Thermo Fisher Scientific does not recommend to use controller in MANUAL mode or OFF mode, as Manual mode can damage the unit or cause over-heating without care or proper operation.
  • Page 58 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation Table :2 Parameter Description and Accessibility in 3216p Value of Value of No Parameter Description Level Access CN71X319 CN71X320 RES (0) RES (0) PROGRAMMER.Status Program Status Level 1 + 2 Read/Write PROGRAM- Time Remaining...
  • Page 59 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation Value of Value of No Parameter Description Level Access CN71X319 CN71X320 OFF (0) OFF (0) PROGRAM- Program Ramp Rate 5 Level 2 Read/Write MER.Ramp5 PROGRAM- Program Dwell 5 Duration Level 2 Read/Write OFF (0)
  • Page 60 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation The holdback will only apply once per Segment, therefore when control has been reestablished, the holdback will not apply again to that segment, even if the furnace or oven temperature go outside the holdback band.
  • Page 61 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation rES : Reset on completion and reverts to SP1 or SP2, based on the Setpoint selection. Scroll through parameters in Level 2 and set the required ‘END.T’ by pressing To Configure the Programmer 1.
  • Page 62 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation 8. To set the first Dwell, press SCROLL button to select ‘DWEL.1’. Press DOWN or UP button to set the value. 9. Now repeat the above three steps (6, 7 & 8) to set remaining all segments. NOTE •...
  • Page 63 8 Segment & 5x16 Segment Programmable Models w/OTP 5-Program 16-Segment Controller Operation NOTE • The program ramp rate is designed to reduce the heating rate or cooling rate that the furnace normally exhibits. When not using this feature, the furnace will operate at its maximum heating and cooling capability.

  • Page 64: Chapter 10 Communication Option

    Communication Option The factory installed optional RS 485 Digital Communications Port allows controller to be connected to a PC for remote monitoring and control of the furnace. The equipment with communication option (COM) is equipped with two DB9 serial ports (1 Male port & 1 Female port). These ports are intended for connection to the PC or a Laptop &...

  • Page 65: Rs 485 Pinout & Connections

    Communication Option RS 485 Pinout & Connections RS 485 Pinout & Connections The furnace is provided with a communication cable for connecting the furnace to the RS 485 adapter. The communication cable consists of DB9 connector at both ends. Use the accessory Cable # 7233 for serial communication.

  • Page 66: Chapter 11 Installation And Operation Of Air Control

    Installation and Operation of Air Control Installation Compressed Air Hook-Up 1. A 0.250 inch tube fitting is located at the rear of the furnace. 2. Using 0.250 inch I.D. rubber tubing, connect a piece of tubing from this input fitting to a corresponding 0.250 inch fitting located on the regulated side of a pressurized air service line.

  • Page 67: Operation

    Installation and Operation of Air Control Operation Target SP value is 750°C (Dwell 2) value is 120 minute (Ramp 3) value is END (4 program models) Cycles value is 1 Included with this furnace are two stainless steel trays which will hold crucibles of quartz jars. Use the appropriate side for the type of crucible you are using.
  • Page 68 Installation and Operation of Air Control Operation If the furnace is to be used regularly, the airline regulator may be left open to 30 psi. A flow rate of 40 to 45 liters per minute will provide three air exchanges of the chamber per minute.
  • Page 69 Installation and Operation of Air Control Operation Premium Large Muffle Thermo Scientific...

  • Page 70: Chapter 12 Furnace Loading

    Furnace Loading For best results, use only the center two-thirds of the furnace chamber. Do not overload your furnace chamber. If the load is to be heated uniformly, it should not occupy more than two-thirds of the furnace chamber. Failure to observe this caution could result in damage to furnace components.
  • Page 71 Furnace Loading Premium Large Muffle Thermo Scientific...

  • Page 72: Chapter 13 Preventive Maintenance

    Preventive Maintenance Disconnect from the power supply prior to maintenance and servicing. This unit is equipped with a venting system on the top of the furnace. This is for the removal of fumes from the chamber of the unit. Contamination is a major cause of element failure, therefore, removes all fume forming material before heating.
  • Page 73 Preventive Maintenance General Cleaning Instructions Premium Large Muffle Thermo Scientific...

  • Page 74: Chapter 14 Maintenance And Servicing

    Maintenance and Servicing Contents • “To Replace a Heating Element” on page 72 • “To Replace a Platinel II Thermocouple” on page 72 • “To Replace a Chromel/Alumel Thermocopule:” on page 72 • “To Replace Solid State Relay:” on page 73 •...

  • Page 75: To Replace A Heating Element

    Maintenance and Servicing To Replace a Heating Element To Replace a Heating Element Replace fuses with same type and rating. Perform only maintenance described in this manual. Contact an authorized dealer or our factory for parts and assistance. 1. Disconnect furnace from power supply. 2.

  • Page 76: To Replace Solid State Relay

    Maintenance and Servicing To Replace Solid State Relay: 3. Remove clip holding thermocouple in place (1 screw) and remove the two screws on the thermocouple terminals. 4. Remove the thermocouple. Pull thermocouple straight out of hole in the chamber first to avoid damage to the insulation.

  • Page 77: To Realign Door Strike

    Maintenance and Servicing To Realign Door Strike 8. To realign door switch see “To Realign Door Switch” section. 9. Slide control section back in and replace the screws described in Step 2. 10. Reconnect to power supply. 11. Test operation of door switch. (See “To Realign Door Switch” section.) To Realign Door Strike 1.

  • Page 78: Chapter 15 Troubleshooting

    Troubleshooting The Troubleshooting section is intended to aid in defining and correcting possible service problems. When using the chart, select the problem category that resembles the malfunction. Then proceed to the possible cause’s category and take necessary corrective action. Problem Probable Causes Corrective Action The furnace is not connected to power supply.
  • Page 79 Troubleshooting Door switch does not Door switch is not functioning. Re-align or replace door switch. cut power to the Mechanical relay contacts sticking. Replace relay. furnace chamber. Chamber improperly loaded. See loading procedures in start-up procedure. Chamber improperly loaded. Enclose material in container. Clean up spills on chamber.

  • Page 80: Chapter 16 Replacement Parts List

    Replacement Parts List Listed below is the common replacement parts for all models of the 6000 furnace. The far left column contains the letter designation found on the circuit diagrams. Be sure to identify the correct part number with respect to the exact model number found on your furnace. REPLACEMENT PART DESCRIPTION MODELS USED ON...
  • Page 81 Replacement Parts List REPLACEMENT PART DESCRIPTION MODELS USED ON RYX57 Relay All models except F6010, F6010CN, F6010-33, F6018 RYX34 Solid State Relay All models SWX143 Power Switch All models SW1172X1 Micro Switch All models except F6010, F6010CN, F6018 SWX163 Micro Switch (2) F6010, F6010CN, F6018 TC1249X1 Thermocouple, Type K...

  • Page 82: Chapter 17 Ordering Procedures

    Ordering Procedures Please refer to the Specification Plate for the complete model number, serial number, and series number when requesting service, replacement parts or in any correspondence concerning this unit. All parts listed herein may be ordered from the Thermo Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory.
  • Page 83 Ordering Procedures Premium Large Muffle Thermo Scientific...

  • Page 84: Chapter 18 Wiring Diagrams

    Wiring Diagrams Contents • “Single Setpoint Control” on page 82 • “Single Setpoint Control w/OTP” on page 83 • “8 Segment Programmable control” on page 84 • “5 X 16 Segment Programmable control” on page 85 Thermo Scientific Premium Large Muffle...

  • Page 85: Single Setpoint Control

    Wiring Diagrams Single Setpoint Control Single Setpoint Control Premium Large Muffle Thermo Scientific...

  • Page 86: Single Setpoint Control W/Otp

    Wiring Diagrams Single Setpoint Control w/OTP Single Setpoint Control w/OTP Thermo Scientific Premium Large Muffle...

  • Page 87: Segment Programmable Control

    Wiring Diagrams 8 Segment Programmable control 8 Segment Programmable control Premium Large Muffle Thermo Scientific...

  • Page 88: 5 X 16 Segment Programmable Control

    Wiring Diagrams 5 X 16 Segment Programmable control 5 X 16 Segment Programmable control Thermo Scientific Premium Large Muffle...
  • Page 89 Wiring Diagrams Premium Large Muffle Thermo Scientific...

  • Page 90: Chapter 19 Regulatory Compliance

    Regulatory Compliance Product Safety This product family has been tested to all applicable US and Canadian product standards by CSA, a Nationally Recognized Test Laboratory (NRTL). Electromagnetic Compatibility FCC Statement (USA) Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 91: Additional Regulations & Markings

    Regulatory Compliance Additional Regulations & Markings Evaluation of Chemicals - Regulations and Directives Proposition 65 WARNING: This product can expose you to chemicals including refractory ceramic, refractory ceramic fiber or fiberglass insulation, and crystalline silica which are known to the State of California to cause cancer and/or silicosis. For more information go to www.P65Warnings.ca.gov.
  • Page 92 Regulatory Compliance Additional Regulations & Markings • Dibutyl phthalate (DBP) (0.1 %) • Diisobutyl phthalate (DIBP) (0.1 %) Our compliance is witnessed by written declaration from our suppliers and/or component testing. This confirms that any potential trace contamination levels of the substances listed above are below the maximum level set by the latest regulations or are exempt due to their application.
  • Page 93 Regulatory Compliance WEEE Compliance WEEE Compliance WEEE Compliance. This product is required to comply with the European Union’s Waste Great Britain Electrical & Electronic Equipment (WEEE) Directive 2012/19/EU. It is marked with the following symbol. Thermo Fisher Scientific has contracted with one or more recycling/disposal compa- nies in each EU Member State, and this product should be disposed of or recycled through them.

  • Page 94: Weee Compliance

    Important For your future reference and when contacting the factory, please have the following information readily available: Model Number: Serial Number: Date Purchased: The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (manufacturer or specific agent/rep organization), and purchase order number.
