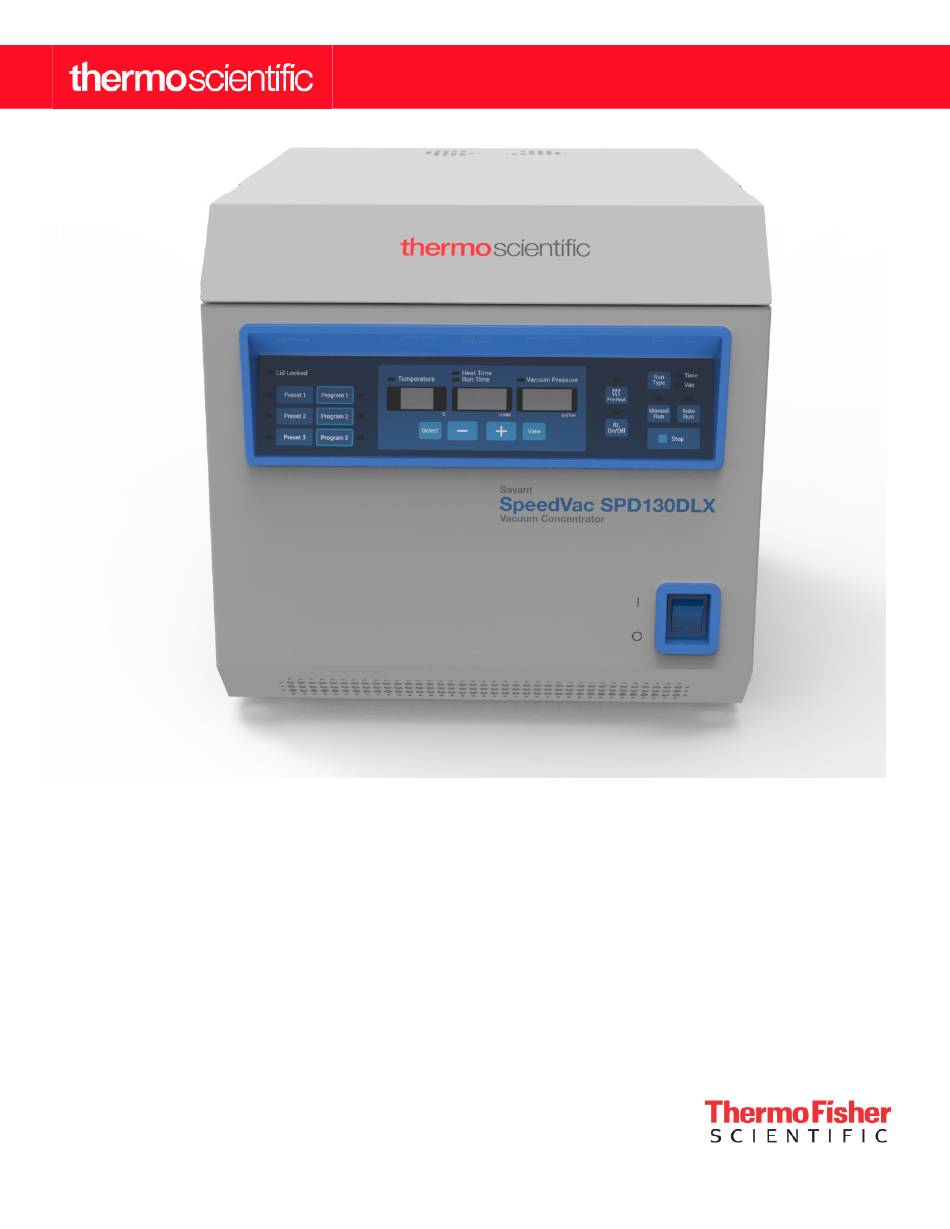

- Page 1 SpeedVac™ SPD130DLX Vacuum Concentrator Installation and Operation 80302133 • Revision A • July 2018...
- Page 2 IMPORTANT: Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the product, injury to operating personnel, and poor equipment performance. CAUTION: All internal adjustments and maintenance must be performed by qualified service personnel. DISCLAIMER: Thermo Fisher Scientific Inc.
-
Page 3: Table Of Contents
Contents Introduction ..............1 Safety Precautions ............2 Operating Standards............ 3 Product Specifications ..........3 Environmental Conditions......... 3 Installation..............4 Contents ..............4 Installation of SPD130DLX........4 Operation..............5 Description Of Control Panel ........5 Manual Run.............. 7 Auto Run - Time............8 Auto Run - Vacuum.......... -
Page 4: Introduction
Introduction Thermo Scientific Savant SpeedVac™ SPD130DLX vacuum concentrator offers fast, reliable processing of samples. It effectively removes a broad range of aggressive and volatile solvents to concentrate or dry solutes, analytes and residues while providing complete sample recovery. The combination of vacuum, applied to the sample chamber from an external source, and centrifugal action promotes solvent evaporation without sample loss due to foaming or bumping. -
Page 5: Safety Precautions
Safety Precautions In this manual, the following symbols and conventions are Below are important safety precautions that apply to this used: product: This symbol when used alone indicates WARNING: Disconnect the unit from all power important operating instructions which reduce sources before cleaning, troubleshooting, or the risk of injury or poor performance of the unit. -
Page 6: Operating Standards
Operating Standards Product Specifications Operative Power* 115 VAC; 60 Hz; 6 amps 230 VAC; 50 Hz; 3 amps ® Vacuum Chamber TEFLON coated chemical resistant aluminum casting Cover Heated cover with radiant lamps - includes a safety interlock Induction Motor Maintenance free Bearings Standard... -
Page 7: Installation
Installation Contents WARNING: Before connecting the unit to an electrical outlet, make certain that voltage, frequency, and amperage match the Table 1. Contents requirements indicated on the product label, name plate of the instrument. Use sockets with a Qty. Description protective earth conductor and correct mains cable. -
Page 8: Operation
Operation Connect the power cord to the power inlet on the back of the Rotor installation. Open the lid of the rotor chamber. unit and plug it into the appropriate outlet. Turn on the main Visually align the pin on the drive shaft with the groove on the power switch located on the front of the unit in the lower right bottom of the rotor. - Page 9 3. Program buttons - 3 programs that are modifiable. 10. View - During a run, pressing view shows the set run parameters. When no run is ongoing, pressing view Loading a user defined program is achieved by pressing displays the actual live parameters. The time display the corresponding Program button.
-
Page 10: Manual Run
Audible Notification • Load a preset program • Load a user defined program The concentrator will play tones depending on the user • Directly modify values that are loaded on the user actions. Below is a description of these tones. interface, using the Select button and the “+”/ “-”... -
Page 11: Auto Run - Time
display will revert temporarily to set points for approximately 5 Auto Run - Vacuum seconds. 1. Refer to the “Manual Run” section for start-up. Auto Run - Time 2. To execute an Automatic Vacuum run, execute the following steps: a. Select the Run Type as “Vac” 1. -
Page 12: Preset Program Settings
drying. To ensure against over drying of samples, and located on the rear panel of the unit and is connected to a possible denaturing, it is recommended that the “Heater” computer via a standard USB type A to B cable. timer and the Radiant heat be set for only a portion of the total run time (e.g., 50%-75% of total run time). -
Page 13: Hyperterminal Configuration
HyperTerminal Configuration 1. Power up the host computer and close any running applications. 2. Open the HyperTerminal application by clicking on Start \ “Programs” \ “Accessories” \”Communications” \ “HyperTerminal.” Figure 3. Lid stay mechanism view 3. In the “Connection Description” box, enter the name “SPD130DLX”... - Page 14 CAUTION: CAUTION: Product Maintenance: Maintenance of product only permitted to be List of Solvent and Solvent Combinations: performed by trained service staff using suitable measuring and auxiliary equipment as well as detailed service instruction. Solvent & Solvent Combination Water+ACN+MeOH+low concentration of formic CAUTION: Wear gloves, eye protection, masks acid(1%) and lab coats while working on the system.
-
Page 15: Rotors
Rotors Traditional Rotors for SPD130DLX Vacuum Concentrator Sample Format Working Traditional Rotor Number Description Type Volumes (ml) Model 1.2 - 1.6 1.5 -2.0 ml RH40-11 1.2 - 1.6 1.5 -2.0 ml RH64-11 MICROCENTRIFUGE TUBES 1.2 - 1.6 1.5 -2.0 ml RH120-11 17 X 60 mm (5 ml) RH10-15... - Page 16 Part No. Description ANT100 Post-trap assembly for Oligo Preps - Used on UVS850DDA only ANS121 Ammonia neutralizing solution for Oligo Preps - Used on UVS850DDA only SCT120 Chemical trap (order cartridges separately) DTK120R Chemical trap kit for radioactivity (compatible with all Thermo vacuum concentrator products) DC120A Disposable cartridge for neutralizing acid DC120R...
-
Page 17: Additional Spd130Dlx System Setup
Appendix 1 Additional SPD130DLX System Setup ANT100 Vacuum Tubing Exhaust recovery To Pump Post trap Vacuum Tubing From Cold Trap to Back of SPD130DLX SpeedVac Concentrator SPD130DLX UVS850DDA Vacuum Tubing From Back of SPD130DLX To Cold Trap Figure 5. Semi-Integrated System Vacuum Tubing DVG50 VPOF110... -
Page 18: Warranty
Warranty All Thermo Fisher Scientific products mentioned in this manual (excluding glassware) are warranted against defects in workmanship for one year after the date of delivery to the original purchaser. This warranty is limited to defective materials and workmanship and does not cover incidental or consequential damages. - Page 19 WEEE Compliance WEEE Compliance. Products with this symbol are required to comply with the European Union’s Great Britain Waste Electrical & Electronic Equipment (WEEE) Directive 2012/19/EU. Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
- Page 20 IF YOU NEED ASSISTANCE: Thermo Fisher Scientific products are backed by a global technical support team ready to support your applications. Visit www.thermofisher.com/ or call: Countries Sales Services North America +1 866 984 3766 (800) 438-4851 India 1800 22 8374, +91 22 6716 2200 +91 22 6716 2200 China +800 810 5118, +400 650 5118...
