Chapter 2 - Installation
Electrical Installation & Configuration
The wireless MultiModem requires the power supply connection to begin operation. To install the
modem, do the following:
1.

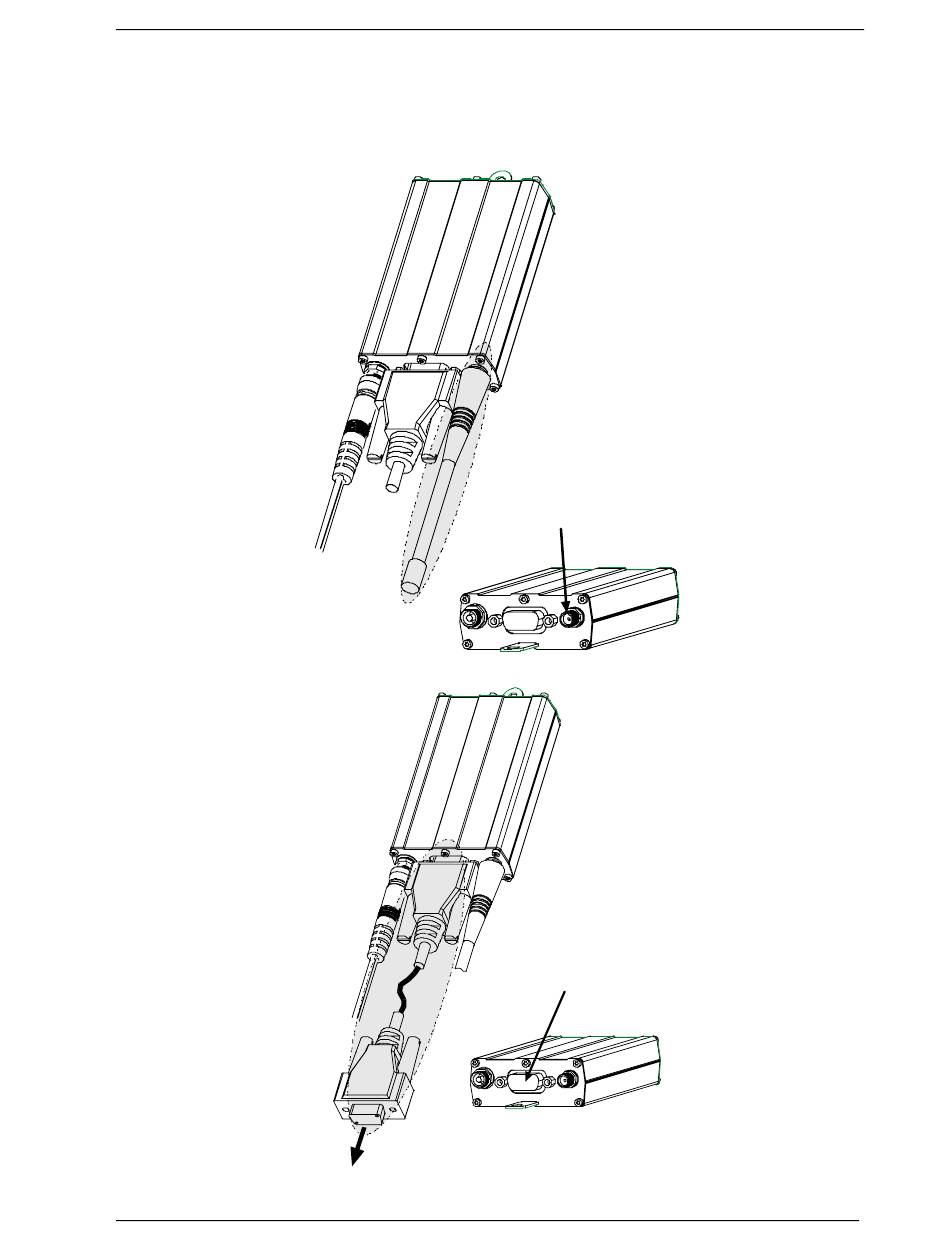

Connect a suitable antenna to the SMA connector (see "Antenna/RF Specifications" on page 4).
Antenna Connector
(SMA type)
2. Connect both ends of the serial and control cable (15-pin Sub D connector on the modem end).
Serial & Control
Connector
To Serial Port
of PC
13
