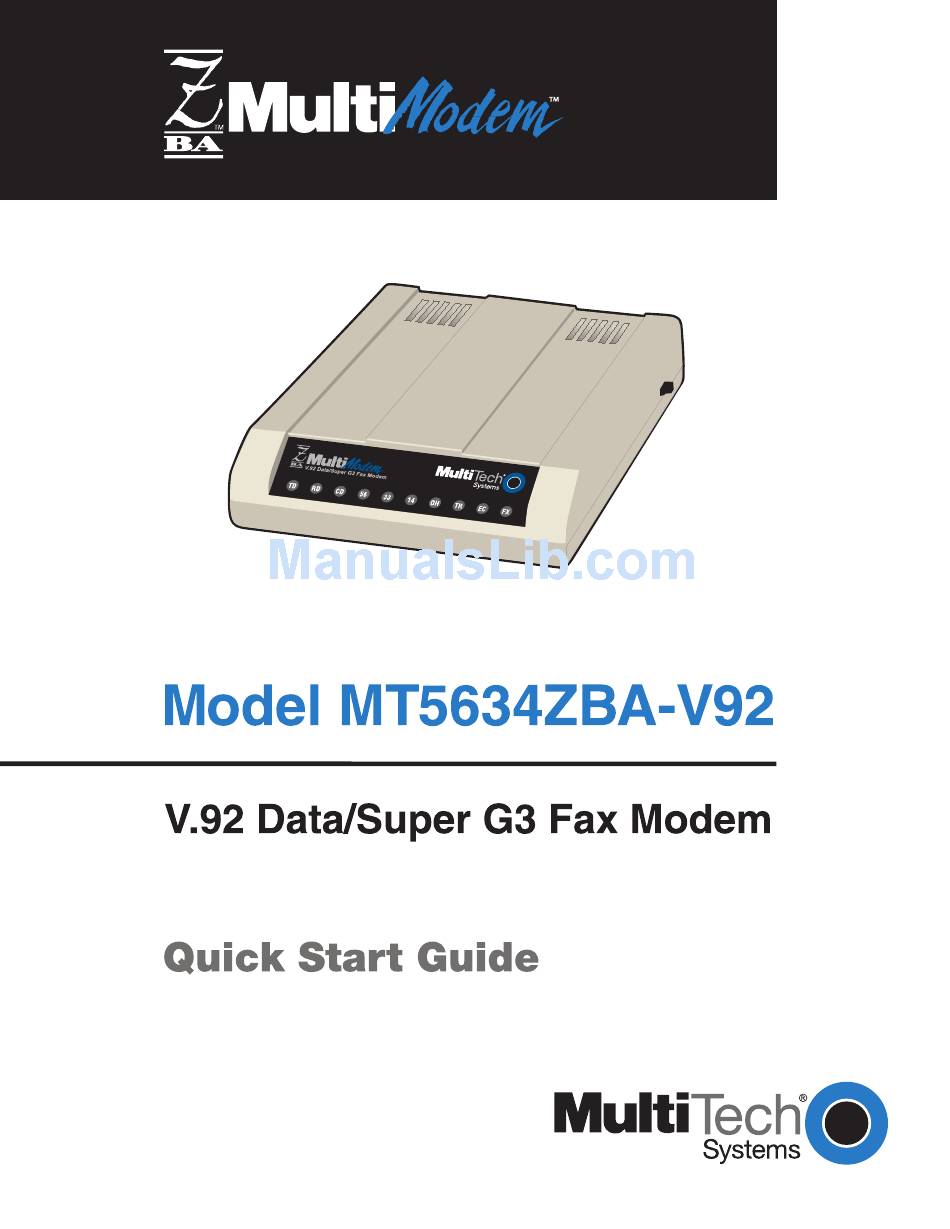

Multi-Tech MT5634ZBA-V92 Quick Start Manual

V. 92 data/super g3 fax modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT5634ZBA-V92 and is the answer not in the manual?

Questions and answers

Related Manuals for Multi-Tech MT5634ZBA-V92

Summary of Contents for Multi-Tech MT5634ZBA-V92

  • Page 2 Notice Though the MT5634ZBA-V92 modem is capable of 56K bps download perfor- mance, line impairments, public telephone infrastructure, and other external technological factors may prevent maximum 56K bps connections.

  • Page 3: Getting Started

    Getting Started Congratulations on your purchase of the MT5634ZBA-V92 modem. You have acquired one of the finest V.92 data/fax modems available today from one of the world’s oldest modem manufacturers: Multitech Systems, Inc. This Quick Start Guide will help you install and set up your modem.
  • Page 4 MultiModemZBA Quick Start Guide A localization kit is included with the modem in some countries and purchased separately in others. The kit can include any or all of the following items: An RJ-11 telephone cable " An adapter to connect the RJ-11 cable to your local telephone "...

  • Page 5: What You Will Need

    The localization kit order number for your country can be found http://www.multitech.com/GlobalModem/order/localkits.asp If any item is missing, please contact Multi-Tech Systems or your dealer/distributor (see Appendix D of the User Guide for informa- tion on contacting Multi-Tech via telephone, fax, or the Internet).

  • Page 6: Step 1: Mount The Feet

    Figure 2. Mounting the feet Step 2: Change the Internal Jumpers This step is required only if you intend to use the modem on a leased line. For leased line instructions, see the User Guide .

  • Page 7: Step 3: Connect The Modem To Your System

    MultiModemZBA Quick Start Guide Step 3: Connect the Modem to Your System Turn off your computer. Placing the modem in a convenient location, connect it to your computer’s serial port, to the tele- phone line or leased line, to AC power, and, optionally, to your telephone.

  • Page 8: Dial-Up Connection

    MultiModemZBA Quick Start Guide RS232 Connection Plug one end of the serial cable into the RS232 connector on the modem, and the other end into a serial port connector on your computer, such as COM1 or COM2. Dial-Up Connection Plug one end of the modular telephone cable into the modem’s LINE jack, and the other end into a standard telephone wall jack.

  • Page 9: Telephone Connection

    Power-On Test Test the modem by turning it on. When you turn it on, the mo- dem performs a diagnostic self-test, after which the 56 indica- tor should light. If this does not happen, check that the power switch is on, the power supply is solidly connected, and the AC outlet is live.

  • Page 10: Step 4: Install The Modem Driver

    Chapter 8 of the User Guide , “Solving Problems.” 2. In the Install New Modem wizard, select Don’t detect my modem; I will select it from a list, and then click Next. A dialog box with a list of manufacturers and a list of modem models appears.

  • Page 11: Step 5: Configure The Modem For Your Country

    5. A list of modems appears. Select your modem from the list, and then click Next. 6. Select the port the modem is connected to, and then click Next. 7. Windows installs the modem driver and MTMoh program. 8. Click Finish to exit.
  • Page 12 MultiModemZBA Quick Start Guide 4. Select the country in which the modem will be used, and then click Next. 5. Review your choice of country. If it is correct, click Next to configure the modem. 6. When Global Wizard announces that the parameters have been set, click Finish to exit.
  • Page 13 Korea New Zealand Phillipines Poland Singapore South Africa Slovenia All others The complete list of country codes can be found on the Multi- http://www.multitech.com/GlobalModem/config Tech Web site at MultiModemZBA Quick Start Guide AT command (hexadecimal) AT%T19,0,34 (default) AT%T19,0,01 AT%T19,0,25 AT%T19,0,30...

  • Page 14: Step 6: Install And Configure Your Software

    Modem on Hold feature, how to upgrade the modem's firmware, and how to resolve common problems. If you have any prob- lems getting your modem to work, please refer to the User Guide before calling Technical Support (800-972-2439 or 763-785-3500).
  • Page 16 Patents This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289;...
