Chapter 2: Installation

Mechanical Mounting

To mount the Wireless MultiModem, do the following:
1. Obtain mounting screws (two are needed) that are appropriate for the surface on which you will mount the
MultiModem. The mounting screw on the connector end of the unit must have a screw-head no thicker
than 2 mm. The allowable thickness is limited because the screw must fit beneath the RS232 cable. The
allowable thickness of the other screw-head is not limited in this way.

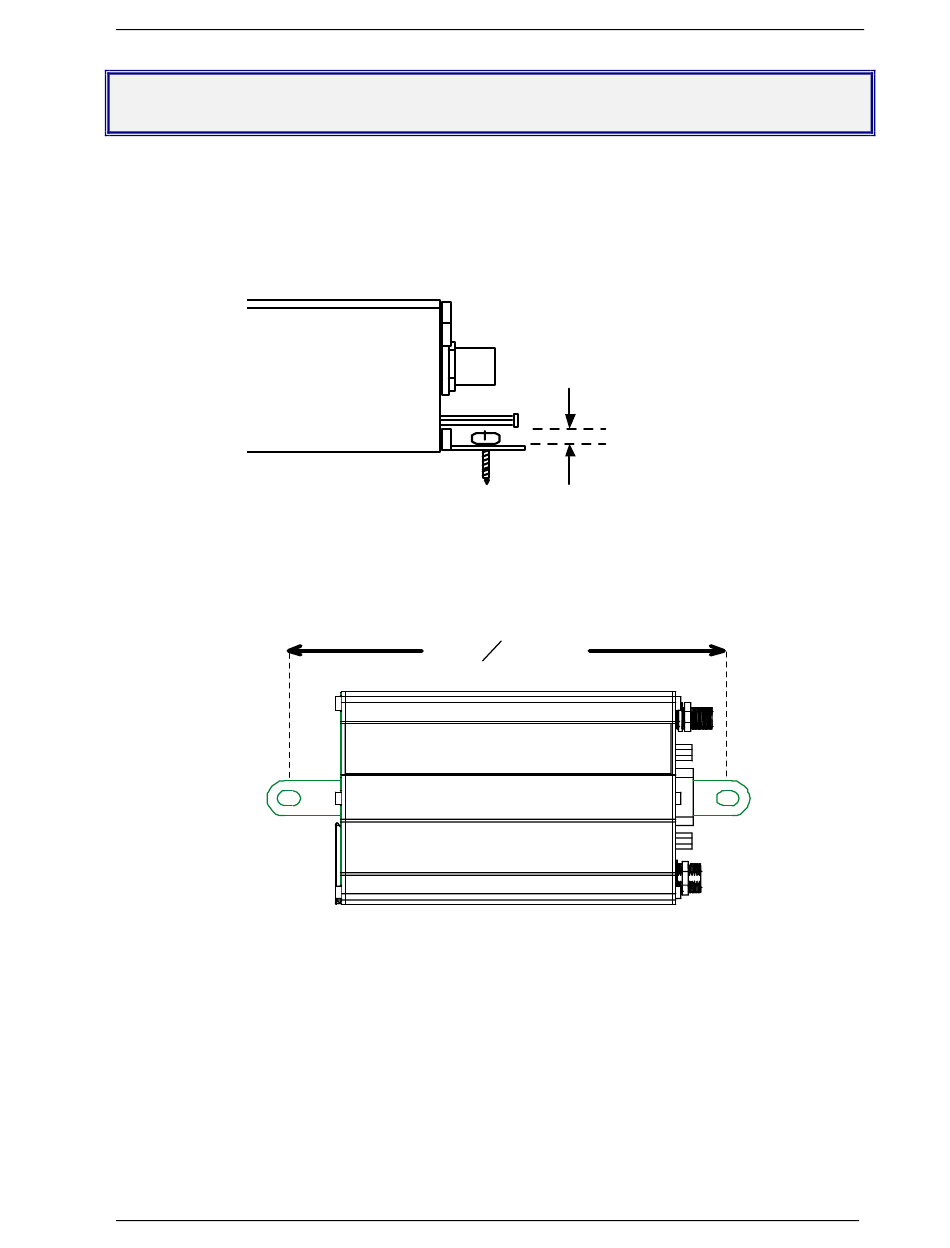

Side View
For example, one might use two 6-32 self-tapping screws 5/8" in length to mount the unit in a truck to the
wall of the cab behind the passenger's seat.
2. Typically, the unit is mounted against a flat surface into which holes can be drilled. The mounting holes
(center-to-center) must be separated by 125mm or 4 -15/16 inches.
Drill the mounting holes at the desired mounting location (if applicable).
Screw Separation
= 125 mm
15
or 4 inches
16
11
Chapter 2 - Installation
Screw Head
Clearance
= 2 mm
