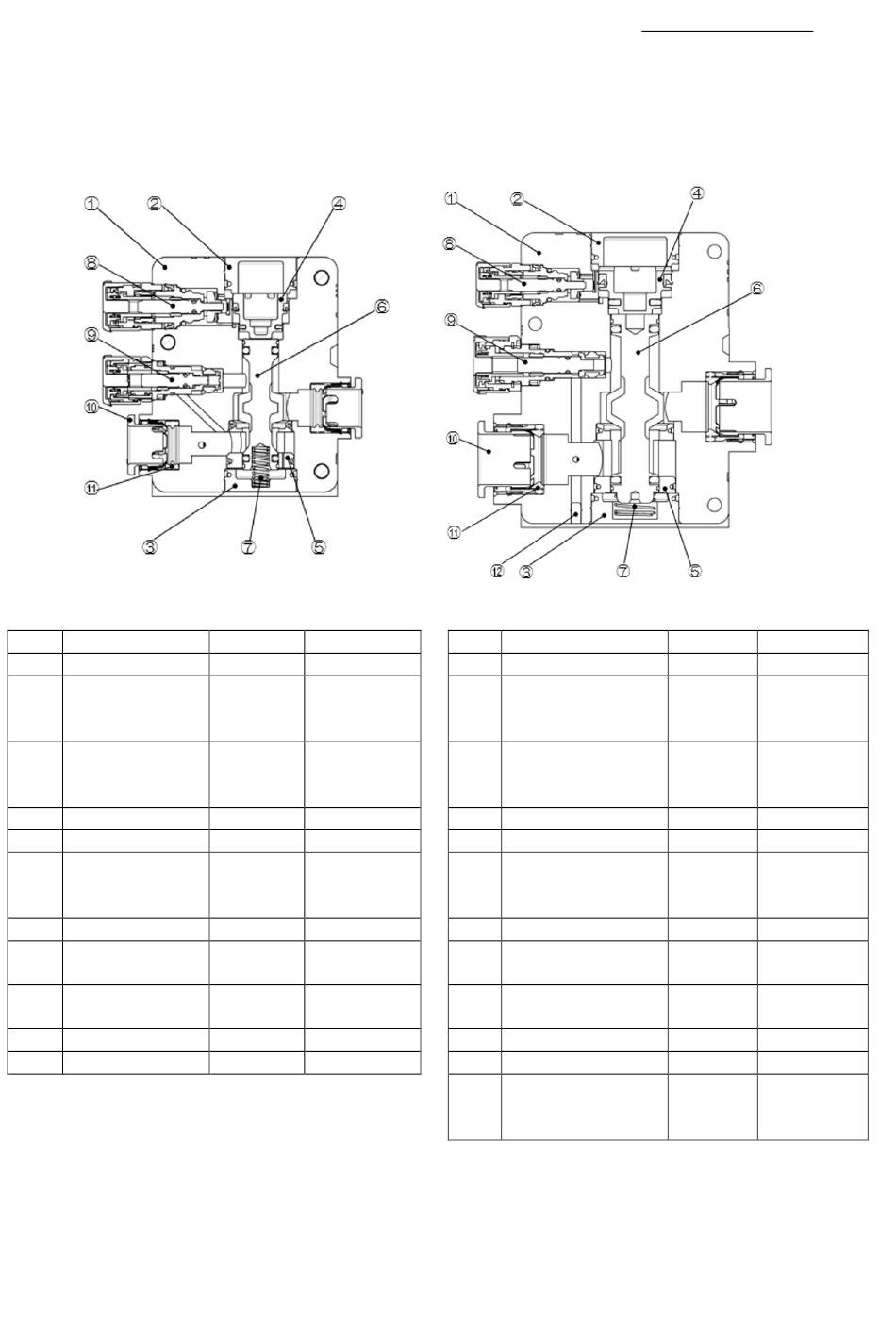

6.Construction
DAS5
Component Parts
No. Description
1 Body
2 Cover A
3 Cover B
4 Piston
5 Retainer
6 Spool Ass'y
7 Spring
Body
8
Ass'y(Timer)
Body
9
Ass'y(Speed)
10 Cassette
11 Seal
Material Note
PBT
Electroless
BRASS nickel
Plated
Electroless
BRASS nickel
Plated
POM
POM
Electroless
- nickel
Plated
SUS
-
-
-
NBR
DAS7
Component Parts
No. Description
1 Body
2 Cover A
3 Cover B
4 Piston
5 Retainer
6 Spool Ass'y
7 Spring
Body
8
Ass'y(Timer)
Body
9
Ass'y(Speed)
10 Cassette
11 Seal
12 Plug
- 16 -
Doc.no.DOC1018150
Material Note
PBT
Electroless
BRASS nickel
Plated
Electroless
BRASS nickel
Plated
POM
POM
Electroless
- nickel
Plated
SUS
-
-
-
NBR
Electroless
Brass nickel
Plated
