GLIDE-N-TWIST RV
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height of
the equipment or consult your surfacing supply representative.

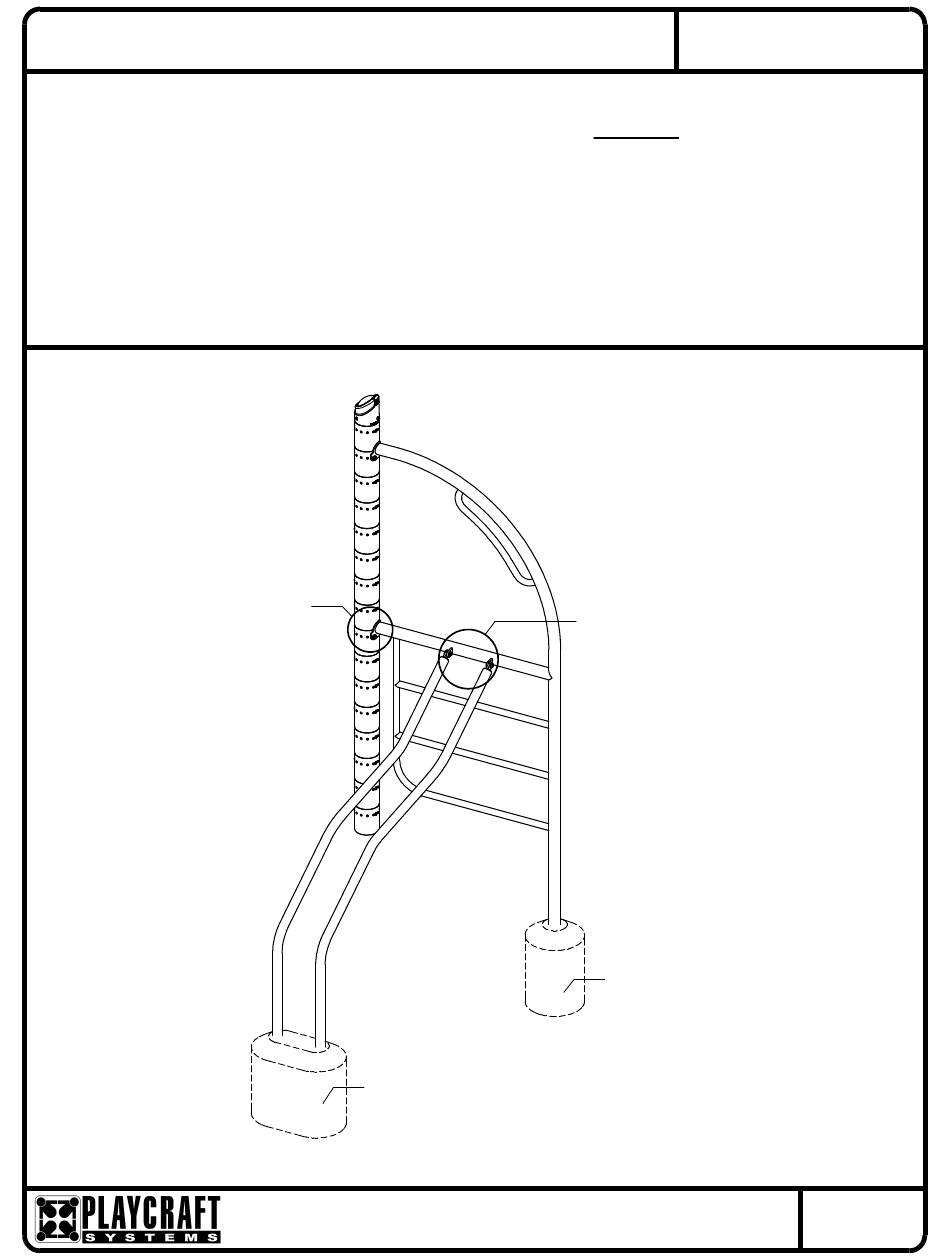

Figure 1.1
®
) with all threaded hardware. Important: Liquid thread lock (prior to
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
Glide-N-Twist
Figure 1.2
See Footing Detail
NOTE: Glide-N-Twist Bend Right
shown. Other configurations will vary
slightly, but does not affect assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
RV-1917
Page 1 of 4
FIGURE 1
Rev B
5/9/2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLIDE-N-TWIST RV-1917 and is the answer not in the manual?

Questions and answers

Summary of Contents for Playcraft GLIDE-N-TWIST RV-1917

  • Page 1 GLIDE-N-TWIST RV RV-1917 INSTALLATION INSTRUCTIONS Page 1 of 4 IMPORTANT NOTES: Read First ® (A) Use liquid thread lock (such as Loctite ) with all threaded hardware. Important: Liquid thread lock (prior to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a lubricant during assembly.
  • Page 2 GLIDE-N-TWIST RV RV-1917 INSTALLATION INSTRUCTIONS Page 2 of 4 Step 1 Footing Detail Refer to Footing Layout and mark footing hole locations. Dig (1) Ø 12" footing hole and (1) 12" x 20" x 18" deep oval footing hole. Refer to Footing Detail for depth and details. * Footing depth must be adjusted to compensate for the depth/thickness "...
  • Page 3 GLIDE-N-TWIST RV RV-1917 INSTALLATION INSTRUCTIONS Page 3 of 4 Step 2 Refer to Footing Detail and remove required Hole Plugs. Place Glide-N-Twist Ladder into footing GLIDE-N-TWIST hole and attach to post as shown in Figure 1.1. LADDER (See Notes A & B) 3/8"...
  • Page 4 GLIDE-N-TWIST RV RV-1917 INSTALLATION INSTRUCTIONS Page 4 of 4 Parts List Specifications GLIDE-N-TWIST LADDER RV: GLIDE-N-TWIST BEND LEFT Shall be fabricated using 2.375" O.D. 11 gauge Part # DESCRIPTION steel tubing and 1.315" O.D. 12 gauge steel handle FS-1916-RLBL Wave Glider Rail Bend Left and rungs with welded 1/4"...
