Playcraft Ramp R5 Installation Instructions Manual

IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for R5-09 Collars assembly instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate for
the fall height of the equipment or consult you surfacing supply representative.
(E)
The Gap Between the Top of the Ramp and the Bottom of the Wall should be no more than 1". Please refer to
the Footing Detail View.

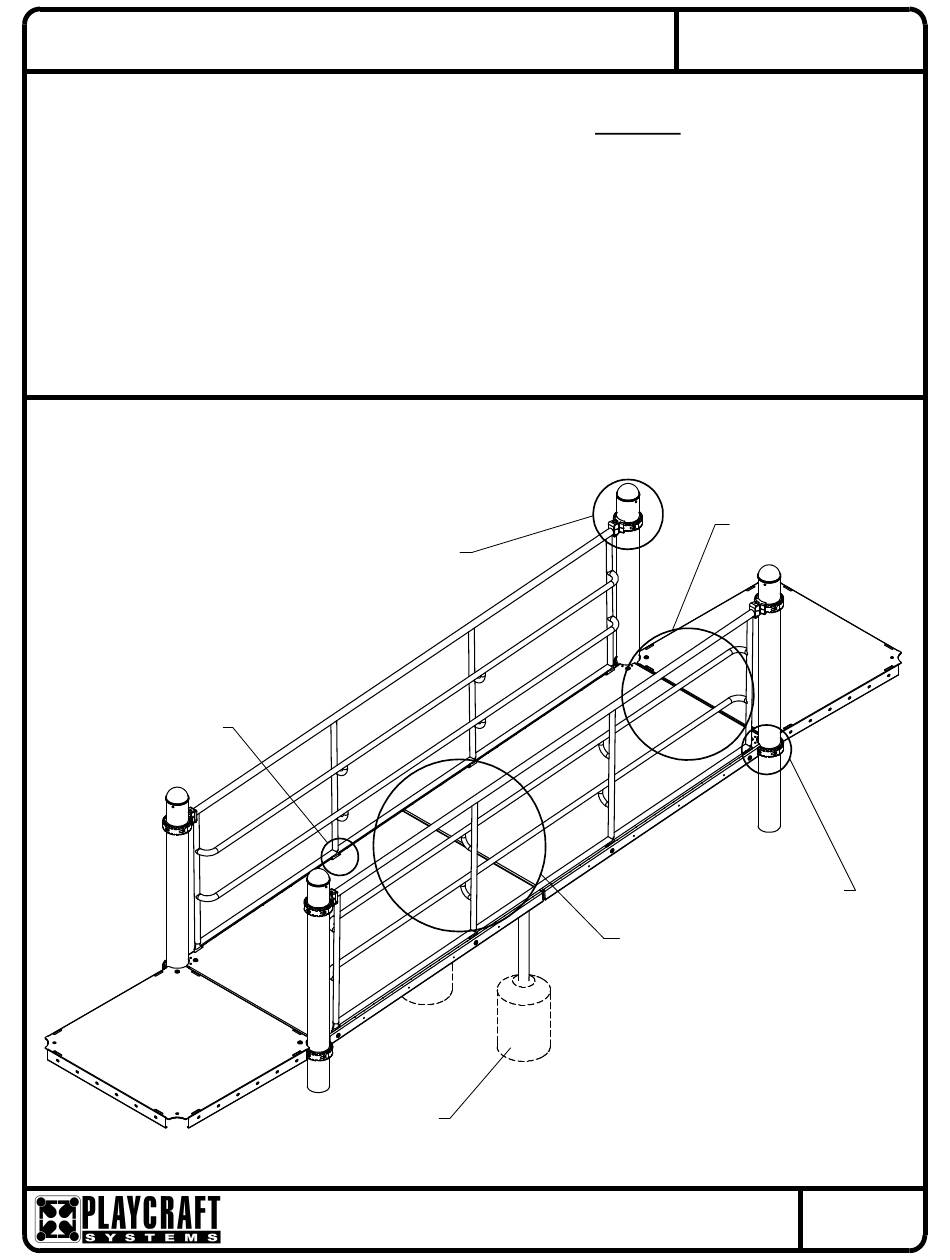

FIGURE 1
Ramp w/ Rails R5
Figure 1.5
RAMP R5
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Figure 1.4
See Installation Manual
Sections R5-09 Collars
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
Figure 1.2
Figure 1.3
NOTE: Ramp with Rails shown.
Ramp with Walls and Flat Ramp
with Walls will vary slightly, but
do not affect the assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
R5-1208
Page 1 of 6
Figure 1.1
Rev G
6/5/2010
