TRI-PAD TRAVERSE RV
INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height of
the equipment or consult your surfacing supply representative.

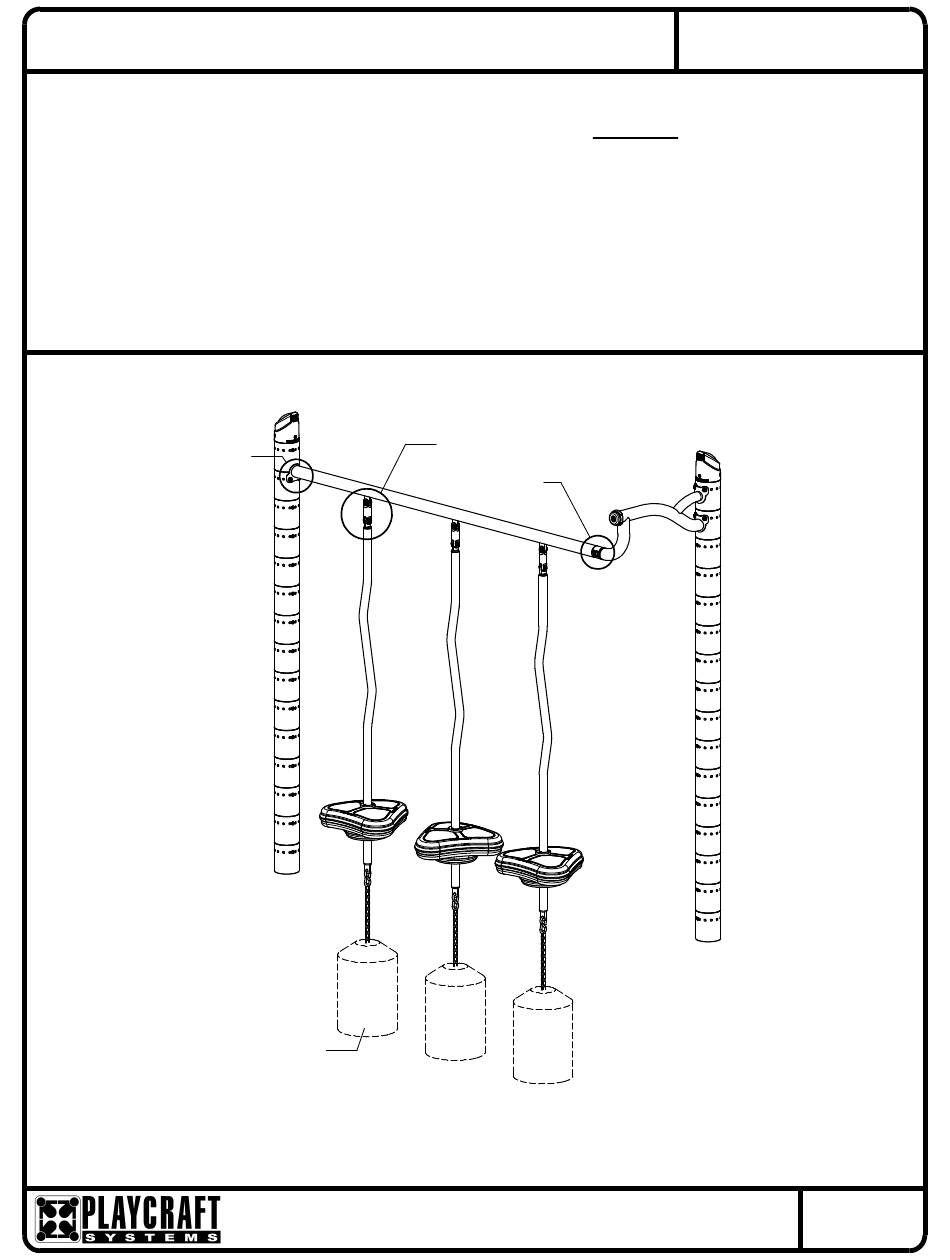

Figure 1.1
See Footing Detail

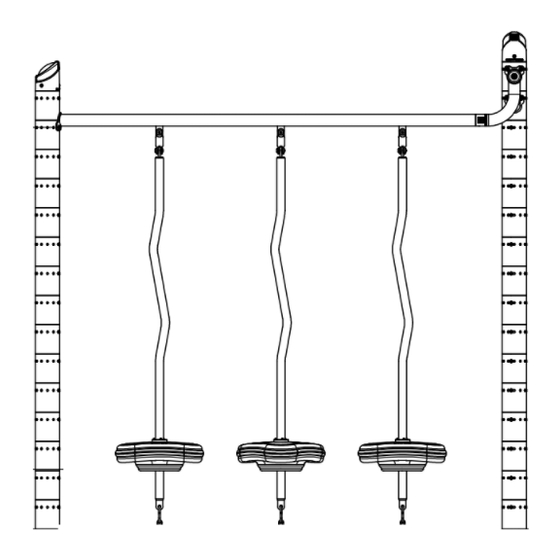

NOTE: Tri-Pad Traverse attached from Post to
Mount Arm shown. Other configurations will
vary slightly, but does not affect assembly.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
Figure 1.3
Figure 1.2
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
RV-1419
Page 1 of 5
FIGURE 1
Tri-Pad Traverse
Rev C
3/30/2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tri-Pad Traverse RV and is the answer not in the manual?

Questions and answers

Summary of Contents for Playcraft Tri-Pad Traverse RV

  • Page 1 TRI-PAD TRAVERSE RV RV-1419 INSTALLATION INSTRUCTIONS Page 1 of 5 IMPORTANT NOTES: Read First ® (A) Use liquid thread lock (such as Loctite ) with all threaded hardware. Important: Liquid thread lock (prior to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a lubricant during assembly.
  • Page 2 TRI-PAD TRAVERSE RV RV-1419 INSTALLATION INSTRUCTIONS Page 2 of 5 Step 1 Footing Detail Refer to Footing Layout and mark footing hole locations. Dig (3) Ø 12" footing holes. Refer to Footing Detail for depth and details. IMPORTANT: For areas with soft soil conditions, larger footings may be required.
  • Page 3 TRI-PAD TRAVERSE RV RV-1419 INSTALLATION INSTRUCTIONS Page 3 of 5 Step 2 (Factory Assembled) #12 x 1-1/2" Refer to Footing Detail and Footing Layout for orientation SQDR PH Screw and attach Tri-Pads to Tri-Pad Traverse Stations as shown in Figure 2. (See Note A)
  • Page 4 TRI-PAD TRAVERSE RV RV-1419 INSTALLATION INSTRUCTIONS Page 4 of 5 Step 4 DISC TRAVERSE BEAM For Beam to Post Connection Refer to Footing Detail and remove required post plugs. Attach Disc Traverse Beam as shown in Figure 1.1. (See Note A) 3/8"...
  • Page 5 TRI-PAD TRAVERSE RV RV-1419 INSTALLATION INSTRUCTIONS Page 5 of 5 Parts List Specifications DISC TRAVERSE BEAM RV: S-1419-RV Shall be fabricated using 2.375" O.D. 10 gauge Part # DESCRIPTION steel tubing with welded 3/8" thick steel tabs and FS-1419-RV Disc Traverse Beam RV 1/4"...
