Playcraft Easy Access Stairs R5 Installation Instructions

EASY ACCESS STAIRS R5

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for R5-09 Collars, R5-11 Socket Clamps and R5-1309 Half Wall assembly
instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.

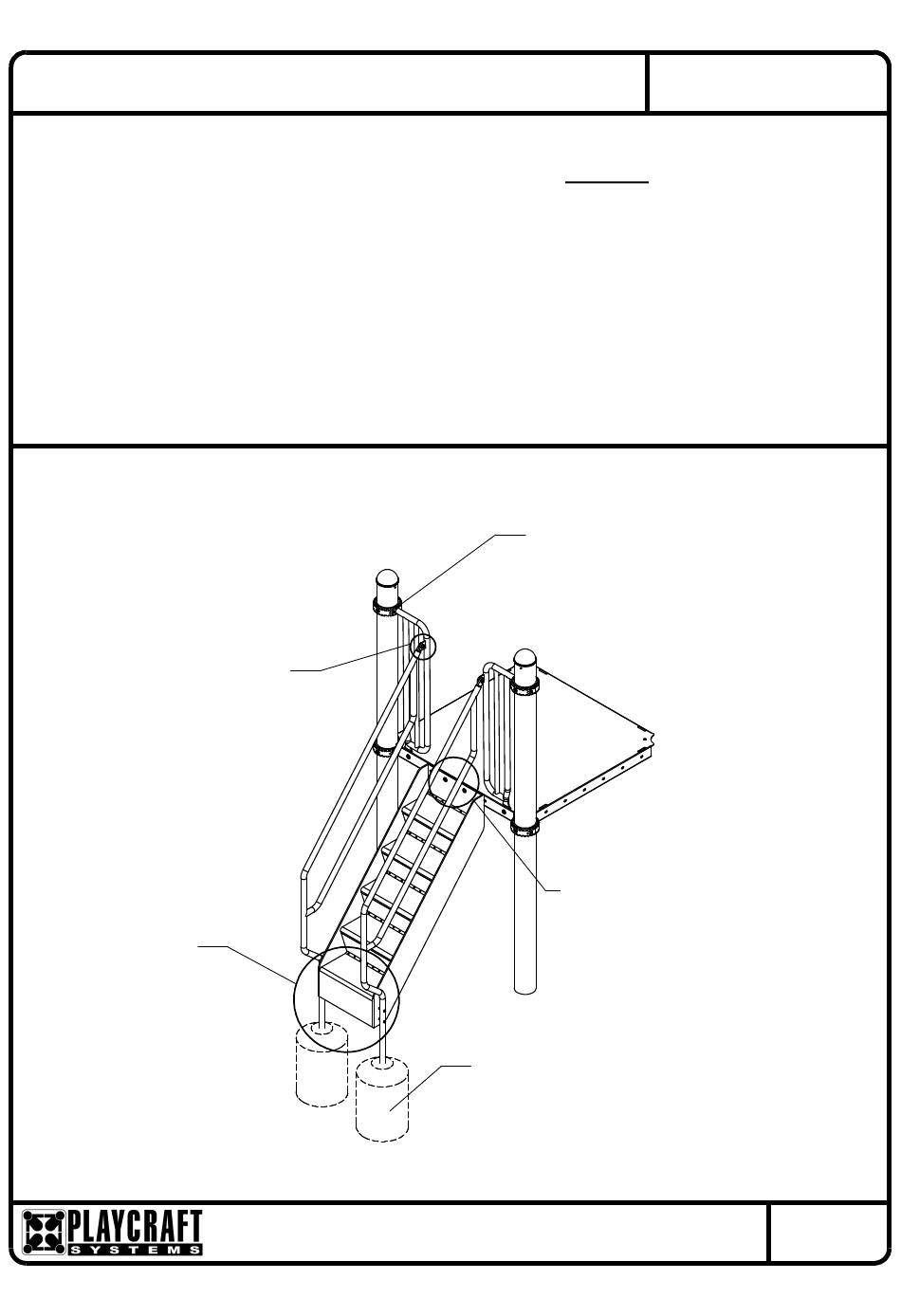

Figure 1.1
Figure 1.3
®
) with all threaded hardware. Important: Liquid thread lock (prior to
FIGURE 1
Easy Access Stairs
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
See Installation Manual Sections
R5-09 Collars and R5-11 Socket Clamps
and R5-1309 Half Walls.
Figure 1.2
See Footing Detail
NOTE: R5-48" stairs shown. 36" &
60" will vary slightly, but will not
affect the assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
R5-1201
Page 1 of 5
Rev G
9/30/2009
