Playcraft Triple Twister Entry Panel R5-1317 Installation Instructions

Table of Contents

Download this manual

TRIPLE TWISTER ENTRY PANEL

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite

curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a

lubricant during assembly.

(B) Refer to Installation Manual for R5-09 Collars, R5-11 Socket Clamps and 1710 Twister Slide assembly

instructions.

See Installation Manual Sections

R5-09 Collars and R5-11 Socket

Clamps and 1710 Twister Slide

assembly instructions

) with all threaded hardware. Important: Liquid thread lock (prior to

Manufactured by Krauss Craft, Inc.

www.playcraftsystems.com

Triple Wave Slide

NOTE: Standard Configuration

shown. Canada configuration

will vary slightly, but does not

affect the assembly.

For Customer Service Call

800.333.8519 (U.S.A.) or

541.955.9199 (International)

R5-1317

Page 1 of 5

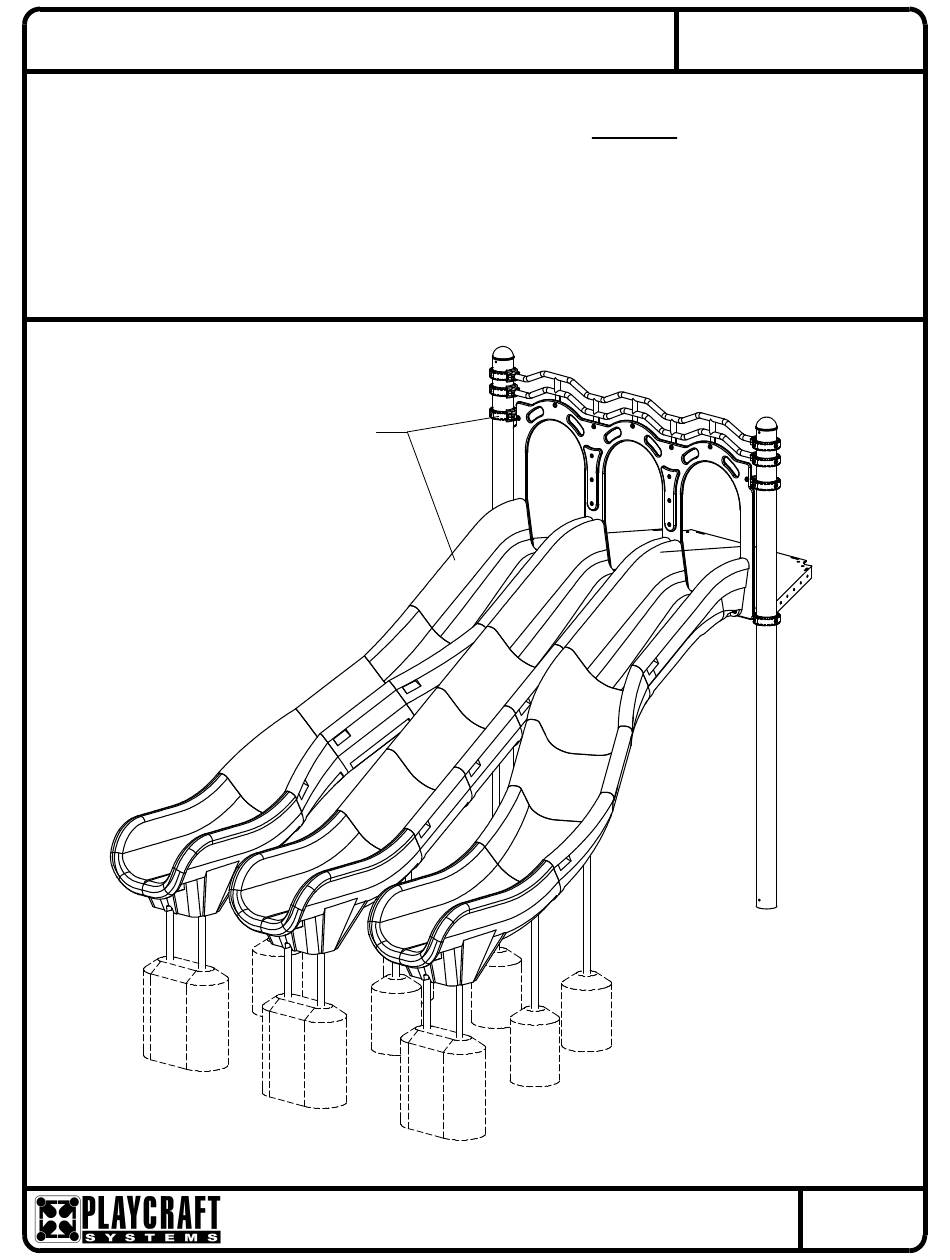

FIGURE 1

Rev A

10/2/2009

Table of Contents

Do you have a question about the Triple Twister Entry Panel R5-1317 and is the answer not in the manual?

Page 1 R5-1317 TRIPLE TWISTER ENTRY PANEL Page 1 of 5 IMPORTANT NOTES: Read First ® (A) Use liquid thread lock (such as Loctite ) with all threaded hardware. Important: Liquid thread lock (prior to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a lubricant during assembly.
Page 2 R5-1317 TRIPLE TWISTER ENTRY PANEL Page 2 of 5 43" 39" 1091mm 33" 990mm 838mm HEAD RAIL FIGURE 2 3/8" x 5/8" Barrel Nut 1/2" SAE Step 1 Washer 3/8" x 1" Button Head Bolt Locate and attach collars at the heights shown in Figure 2.
Page 3 R5-1317 TRIPLE TWISTER ENTRY PANEL Page 3 of 5 Step 3 (Factory Assembled) For Standard R5 Triple Twister Slide Entry Panel Only Attach the Panel Stiffeners as shown in Figure 4. (See Note A) 3/8" x 1-1/2" Button Head Bolt 3/8"...
Page 4 R5-1317 TRIPLE TWISTER ENTRY PANEL Page 4 of 5 HEAD SOCKET RAIL CLAMP TOP SOCKET CLAMP BOTTOM SOCKET CLAMP TOP 1/2" SAE Washer 3/8" x 1-3/8" SOCKET CLAMP Shoulder Bolt BOTTOM TRIPLE TWISTER SLIDE MOUNTING ENTRY PANEL FIGURE 6 Step 5 (Back of Triple Twister Slide Entry Panel) Attach the Triple Twister Slide Entry Panel to...
Page 5 R5-1317 TRIPLE TWISTER ENTRY PANEL Page 5 of 5 Specifications Parts List TRIPLE TWISTER SLIDE ENTRY PANEL AND Triple Twister Entry Panel STIFFENER: Part # DESCRIPTION QTY. Shall be made from high density 3/4" thick hot GF-7007 Mounting Lug R5 extruded polyethylene sheet plastic specially HS-1001-R5 Socket Clamp Set R5...
