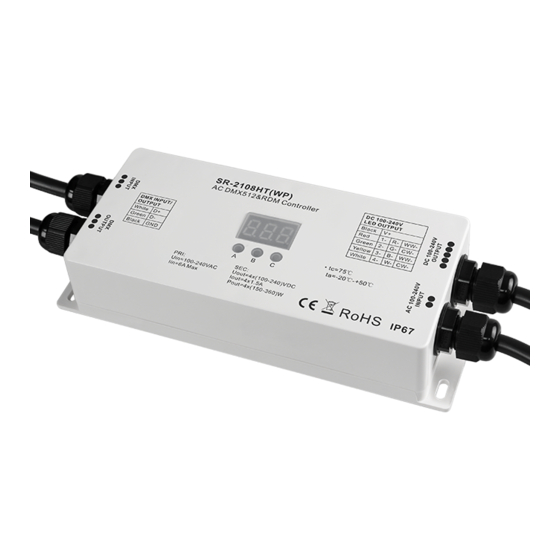

Sunricher SR-2108HT(WP) Quick Start Manual

DMX/RDM High Volt LED Strip Controller
Important: Read All Instructions Prior to Installation

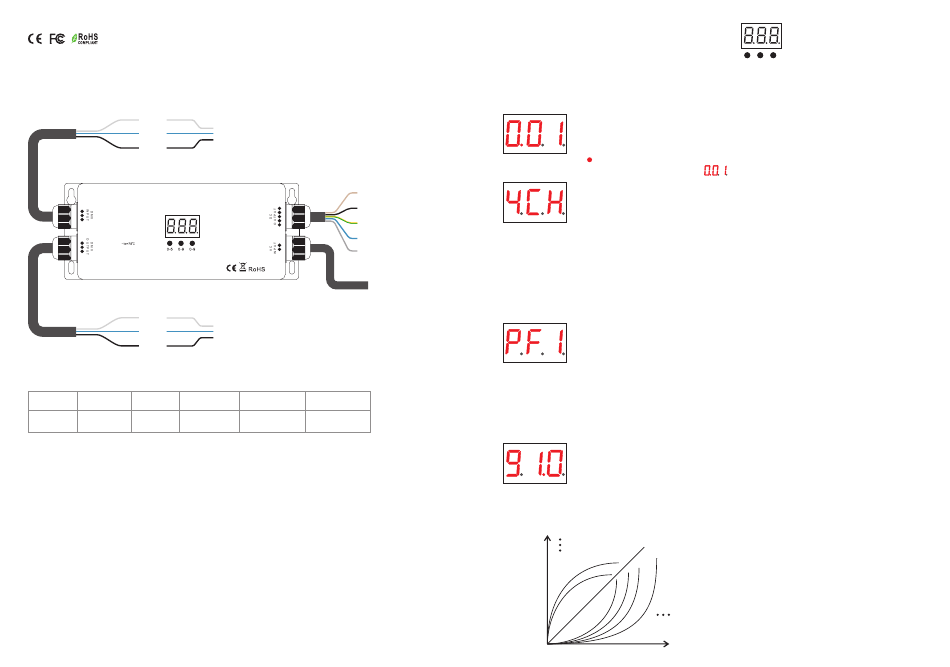

Function introduction
D+
D-
GND
AC DMX512&RDM Controller
DMX INPUT/
OUTPUT
Grey White:D+
Blue:D-
Black:GND
ta:-20℃-+50℃
PRI: SEC:
Uin=100-240VAC Uout=4x(100-240)VDC
Iin=6A Max Iout=4x1.5A
Pout=4x(150-360)W
D+
D-
GND
Product Data
Input
Output Output
Max Load
Voltage Voltage Current
660W@110V
AC 100-240V DC 100-240V Max. 4x1.5A
1320W@220V
• RDM enabled DMX high voltage LED strip controller
• Output for high voltage DC100~240V LED Strip
• Standard DMX512 compliant control interface
• RDM function enabled to realize intercommunication between DMX master and decoder.
• For example, DMX decoder's address can be assigned by DMX master console
• With digital display to show data directly, easily to set and show DMX address.
• Total 4 channels LED output, common anode
• DMX address manually settable
• DMX channel quantity from 1CH~4CH settable
• Output PWM frequency from 500HZ ~ 35K HZ settable, but do not set it higher than 3KHz.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable
• Waterproof grade:IP67
Safety & Warnings
• DO NOT install with power applied to device.
• This device is IP67 rating and protected against damp environment.
DMX512 signal input
Common Anode Output(+)
DC 100-240V
CH 1:R output(-)
LED OUTPUT
Brown :V+
Black :R-
Yellow+Green :G- CH 2:G output(-)
Blue :B-
Grey White: W-
CH 3:B output(-)
CH 4:W output(-)
IP67
AC100-240V
power input
DMX512 signal input
Ambient
Size(LxWxH)
Temp.
180.5x73.6x38mm -20℃-+50℃
Operation
09.218HP.04263
To set desired DMX512 address
button A is to set "hundreds" position,
button B is to set "tens" position,
button C is to set "unit" position.
Set DMX address (Factory default DMX address is 001)
Press and hold down any of the 3 buttons for over 3 seconds, digital display flashes to enter into address
setting, then keep short pressing button A to set "hundreds" position, button B to set "tens" position, button C to
set "units" position, then press and hold down any button for >3 seconds to confirm the setting.
DMX signal indicator
of "hundreds" position of DMX address turns on red
Choose DMX Channel
Press and hold down both buttons B+C simultaneously for over 3 seconds, CH digital display flashes, then
keep short pressing button A to choose 1/2/3/4, which means total 1/2/3/4 channels. Press and hold down
button A for >3 seconds to confirm the setting. Factory default is 4 DMX channels.
For example the DMX address is already set as 001.
1CH=1 DMX address for all the output channels, which all will be address 001.
2CH=2 DMX addresses , output 1&3 will be address 001, output 2&4 will be address 002
3CH=3 DMX addresses, output 1, 2 will be address 001, 002 respectively, output 3&4 will be address 003
4CH=4 DMX addresses, output 1, 2, 3, 4 will be address 001, 002, 003, 004 respectively
Choose PWM frequency
Press and hold down both buttons A+B simultaneously for over 3 seconds, digital display will show PF1, PF
means output PWM frequency, the digit 1 will flash, which means frequency, then keep short pressing button C
to select a frequency from 0-9 and A-J, which stand for following frequencies:
0=500Hz, 1=1KHz, 2=2KHz, ..., 9=9KHz, A=10KHz, B=12KHz, C=14KHz, D=16KHz, E=18KHz, F=20KHz,
H=25KHz, J=35KHz.
Then press and hold down button C for >3 seconds to confirm the setting.
Note: DO NOT set the PWM frequency higher than 3KHz to avoid over heat and damage to the device.
Choose Dimming Curve Gamma Value
Press and hold down all buttons A+B+C simultaneously for over 3 seconds, digital display flashes g1.0, 1.0
means the dimming curve gamma value, the value is selectable from 0.1-9.9, then keep short pressing button B
and button C to select corresponding digits, then press and hold down both buttons B+C for >3 seconds to
confirm the setting.
output
brightness
<1
level
through buttons ,
A B
: When DMX signal input is detected, the indicator on the display following after the digit
.
(Factory default DMX channel is 4CH)
(Factory default PWM frequency is PF1 1KHz)
(Factory default dimming curve value is g1.0)
1.0
0.8
6.5
3.5
0.9 0.9
2.5
gamma
1.5
value
>1
DMX value level
C
