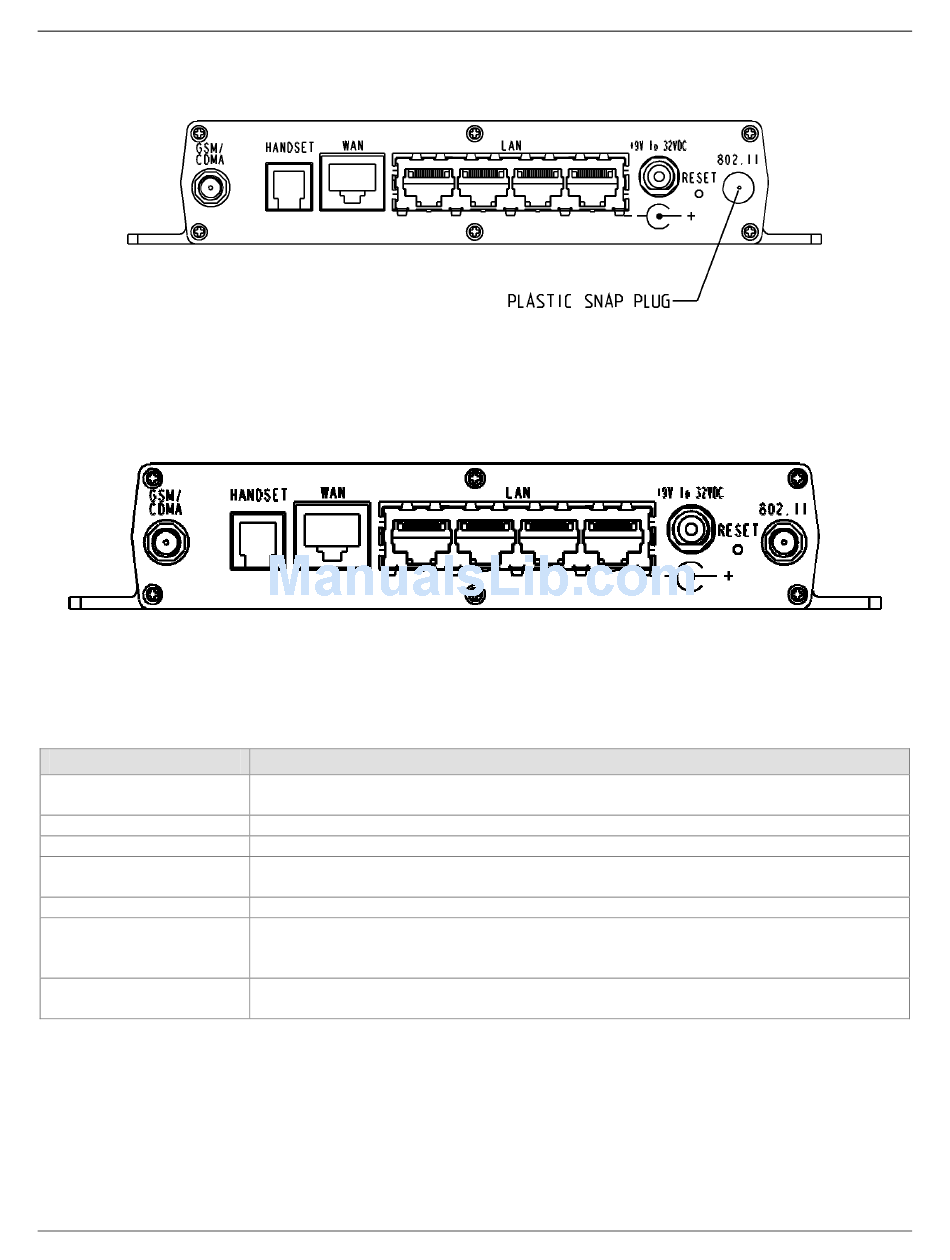

CDMA & EDGE Back Panel
CDMA-AP & EDGE-AP Back Panel

Back Panel Connectors

Connector
GSM/CDMA Antenna
Connector
Handset
WAN
LAN Ports
+9 Volt to 32VDC
Reset
802.11
Multi-Tech Systems, Inc. RouteFinder RF825/RF825-AP User Guide (Document Number S000422B)
Description
Connector for the 2 dbi cellular antenna.
Note: The antenna must be attached in order for the RouteFinder to be operational.
Connector for a handset.
The WAN (10/100BaseT) port connects the DSL modem or cable modem.
There are 4 LAN ports. You can connect to PCs, FTP servers, printers, or other
devices you want to put on your network.
RouteFinder power source can range from 9 volts to 32VDC.
The Reset button resets the RouteFinder to its factory defaults. Press and hold the
Reset button until the Status LED blinks, and then release it. Do not press this
button unless you want to restore all settings to the factory defaults.
2.4 GHz 5dBi SWI-Reverse-F antenna connector.
Note: the antenna must be attached in order for the AP to be operational.
Chapter 1 – Introduction and Product Description
12
