MultiConnect
rCell 100
Series Router User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiConnect rCell 100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Multitech MultiConnect rCell 100 Series

Summary of Contents for Multitech MultiConnect rCell 100 Series

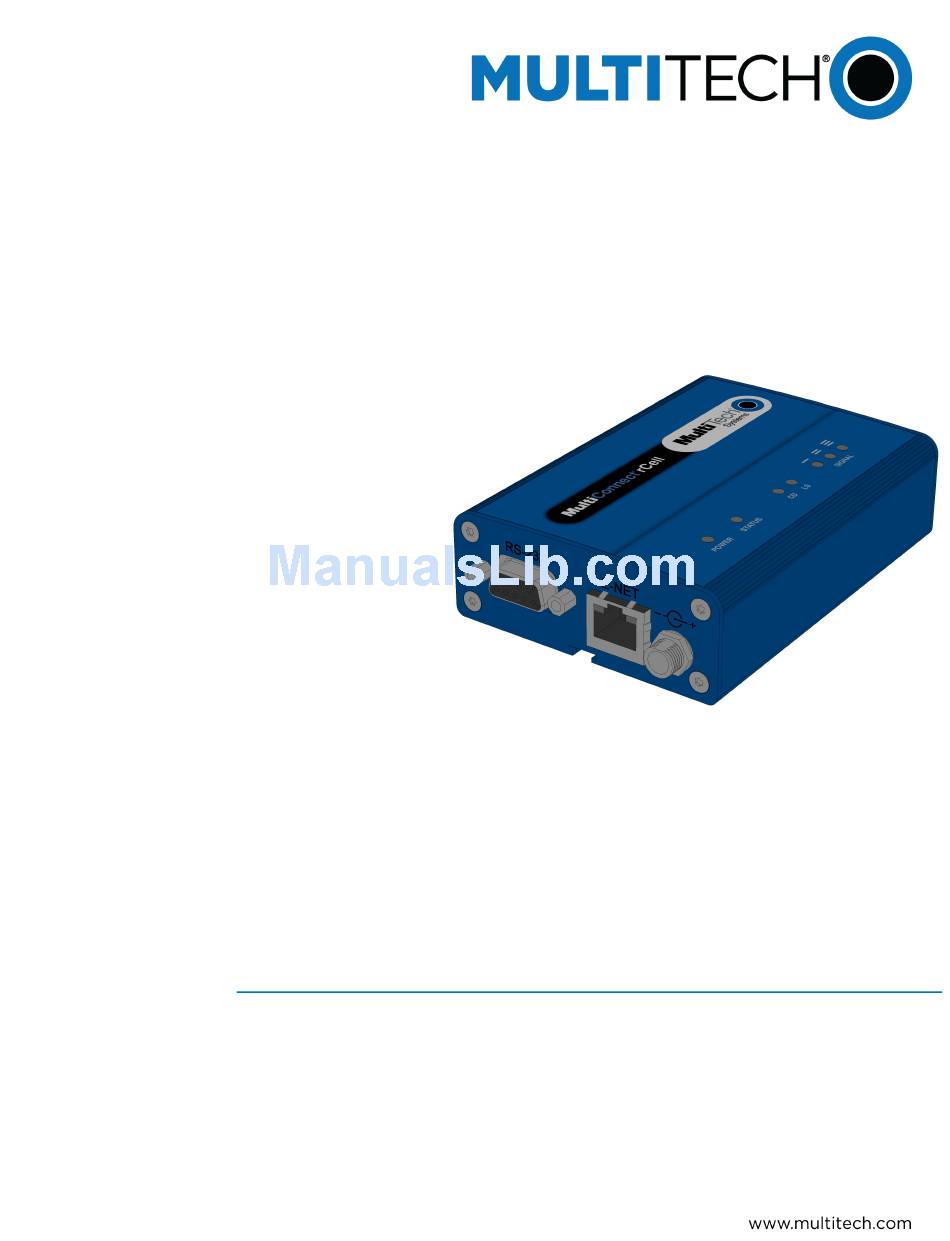

  • Page 1 ® MultiConnect rCell 100 Series Router User Guide...
  • Page 2 Contacting Multi-Tech Knowledge Base The Knowledge Base provides immediate access to support information and resolutions for all Multi-Tech products. Visit http://www.multitech.com/kb.go. Support Portal To create an account and submit a support case directly to our technical support team, visit: https://support.multitech.com.

  • Page 3: Table Of Contents

    CONTENTS Contents Product Overview ..............................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Descriptions of LEDs..............................6 Ethernet LED Descriptions ............................6 Side Panels ..................................7 Specifications ................................8 Dimensions..................................9 Power Draw MTR-EV3..............................10 Safety Warnings..............................11 Lithium Battery ................................
  • Page 4 CONTENTS Regulatory Information............................18 Notice for Devices that Use Aeris Radios........................18 47 CFR Part 15 Regulation Class B Devices ......................... 18 Industry Canada Class B Notice........................... 18 FCC Interference Notice .............................. 19 Restriction of the Use of Hazardous Substances (RoHS) .................... 20 REACH Statement ...............................

  • Page 5: Product Overview

    About MultiConnect rCell 100 Series Router This guide describes the MultiConnect rCell 100 Series router. The rCell family of routers is carrier approved and ready-to-deploy. You can use your device to provide secure data communication between many types of devices that use legacy as well as the latest communication technologies.

  • Page 6: Descriptions Of Leds

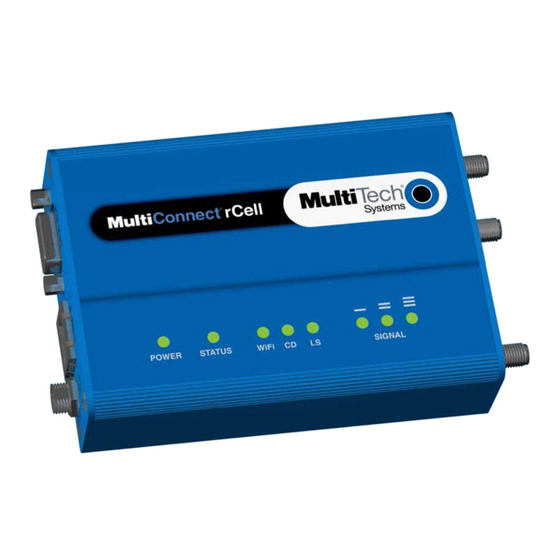

    PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: ■ Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. ■ Modem LEDs—Two modem LEDs indicate carrier detection and link status. ■...

  • Page 7: Side Panels

    PRODUCT OVERVIEW Side Panels The device has connectors on either side. The figures that follow show the connectors available on your model. A side panel of the device follows: Not all models have a GPS connector. The figure that follows shows the other side of the device. ®...

  • Page 8: Specifications

    PRODUCT OVERVIEW Specifications MTR-EV3 Category Description General Performance CDMA2000 1xRTT v. EV-DO Rev. A (backward compatible to EV-DO Rev. 0 and CDMA 1x networks) Frequency Bands Dual-Band 800/1900 MHz Radio Cellular Telit DE910-DUAL Speed Packet Data Up to 3.1 Mbps downlink Up to 1.8 Mbps uplink Point-to-Point Messaging Mobile-Terminated SMS Mobile-Originated SMS...

  • Page 9: Dimensions

    PRODUCT OVERVIEW Category Description Network Compliance Aeris Sprint Verizon Radio Compliance FCC Part 22 FCC Part 24 RSS 132 RSS 133 Warranty Two years UL Recognized @ 40° C, Limited by AC power supply. UL Recognized @ 60° C when used with the fused DC power cable, part number FPC-532-DC.

  • Page 10: Power Draw Mtr-Ev3

    PRODUCT OVERVIEW Power Draw MTR-EV3 Cellular call box Average measured Peak TX amplitude Total inrush charge connection no data current (amps) at current (amps) measured in (amps) maximum power MilliCoulombs (mC) 7 volts US Cellular 800 MHz 0.255 0.818 0.900 1.71 US PCS 1900 MHz 0.255...

  • Page 11: Safety Warnings

    SAFETY WARNINGS Safety Warnings Lithium Battery ■ A lithium battery located within the product provides backup power for the timekeeping. This battery has an estimated life expectancy of ten years. ■ When this battery starts to weaken, the date and time may be incorrect. ■...

  • Page 12: Atex (Europe Only)

    SAFETY WARNINGS AVERTISSEMENT – Risque d'explosion – Le remplacement des composants peut annuler la compatibilité du produit avec les zones de Classe I Division 2. AVERTISSEMENT – Risque d'explosion – Ne débranchez pas l'équipement sauf s'il est hors tension ou si la zone est considérée comme non dangereuse.

  • Page 13: Interference With Pacemakers And Other Medical Devices

    SAFETY WARNINGS ■ Operating your device close to other electronic equipment may cause interference if the equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations. ■ Different industries and businesses restrict the use of cellular devices. Respect restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in process.

  • Page 14: Important Safety Instructions

    SAFETY WARNINGS Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 15: Cellular Information

    CELLULAR INFORMATION Cellular Information Antenna System Cellular Devices The cellular/wireless performance depends on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised.

  • Page 16: Installing And Using The Router

    The dimensions illustration in this guide shows the mounting rod, as well as the dimensions for placement of the screws. Activating the Account for Wireless Devices Fr information on activating your cellular modem: Go to http://www.multitech.com/support. Select your device. Scroll to Activation and click Download. Note:...

  • Page 17: Setting Up Gps

    INSTALLING AND USING THE ROUTER For CDMA devices, you can use the router's web interface to activate the account. Setting up GPS If your model can support a GPS, see the online help file for information on working with a GPS. Resetting the Device You need: ■...

  • Page 18: Regulatory Information

    REGULATORY INFORMATION Regulatory Information Notice for Devices that Use Aeris Radios One component of your device is a radio. A radio algorithm prevents your device from repeatedly attempting to connect to the network when the radio: ■ Cannot establish a packet data connection or ■...

  • Page 19: Fcc Interference Notice

    REGULATORY INFORMATION l'appareil ne doit pas produire de brouillage, et l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC Interference Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation ®...

  • Page 20: Restriction Of The Use Of Hazardous Substances (Rohs)

    REGULATORY INFORMATION Restriction of the Use of Hazardous Substances (RoHS) Multi-Tech Systems, Inc Certificate of Compliance 2011/65/EU Multi-Tech Systems confirms that its embedded products comply with the chemical concentration limitations set forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS).

  • Page 21: Reach Statement

    REGULATORY INFORMATION REACH Statement Registration of Substances After careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation 1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would be considered as “articles”.

  • Page 22: Information On Hs/Ts Substances According To Chinese Standards

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.

  • Page 23: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)

    REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
