Vpn (Virtual Private Network); Vpn > Ipsec; Introduction To Virtual Private Networks - Multitech RouteFinder RF825-C-Nx User Manual

VPN (Virtual Private Network)

VPN > IPSec

Introduction to Virtual Private Networks

A Virtual Private Network (VPN) is a secure communication connection via an insecure medium – usually the
Internet. A VPN is useful in situations where information is sent and received via the Internet and it is
important that no third party can read or change that information. Such a connection is secured via VPN
software that is installed at both ends of the connection. This software allows authentication, key exchange,
and data encryption according to an open standard (IPSec).
The IPSec protocol suite, based on modern cryptographic technologies, provides security services like
encryption and authentication at the IP network layer. It secures the whole network traffic providing
guaranteed security for any application using the network. It can be used to create private secured tunnels
between two hosts, two security gateways, or a host and a security gateway.

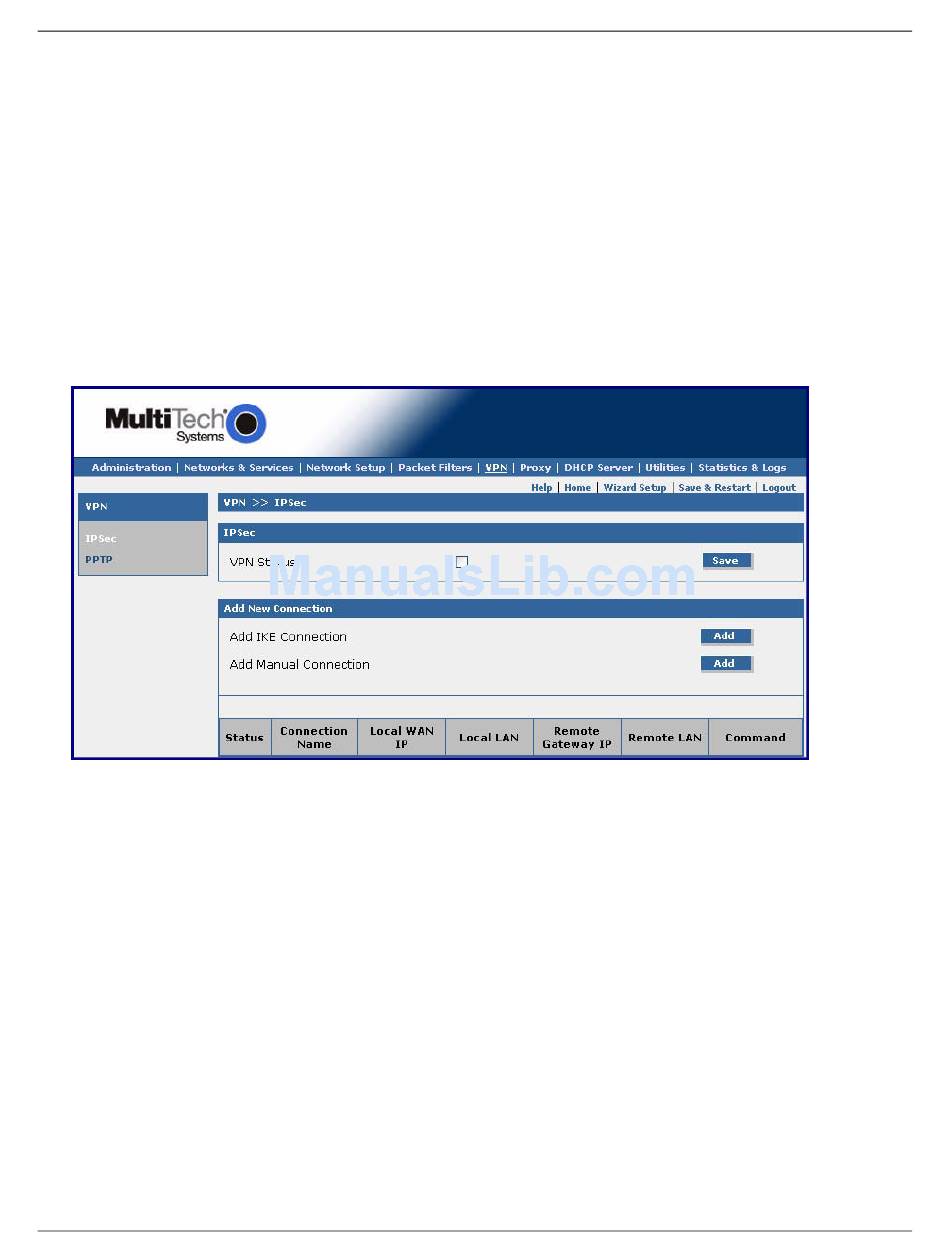

VPN IPSec
VPN Status
Check the VPN Status checkbox to enable IPSec. Click the Save button.
Add a New Connection
Add IKE Connection
Click the Add IKE Connection button. A screen displays for setting up an IKE connection.
Add Manual Connection
Click the Add Manual Connection button. A separate screen displays for setting up a manual connection.
Important Note About Activating a Connection:
at the bottom of this screen. Be sure to check the box in the Status column to activate the connection.
Multi-Tech Systems, Inc. RouteFinder RF825/RF825-AP User Guide (Document Number S000422B)
Chapter 5 – Using the RouteFinder's Web Management Software
Once connection information is entered, it will display
VPN > IPSec
67
