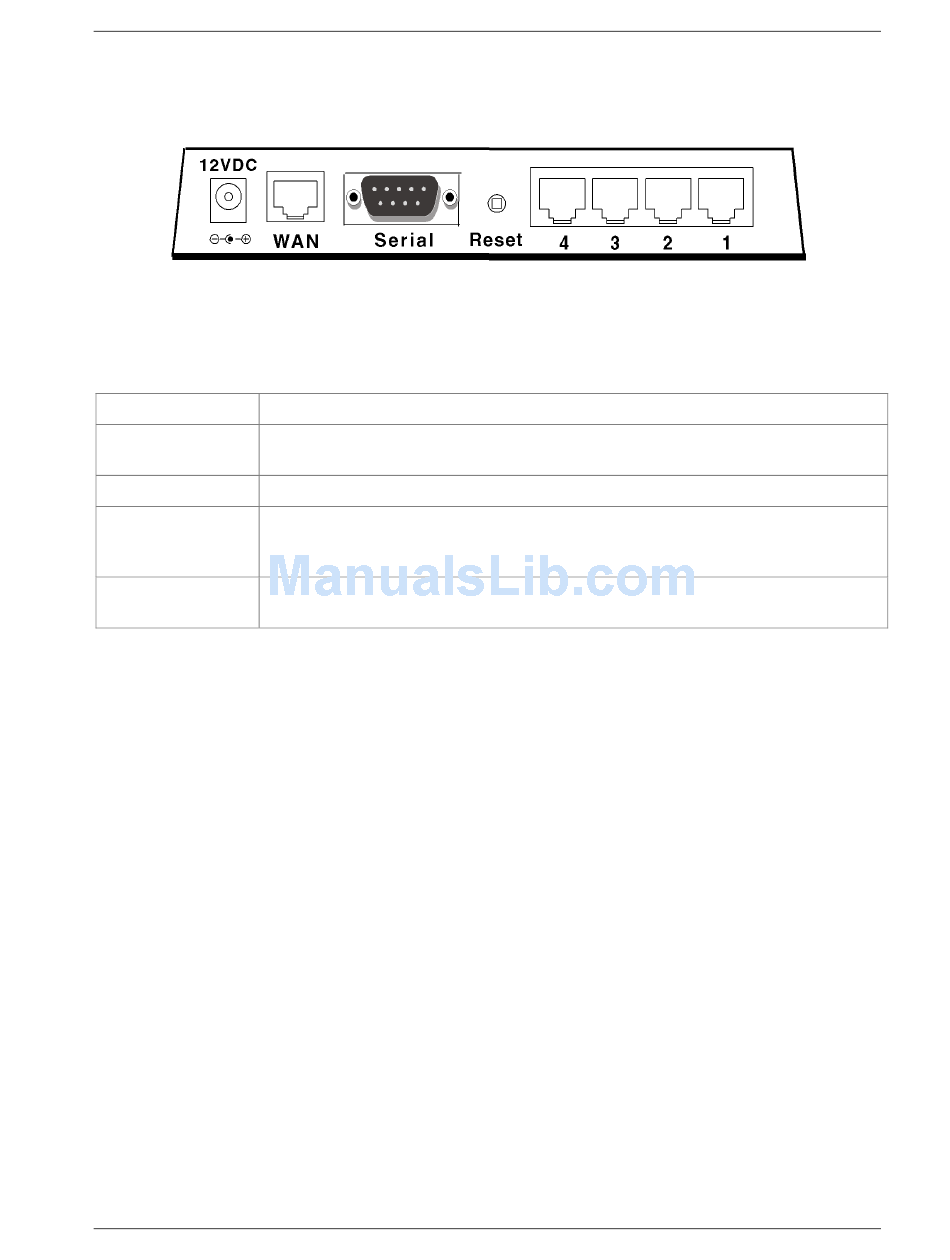

RF560VPN Back Panel

12VDC Power The power port connects the AC power adapter.
10/100 BT WAN The WAN port connects the xDSL modem or cable modem.
(10/100BaseT)
Serial The Serial port connects a standard modem (optional).
The Reset button resets the router to factory defaults. Press and hold the Reset
Reset button until the Status LED of the RF560VPN blinks, and then release it. Do not
press this button unless you want to restore all settings to the factory defaults.
There are 4 LAN ports. You can connect network devices such as PCs, FTP
Ports 1 - 4
servers, printers, or other devices you want to put on your network.
