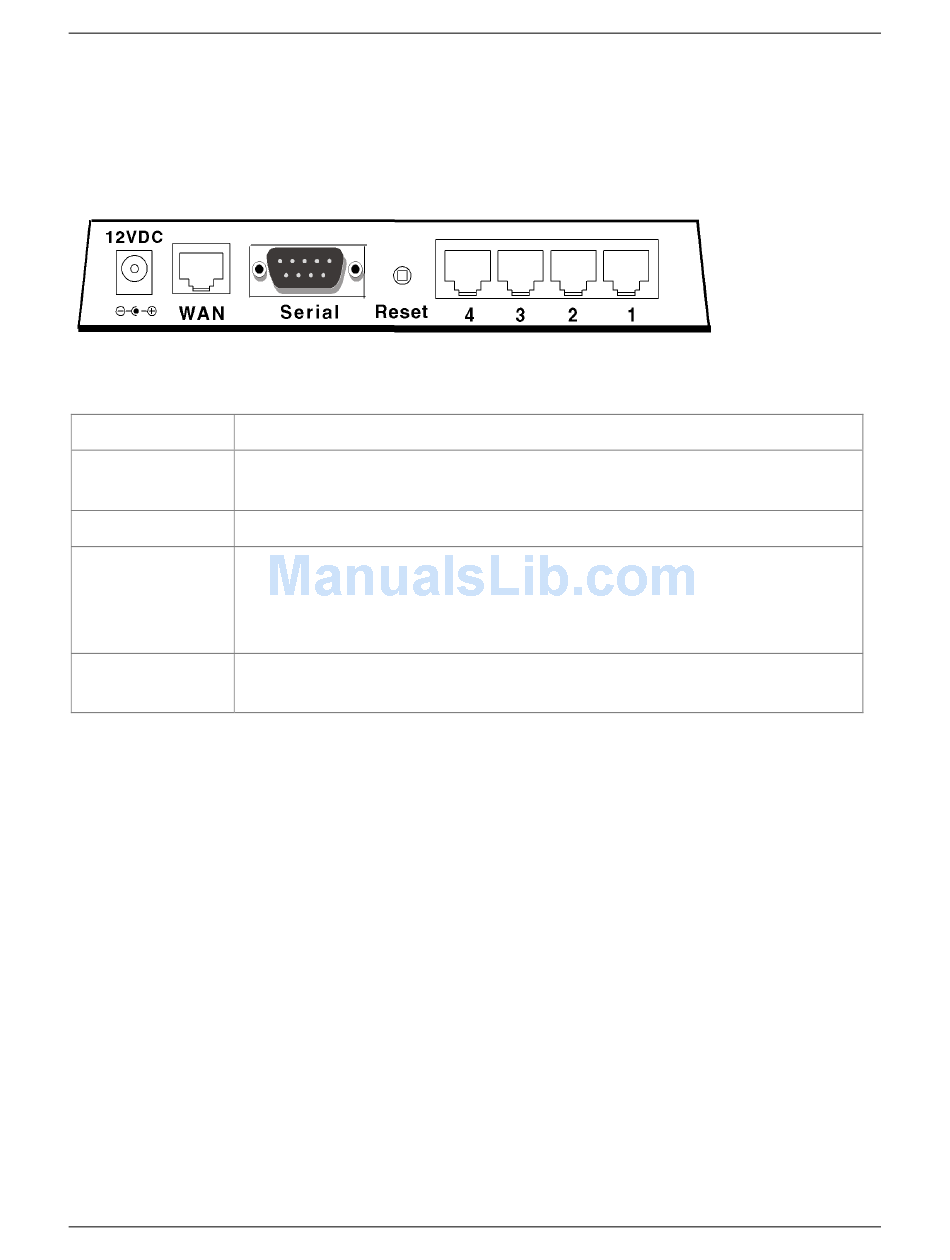

RF560VPN Back Panel

12VDC Power The power port connects the AC power adapter.
10/100 BT WAN
The WAN port connects the xDSL modem or cable modem.
(10/100BaseT)
The Serial port connects a standard modem (optional).
Serial
The Reset button resets the router to factory defaults. Press and
hold the Reset button until the Status LED of the RF560VPN
Reset
blinks, and then release it. Do not press this button unless you
want to restore all settings to the factory defaults.
There are 4 LAN ports. You can connect to PCs, FTP servers,
Ports 1 - 4
printers, or other devices you want to put on your network.
