General Information
Dual Unit Installations
If two or more units are placed side by side and are
2" or less apart, a dual unit heater package must be
applied to the left side of the right hand unit.
Failure to install the dual unit heater package could
result in exterior condensation between the units.
• If two Tall units are installed side by side and are 2"
or less apart, part #7007529 (aka TTDUAL) should
be utilized. (See Figure 2-6)
• If two Base units are installed side by side and are
2" or less apart, part #7007530 (aka BBDUAL)
should be utilized
• If a Tall unit is installed next to a Base unit and they
are 2" or less apart, part #7007530 (aka BBDUAL)
should be utilized.
Complete installation instructions are supplied with the
#7007530 and #7007529 packages.
#7015817 - Revision A - January, 2010
INTEGRA TED
INTEGRA TED
(736 T (736 T
2-4
SERIES
SERIES
all SWS #2970000) all SWS #2970000)
Apply heater
to left side of
right hand
unit

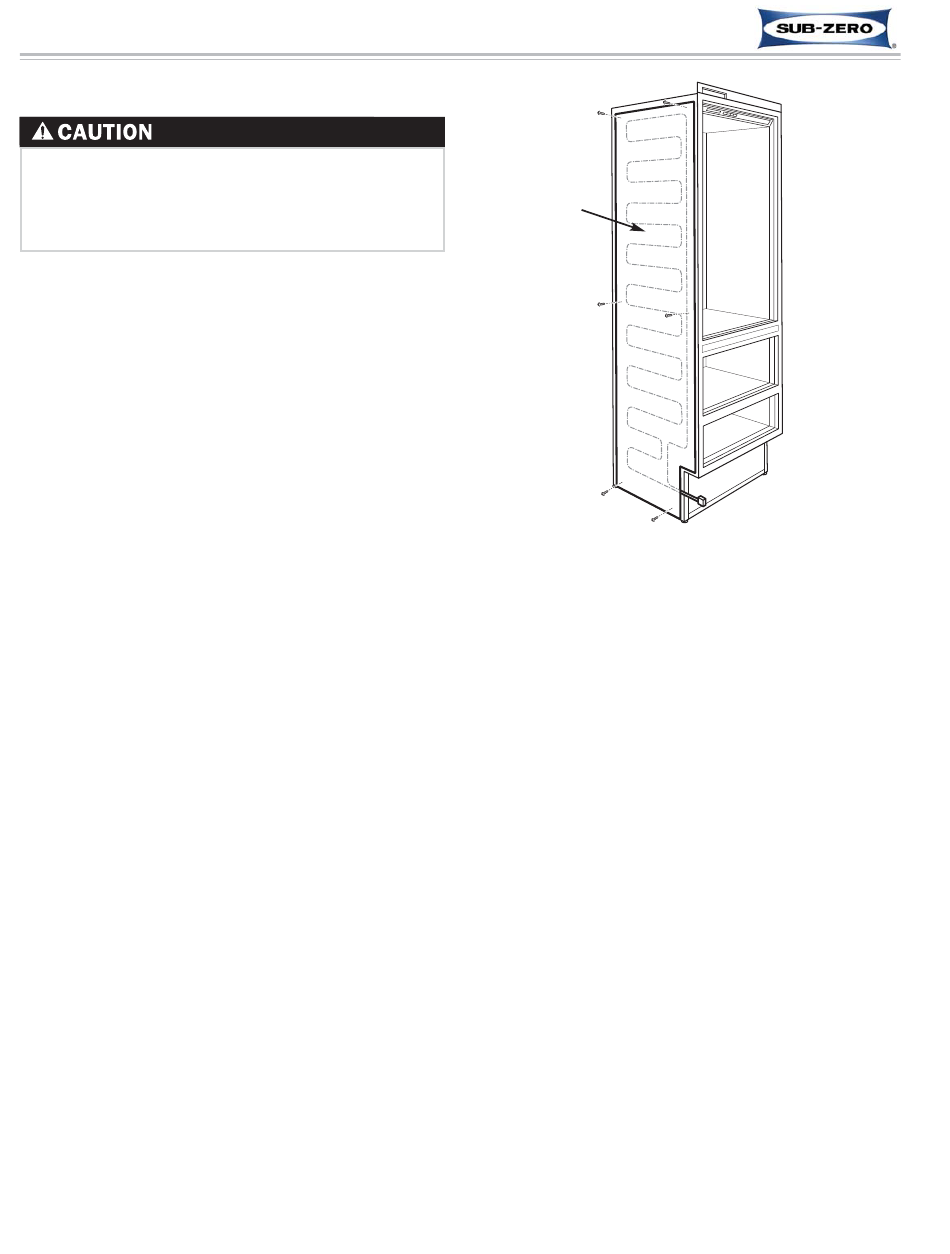

Figure 2-6. Dual Unit Heater Installation
