Sub-Zero INTEGRATED Series Service Manual page 40

INTEGRA
INTEGRA
= UPPER REFRIGERATOR SEALED SYSTEM
= LOWER REFRIGERATOR SEALED SYSTEM
REFRIGERATOR HEAT-EXCHANGER
(UPPER)
REFRIGRATOR HEAT-EXCHANGER
(LOWER)
REFRIGERATOR COMPRESSOR
(UPPER)
REFRIGERATOR COMPRESSOR
(LOWER)

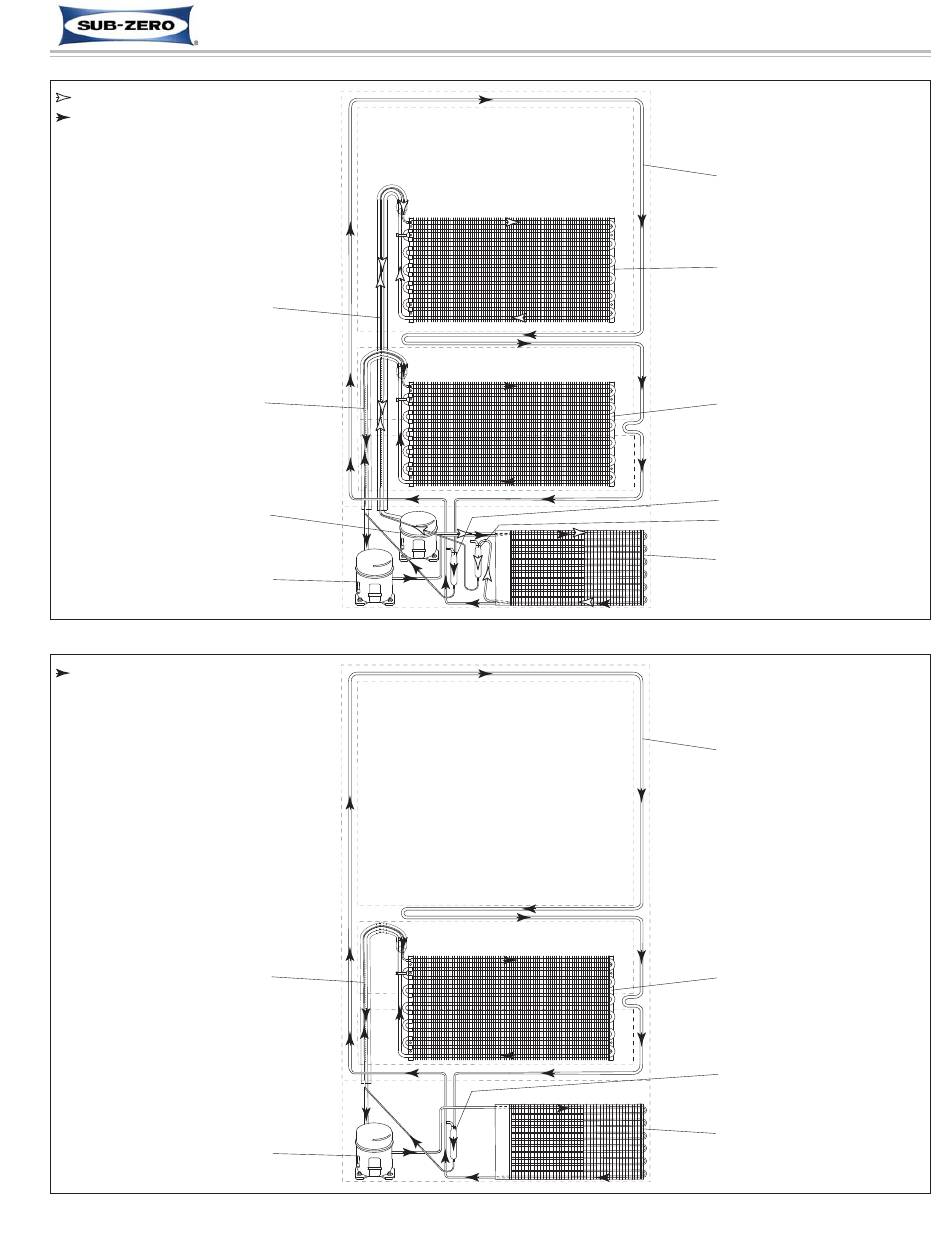

Figure 4-8. Models 736TR (After Serial #2970000) Refrigerant Flow
= FREEZER SEALED SYSTEM
HEAT-EXCHANGER
COMPRESSOR
Figure 4-9. Models 736TFI (After Serial #2970000) Refrigerant Flow
TED
TED
(736 T all SWS #2970000)
(736 T all SWS #2970000)
4-7
SERIES
SERIES
Sealed System Information
FRAME HEATER (HOT GAS)
REFRIGERATOR EVAPORATOR
(UPPER)
REFRIGERATOR EVAPORATOR
(LOWER)
REFRIGERATOR FILTER-DRIER (UPR)
REFRIGERATOR FILTER-DRIER (LWR)
CONDENSER
(FRONT - REFRIGERATOR, LOWER)
(BACK - REFRIGERATOR, UPPER)
FRAME HEATER (HOT GAS)
EVAPORATOR
FILTER-DRIER
CONDENSER
#7015817 - Revision A - January, 2010
