Sub-Zero INTEGRATED Series Service Manual page 28

INTEGRA
INTEGRA
736TCI
THERMISTOR LOCATION
Freezer Compartment
Refrigerator Compartment
Freezer Evaporator
Refrigerator Evaporator

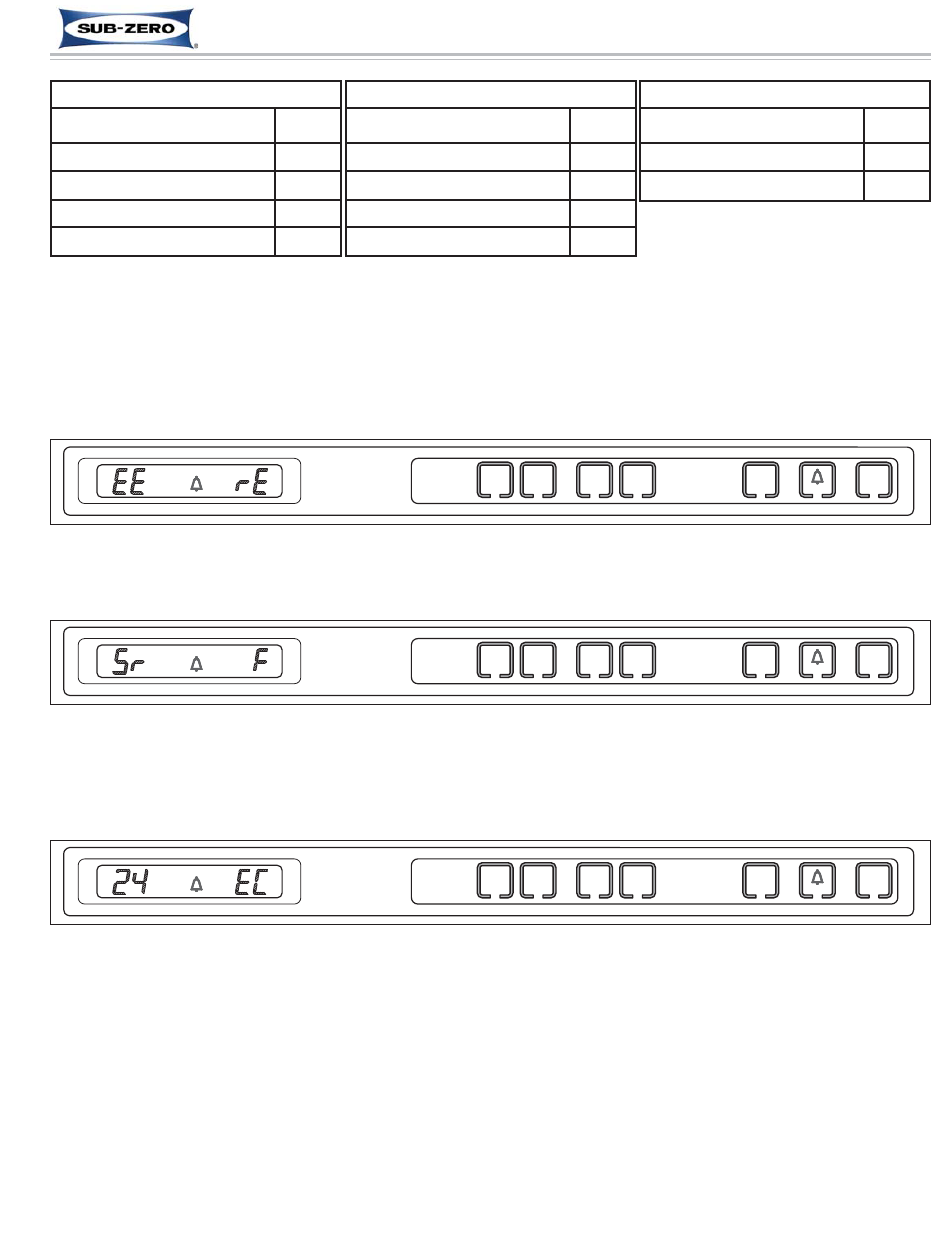

Diagnostic Mode Indicators
If "EE" is observed in the left display area during Diagnostic Mode, the thermistor in that location is open or shorted,
or there is a break in that thermistor's wiring
SERVICE
ICE OFF
Figure 3-47. "EE" Observed in Diagnostic Mode = Thermistor Fault in Location Indicated by Code
If "Sr" is observed in the left display area when Diagnostic Mode is initiated, the unit is in Showroom Mode, which
was explained earlier in this section
SERVICE
ICE OFF
Figure 3-48. "Sr" Observed While in Diagnostic Mode = Unit is in Showroom Mode
If "EC" is observed in the right display area during Diagnostic Mode, the numbers at left are "Error Codes"
Figure 3-49 and the Error Code Table
nents. If error codes are registered, they will appear before temperature readings and can be toggled through with
the temperature readings as described on the previous page.
SERVICE
ICE OFF
Figure 3-49. "EC" Observed While in Diagnostic Mode = Error Code (See Table on Following Page)
