The rear levelers are adjusted from the front of the
base by turning the Phillips head adjusting screw. The
long adjusting screw reaches all the way to the rear lev-
eler assembly. Turn the screw clockwise to raise the
rear or counterclockwise to lower it
NOTE: The rear leveling legs will only move 1/16" for
every 18 revolutions of the Phillips head screw. Do not
over torque. Use the lowest torque setting on any
power screwdriver. Do not turn rear leveling legs by
hand, doing so will damage the assembly.
Door and Drawer Adjustment
The doors and drawers are non-adjustable. Instead,
the door and/or drawer panels must be adjusted if there
is an alignment problem. Refer to the Installation
Manual and/or installation video for panel installation
and adjustment.
NOTE: The unit must be level before attempting to
adjust the door and drawer panels.
NOTE: If the door has problems closing, see Tall Unit
Door Hinge Operation Test Procedures and Corrections
at the end of the Troubleshooting Guide.
Door Stop Adjustment
This Series has a 90° door stop cam built into the hinge
system. The 90° door stop cam is located in the center
portion of each hinge. To adjust it, use a standard
straight-blade screwdriver to rotate the cam until it
reaches the stop point (See Figure 2-5).
NOTE: You must make this adjustment at both bottom
and top hinge.
TED
TED
(736 T (736 T all SWS #2970000) all SWS #2970000)
(See Figure 2-4).
2-3
SERIES
SERIES
General Information

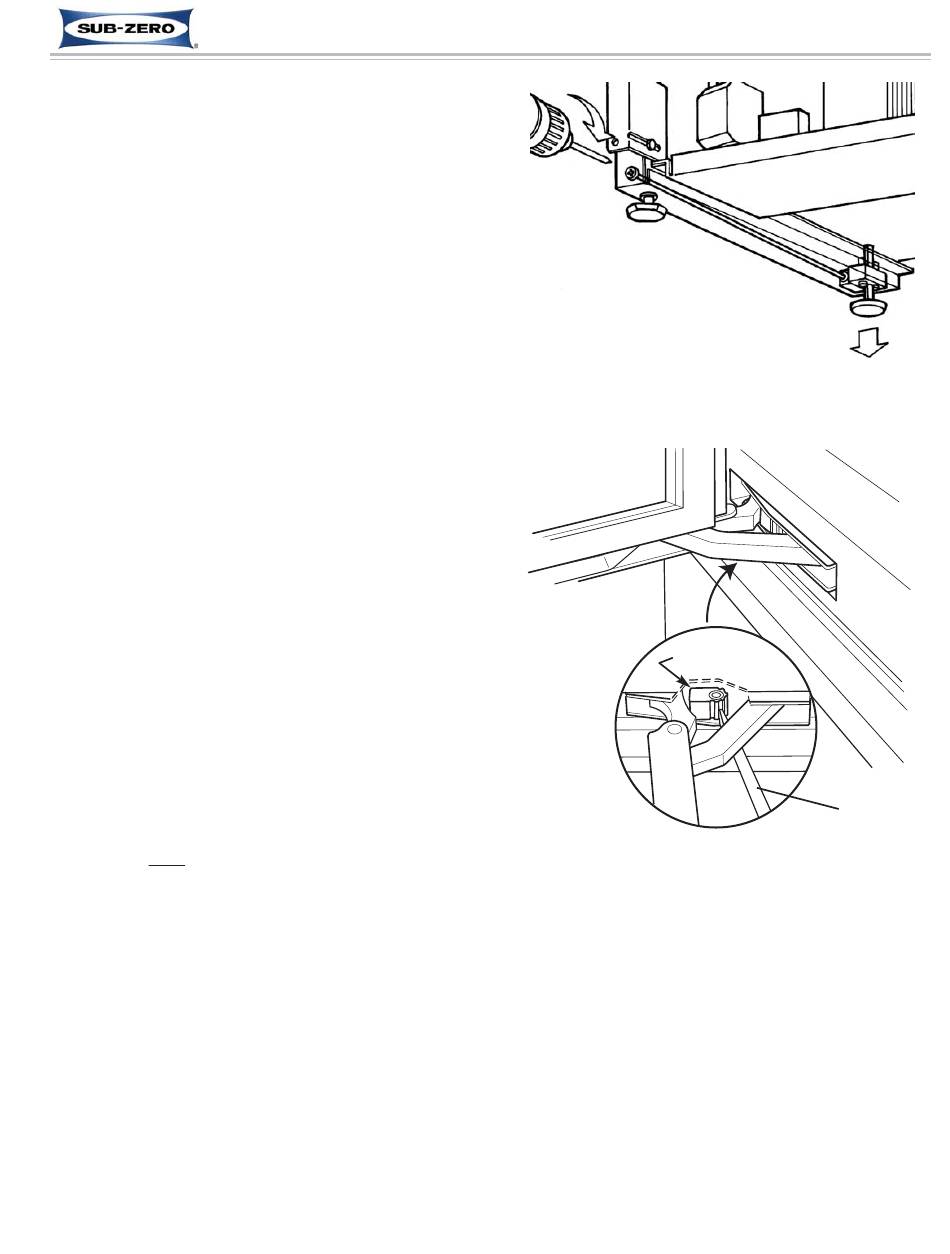

Figure 2-4. Adjusting Rear Levelers
90° Stop Cam
Figure 2-5. 90° Door Stop Cam
#7015817 - Revision A - January, 2010
Screwdriver
