Sub-Zero INTEGRATED Series Service Manual page 26

INTEGRA
INTEGRA
SERVICE

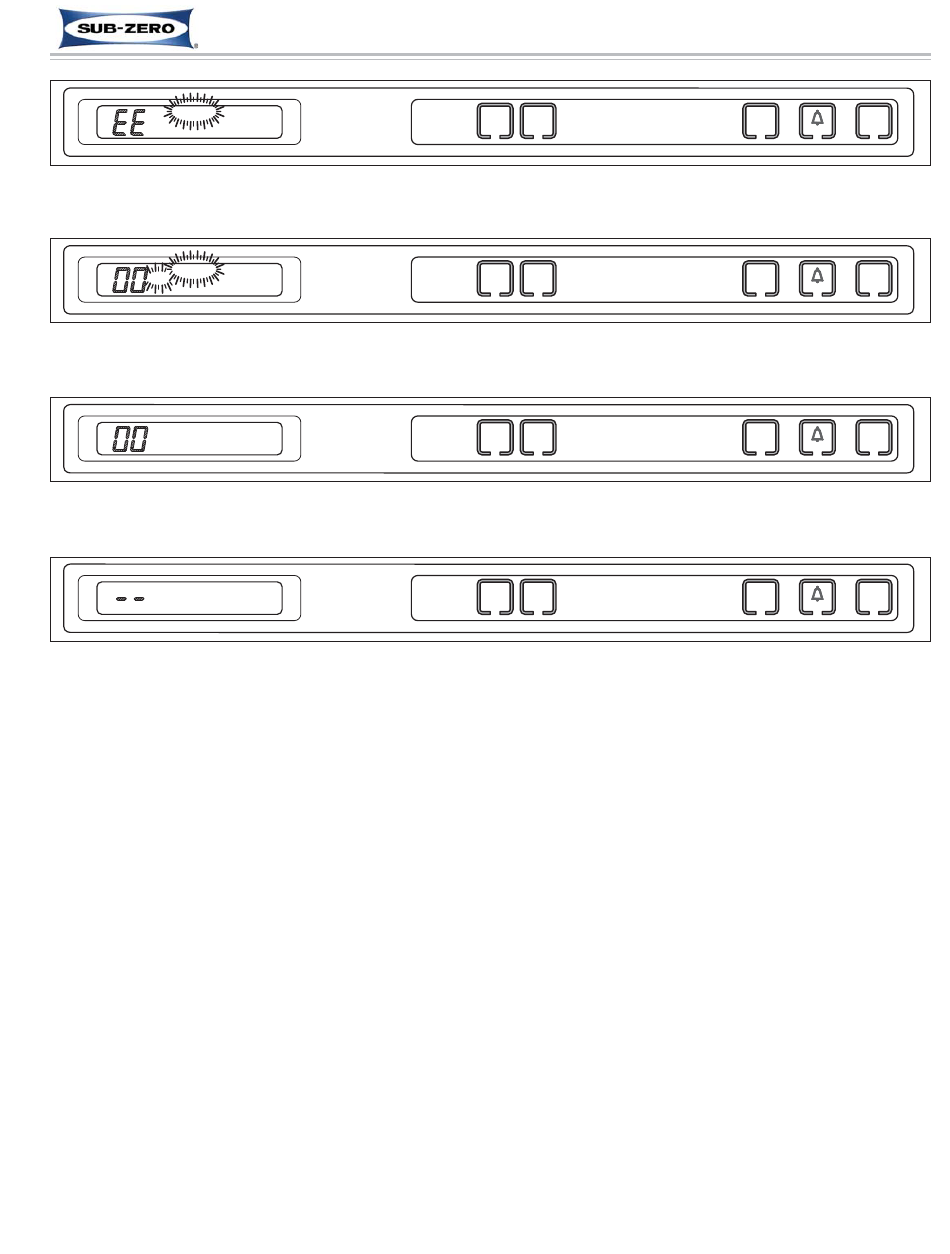

"EE" at Left and "SERVICE" Flashing = Freezer Compartment Thermistor (or its Wiring) Fault
SERVICE
ICE
"ICE" & "SERVICE" Flashing = Valve Solenoid energized > fifteen (15) Seconds, Icemaker System Disabled
SERVICE
"SERVICE" Steady, not Flashing = Error Codes Observed in Diagnostic Mode, but not Cleared
" - - " (Double Dashes) Displayed = Compartment Manually Disabled
TED
TED
(736 T (736 T all SWS #2970000) all SWS #2970000)
FREEZER
Figure 3-39. 736TFI
FREEZER
Figure 3-40.
FREEZER
Figure 3-41. 736TFI
FREEZER
Figure 3-42. 736TFI
