General Information

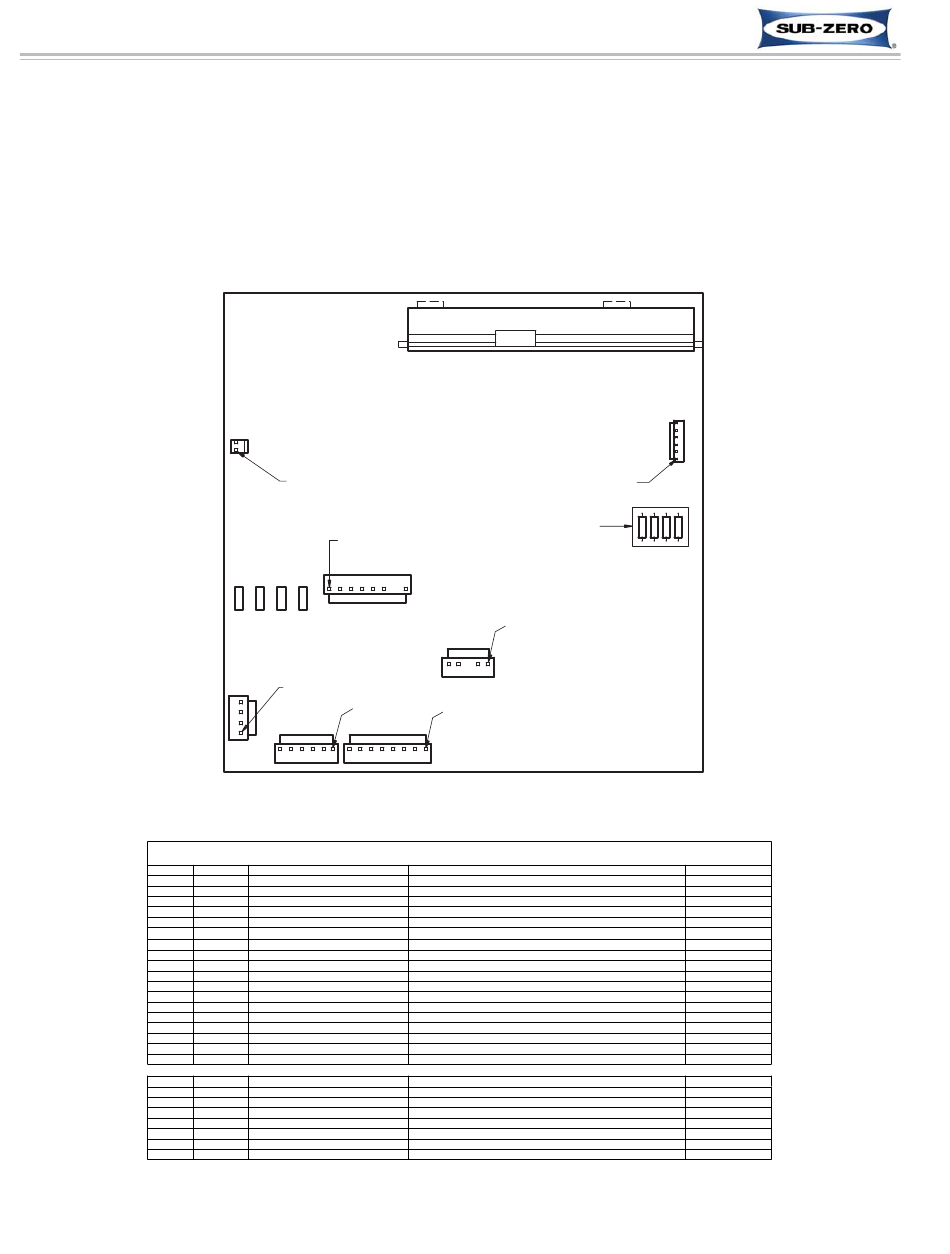

CONTROL BOARD LAYOUT AND SUMMARY TABLE
The electrical connection points on the control board are labeled alphanumerically. These labels correspond with
the alphanumeric control board summary table, located on the wiring diagrams. By referencing the summary table,
it is possible to identify which components are connected at which connection points on the control board. Below is
a layout diagram of the control board, and a copy of a summary table.
NOTE: All components on the control board are non-replaceable. If a problem with the control board is identified,
the complete control board must be replaced.
E2
E7
E10
E6
J7-1
J7-2
J7-3
J7-4
J7-5
J7-6
J7-7
J7-8
J4-1
J4-2
J4-3
J4-4
J4-5
LOW VOLTAGE THERMISTOR CIRCUITS
J1-1 EVAP FRZ
J1-2 EVAP FRZ
J1-3 EVAP REF
EVAP REF
J1-4
J1-5
J1-6
J1-7
J1-8
Figure 3-3. 736 Tall Unit Control Board Summary Table (736TCI Summary Table Shown)
