Sub-Zero INTEGRATED Series Service Manual page 25

General Information
SERVICE

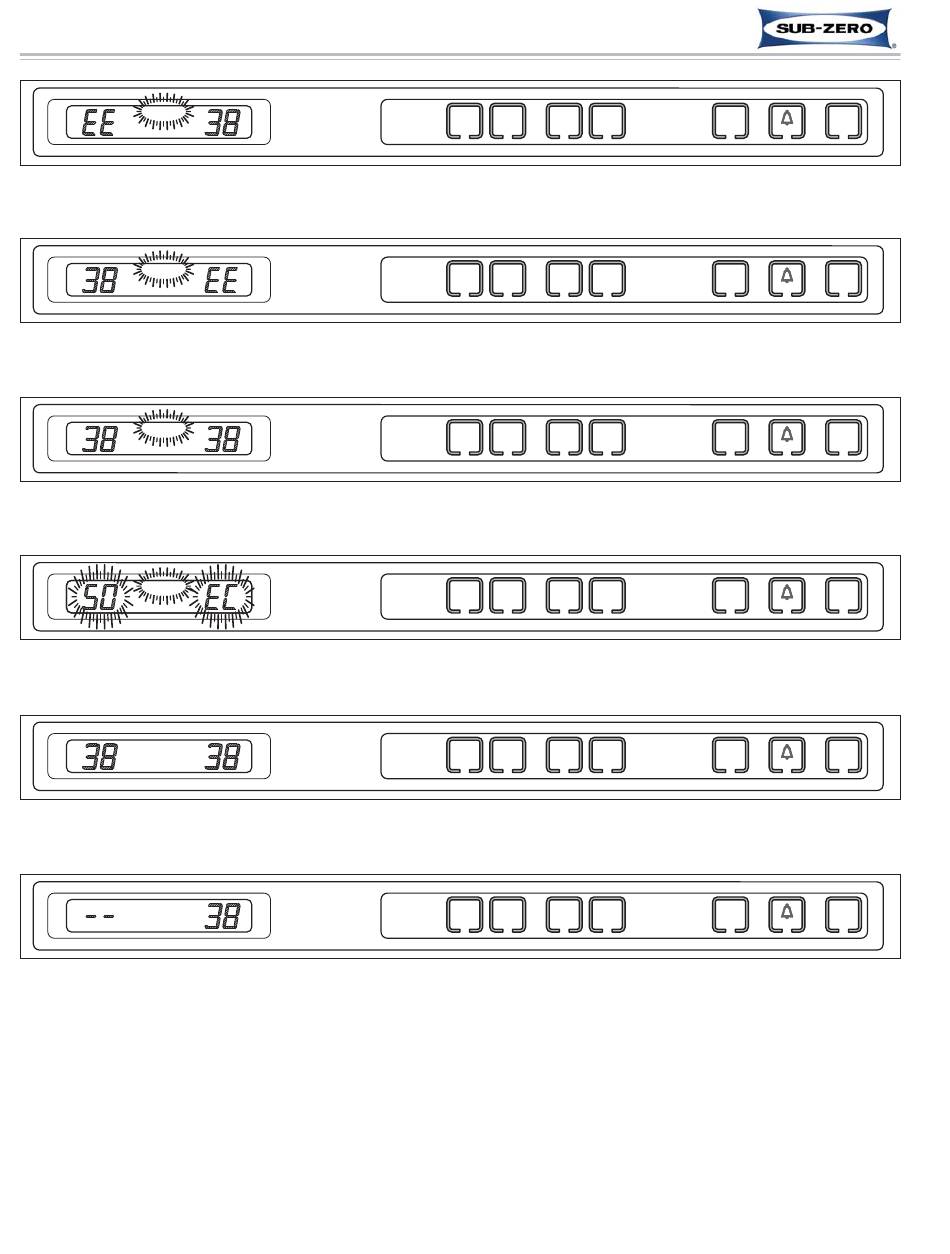

"EE" at Left and "SERVICE" Flashing = Lower Compartment Thermistor (or its Wiring) Fault
SERVICE
"EE" at Right and "SERVICE" Flashing = Upper Compartment Thermistor (or its Wiring) Fault
SERVICE
"SERVICE" Alone Flashing = Refrig. Evap. Thermistor (or its Wiring) Fault
SERVICE
"50", "SERVICE" and "EC" Flashing = Excessive Compressor Run
SERVICE
"SERVICE" Steady, not Flashing = Error Codes Observed in Diagnostic Mode, but not Cleared
" - - " (Double Dashes) Displayed = Compartment Manually Disabled
#7015817 - Revision A - January, 2010
INTEGRA TED
INTEGRA TED
(736 T (736 T
FREEZER
COLDER
Figure 3-33. 736TR
FREEZER
COLDER
Figure 3-34. 736TR
FREEZER COLDER
Figure 3-35. 736TR
FREEZER COLDER
Figure 3-36.
FREEZER
COLDER
Figure 3-37.
FREEZER
COLDER
Figure 3-38.
3-18
SERIES
SERIES
all SWS #2970000) all SWS #2970000)
REFRIGERATOR
WARMER COLDER WARMER
REFRIGERATOR
WARMER COLDER WARMER
WARMER COLDER WARMER REFRIGERATOR
WARMER COLDER WARMER REFRIGERATOR
736TR
REFRIGERATOR
WARMER COLDER WARMER
736TR
REFRIGERATOR
WARMER COLDER WARMER
736TR
ICE UNIT
ON/OFF ON/OFF
ON/OFF
ICE UNIT
ON/OFF ON/OFF
ON/OFF
ICE UNIT
ON/OFF ON/OFF
ON/OFF
ICE UNIT
ON/OFF ON/OFF
ON/OFF
ICE UNIT
ON/OFF ON/OFF
ON/OFF
ICE UNIT
ON/OFF ON/OFF
ON/OFF
