Sub-Zero INTEGRATED Series Service Manual page 46

INTEGRA
INTEGRA
First Revolution Continued
• The ice ejector reach the ice in the mold.
• The ice releases from the mold as the ejector
blades begin to rotate the cubes out.
• The drive motor remains energized through the
holding switch.
• The mold heater remains energized through the
thermostat.
• As the shut-off arm rises, the shut off switch is
tripped to "normally closed", and then the shut-off
arm begins to lower.
First Revolution Continued
• The ice has released from the mold.
• The motor remains energized through the holding
switch.
• The shut-off arm is lowered and the shut off switch
is tripped to "normally open".
• The water valve solenoid switch is tripped by the
timing cam, but the solenoid is not energized
because the thermostat is still closed and energiz-
ing the mold heater. (Electric current follows the
path of least resistance.)
TED
TED
(736 T (736 T all SWS #2970000) all SWS #2970000)
(See Figure 6-5)
(See Figure 6-6)
SERIES
SERIES
SHUT-OFF SWITCH
NO
C
NC
SOLENOID SWITCH
NC NO
WATER
SOLENOID
C
APPROXIMATE POSITION
OF ICE EJECTOR AND
ICE LEVEL ARM
DURING OPERATION

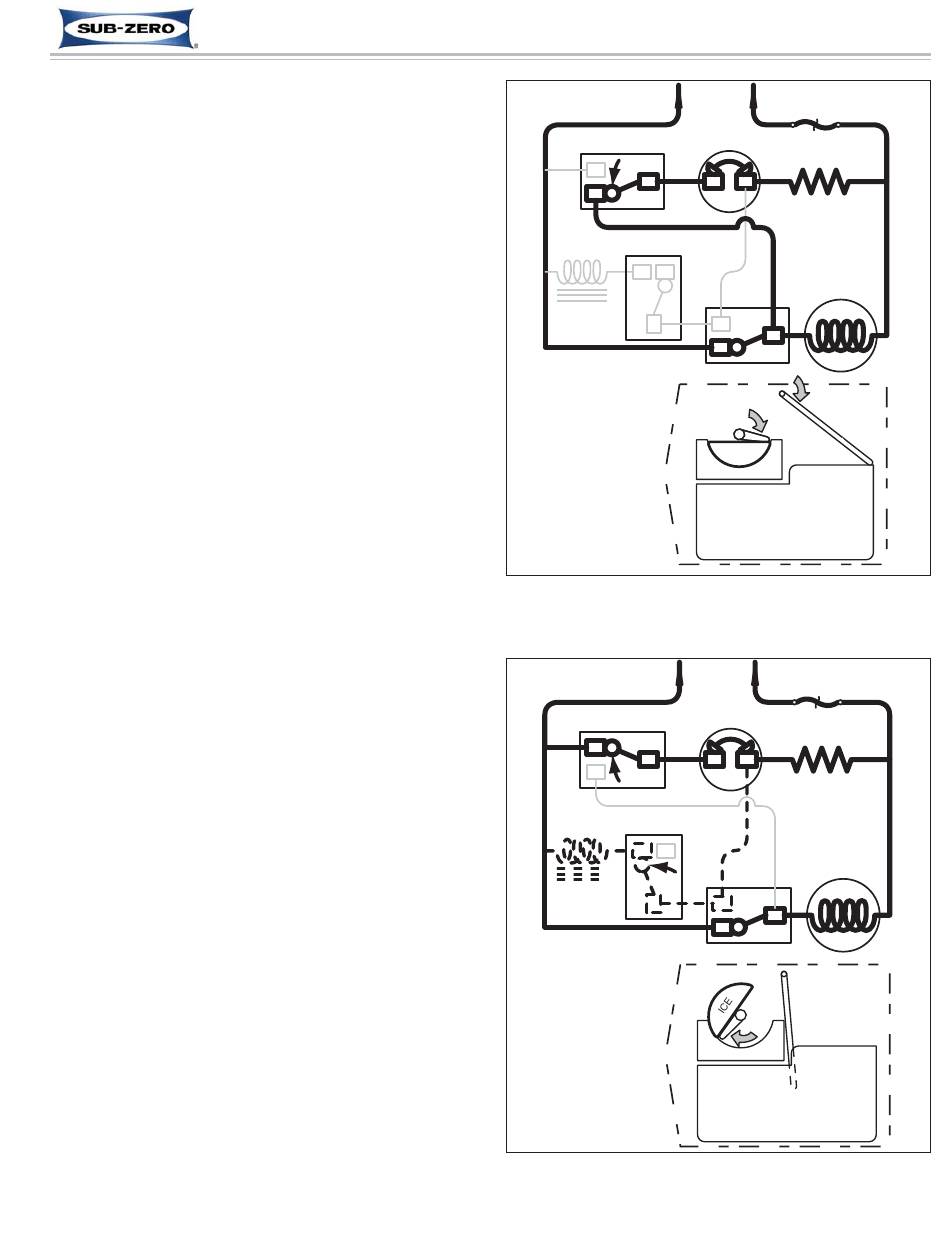

Figure 6-5. First Revolution Continued
SHUT-OFF SWITCH
NO
C
NC
SOLENOID SWITCH
NC
WATER
SOLENOID
C
APPROXIMATE POSITION
OF ICE EJECTOR AND
ICE LEVEL ARM
DURING OPERATION
Figure 6-6. First Revolution Continued
6-5
General Information
115 VOLTS
60 CYCLES
TCO
THERMOSTAT
MOLD HEATER
MOTOR
NC
C
NO
HOLDING SWITCH
ICE
ICE MOLD
ICE BUCKET
115 VOLTS
60 CYCLES
TCO
THERMOSTAT
MOLD HEATER
NO
MOTOR
NC
C
NO
HOLDING SWITCH
ICE MOLD
ICE BUCKET
#7015817 - Revision A - January, 2010
