C O N N E C T TO L I N E U N D E R T E S T A N D L O O P B A C K D E V I C E
► For Optical Interfaces:
Use the VIAVI P5000i or FiberChek Probe
1.
microscope to inspect both sides of every
connection being used (SFP, attenuators,
patch cables, bulkheads)
Focus the fiber on the screen.
o
If it appears dirty, clean the fiber end-face
o
and re-inspect.
If it appears clean, run the inspection test.
o
If it fails, clean the fiber and re-run
o
inspection test. Repeat until it passes.
Insert desired Optical Transceiver into the
2.
Port 1 SFP or QSFP slot on the top of the
OneAdvisor.
If necessary, insert optical attenuators into
3.
the SFP/QSFP TX and/or RX ports.
Connect the SFP/QSFP to the port under
4.
test using a jumper cable compatible with
the line under test.
► For Copper 10/100/1000BASE-T interfaces:
Insert Copper SFP into the Port 1 SFP or
1.
slot on the top of the OneAdvisor.
Connect the copper SFP to
2.
the port under test using CAT 5E or better
cable.
► Verify that Local Port status UP and Full
Duplex (FD)
► Tap the
► Verify that the Remote Loop is recognized.
► Tap the
Run Y.1564 Tests screen.
OneAdvisor High-Speed Network Testing Platforms
button.
button to display the

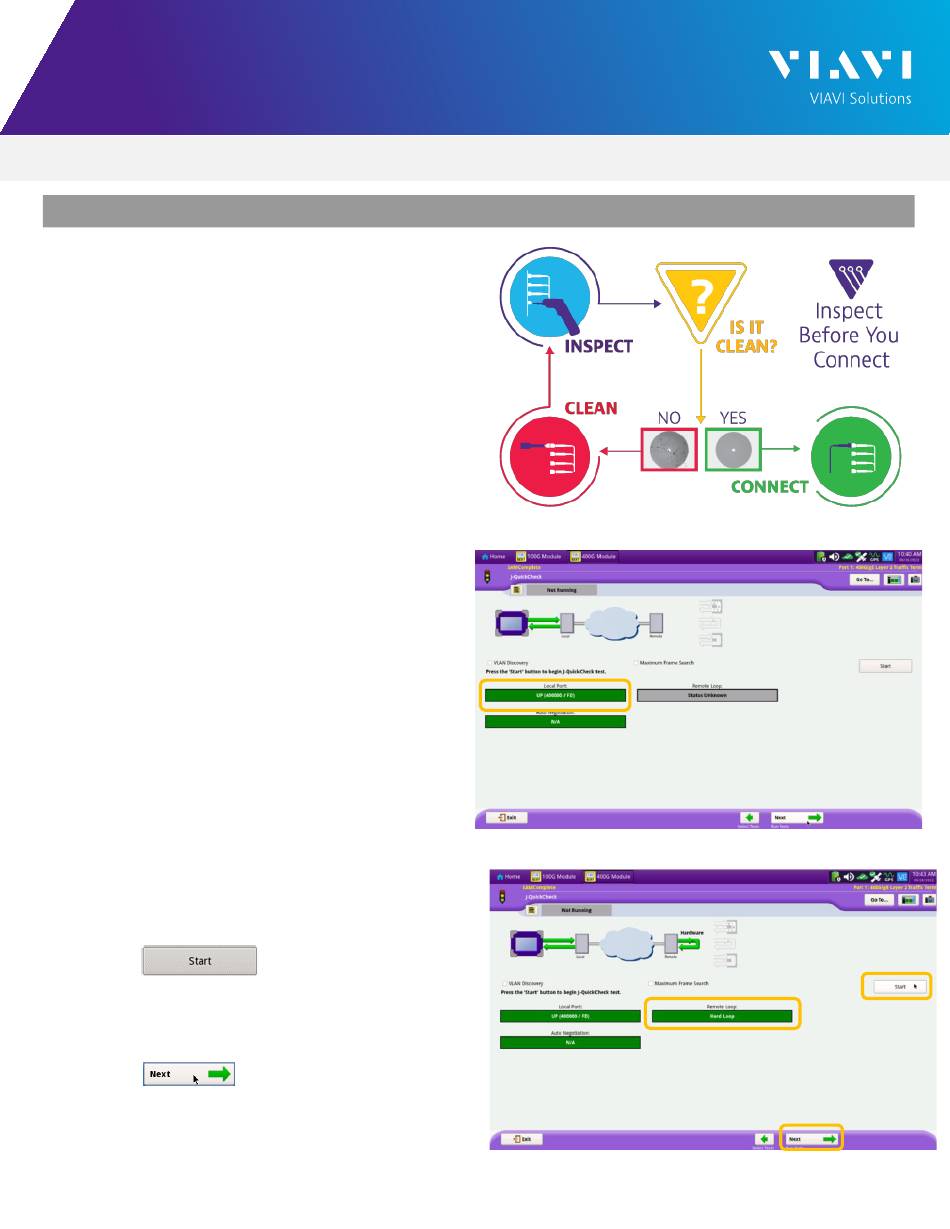

Figure 10: Inspect Before You Connect
Figure 11: Local Port status
