OneAdvisor-1000 Portable Network Tester
QUICK CARD
4100-series Expert OTDR
This quick card explains how to connect to a fiber under test, configure EXPERT OTDR
test settings using Quick Setup, run tests, and analyze results on a VIAVI
ONA-1000 equipped with a 4100-series OTDR module.
► ONA-1000 equipped with the following:
•
Fiber Optics Software Release V21.12 or
greater
•
4100 Series OTDR Module
•
Fiber optic cleaning and inspection tools
► 20-meter Fiber optic patch cable (Launch
Cable)
► Optical Coupler to connect Launch Cable to
Fiber Under Test
► Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (OCC Port, Launch
Cable, bulkhead connectors, patch cables, etc.)
► Focus fiber on the screen. If dirty, clean the
end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection
test. Repeat until it passes.
OneAdvisor-1000 Portable Network Tester

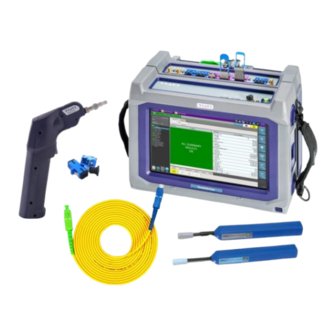

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect
VIAVI//Public
