OneAdvisor-800 Portable Network Tester
QUICK CARD
Insertion Loss, Cell Tower Construction
This quick card explains how to connect to a fiber under test, configure the OTDR Module
as a CW Optical Light Source, and operate the MP-60A Optical Power Meter to perform an
Optical Power Loss Test (Insertion Loss) Measurement.
► ONA-800 equipped with the following:
▪ Fiber Optics Software Release V19.92 or
greater
▪ 4100 Series OTDR Module
▪ MP-60 Optical Power Meter
► Fiber optic cleaning and inspection tools
► 3 Fiber Optic Patch Cables:
▪ Launch Fiber to connect to the optical
source
▪ Loopback fiber or device for the top of the
tower
▪ Receive fiber to connect to the power
meter.
► Optical Couplers to connect Patch Cables to
the Fiber Under Test
► Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (OCC Port, Launch
Cable, bulkhead connectors, patch cables, etc.)
► Focus fiber on the screen. If dirty, clean the
end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection
test. Repeat until it passes.
OneAdvisor-800 Portable Network Tester

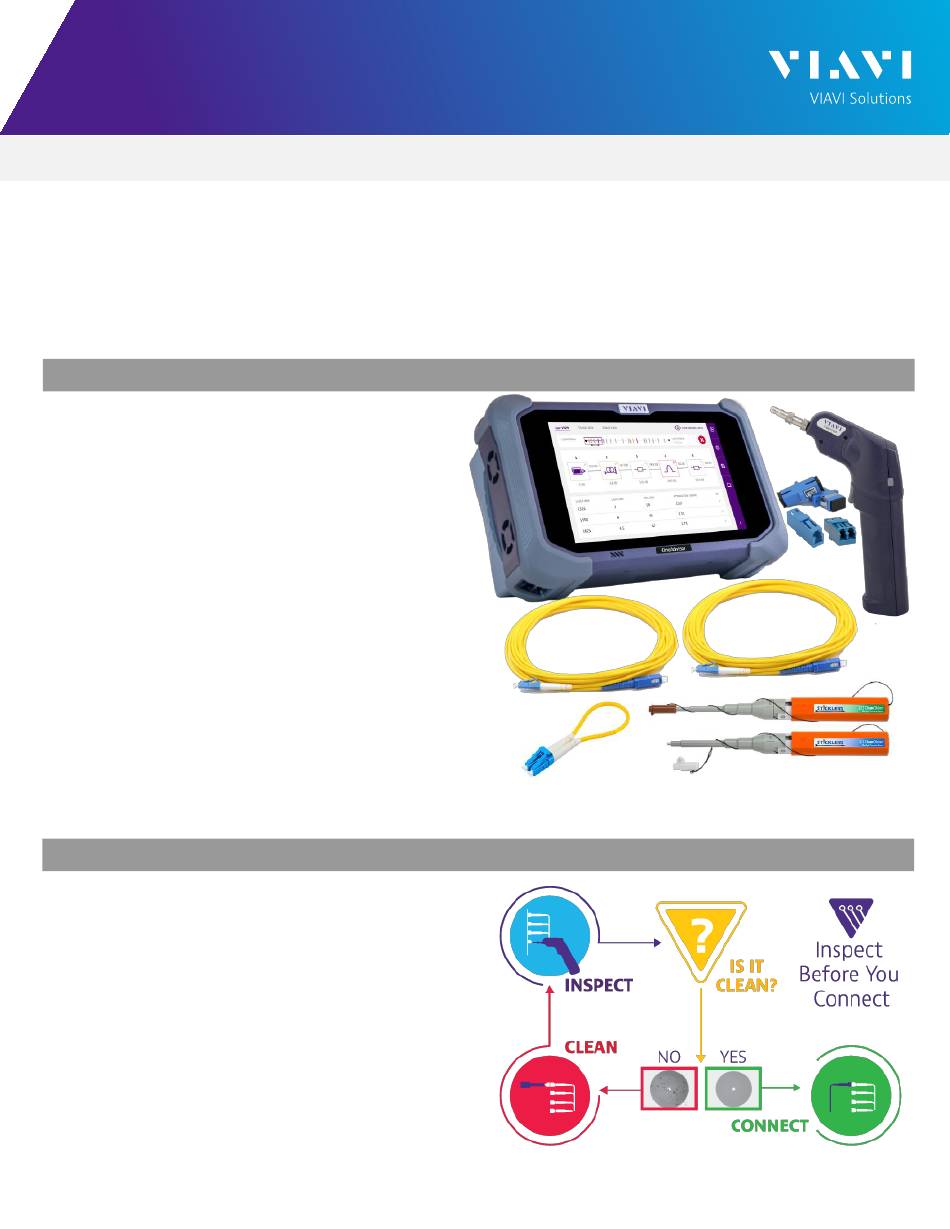

Figure 1: Equipment Requirements
Figure 2: Inspect Before You Connect
VIAVI//Public

Advertisement

loading
Need help?

Need help?

Do you have a question about the OneAdvisor-800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viavi OneAdvisor-800

  • Page 1 ► Optical Couplers to connect Patch Cables to Figure 1: Equipment Requirements the Fiber Under Test ► Use the VIAVI P5000i or FiberChek Probe microscope to inspect both sides of every connection being used (OCC Port, Launch Cable, bulkhead connectors, patch cables, etc.) ►...
  • Page 2 Figure 4 (left). If the loopback fiber/device is not included in the reference step it will add to the loss measured. Figure 5: Test fibers connected to the OTDR Port and MP60 installed on OneAdvisor-800 OneAdvisor-800 Portable Network Tester VIAVI//Public...
  • Page 3 OneAdvisor-800 Portable Network Tester QUICK CARD L A U N C H A N D C O N F I G U R E T H E C W L I G H T S O U R C E Figure 6: Home >...
  • Page 4 OneAdvisor-800 Portable Network Tester QUICK CARD L A U N C H A N D C O N F I G U R E T H E P O W E R M E T E R Insert the MP-60 into one of the ONA800’s USB ports and launch the Power Meter.
  • Page 5 A C T I VAT E J O B M A N A G E R Job Manager allows the creation of a set of tasks that must be completed using the OneAdvisor-800. These could be across the various applications (Insertion Loss, OTDR, Fiber Inspection, Cable Sweep, etc.)
  • Page 6 OneAdvisor-800 Portable Network Tester QUICK CARD P E R F O R M T H E T E S T Connect the fiber under test as shown in Figure 3 right side. Read the value shown. If it passes the threshold the value will be shown in green.
  • Page 7 © 2021 VIAVI Solutions, Inc, Contact Us (+1 844 468-4284) Product specifications and descriptions in this document are subject to change without notice. To reach the VIAVI office nearest you, OneAdvisor-800 Portable Network Tester Patented as described at viavisolutions.com/patents visit viavisolutions.com/contact VIAVI//Public...
