Multitech ISIHI-2S User Manual page 31

8. The Select OEM Option dialog box appears. Click OK. A transient dialog box will appear indicating the
progress of the setup program.

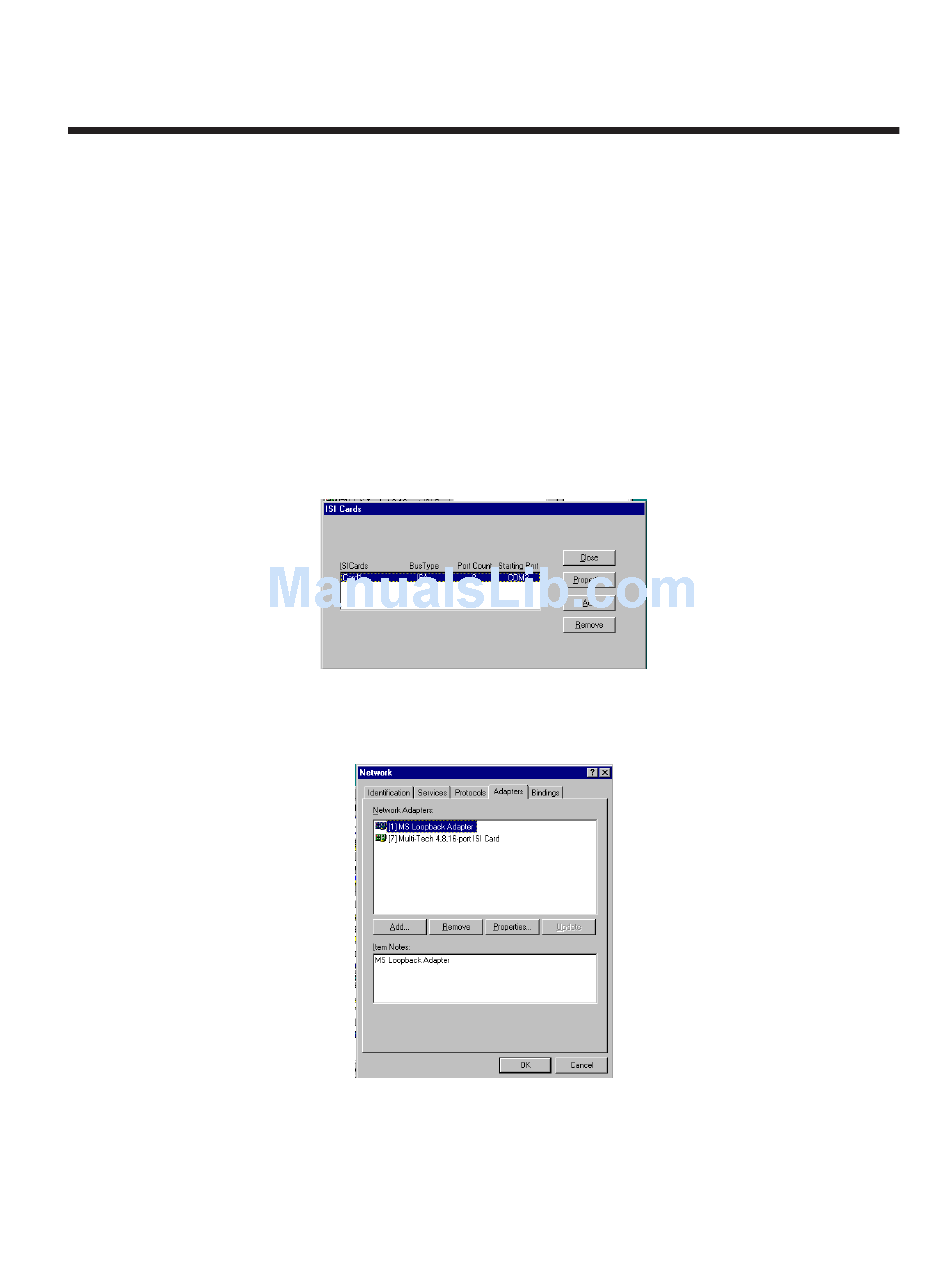

9. The ISI Cards dialog box appears. Click Add.
10. Then the ISI Card Settings dialog box appears. Enter the correct port count:
•
allocate 8 ports for 2S/2U cards
•
allocate 8 ports for the ISIHP-1S cards
•
allocate 16 ports for 4S/4U/4SD cards
11. Select the first port number for ISI devices (TAs or modems), which is usually COM3.
•
For ISIHI cards, click "ISA" in the Bus Type field. Enter the Base I/O Address and IRQ as in Step 2
above.
•
For ISIHP cards, click "PCI" in the Bus Type field.
12. The ISI Cards dialog box appears again and shows the port resource allocation just made. To add more
cards, click Add and repeat Step 9. After the last ISI card has been added, click Close.
13. The file is copied and "Multi-Tech ISIHP Adapter" appears in the Network Adapters box. Click Close.
14. When prompted to restart your computer, click Yes. The ISIHx card software is now installed.
Chapter 3 - Software Installation
31
