Connect the ribbon cable from the existing 4-channel board to the 50-pin connector on the 4-Channel

Voice/Fax logic board.

Place the 4-Channel Voice/Fax logic board in the CHANNEL 5 through 8 slots in the back panel of the

unit and onto the six metal standoffs (Refer to Figure 3).

Secure the 4-Channel Voice/Fax logic board to the metal standoffs using the 6 screws provided in the

kit.

Set switch 1 of the four-position dip switch to the up (open) position on the new 4-Channel Voice/Fax

logic board. All four dip switches must be in the down (closed) position on the existing Voice/Fax logic

board.

10. Slide the cover back on to the chassis and reinstall the cover screws.

11. Refer to your User's Guide to configure your 4-Channel Voice/Fax logic board.

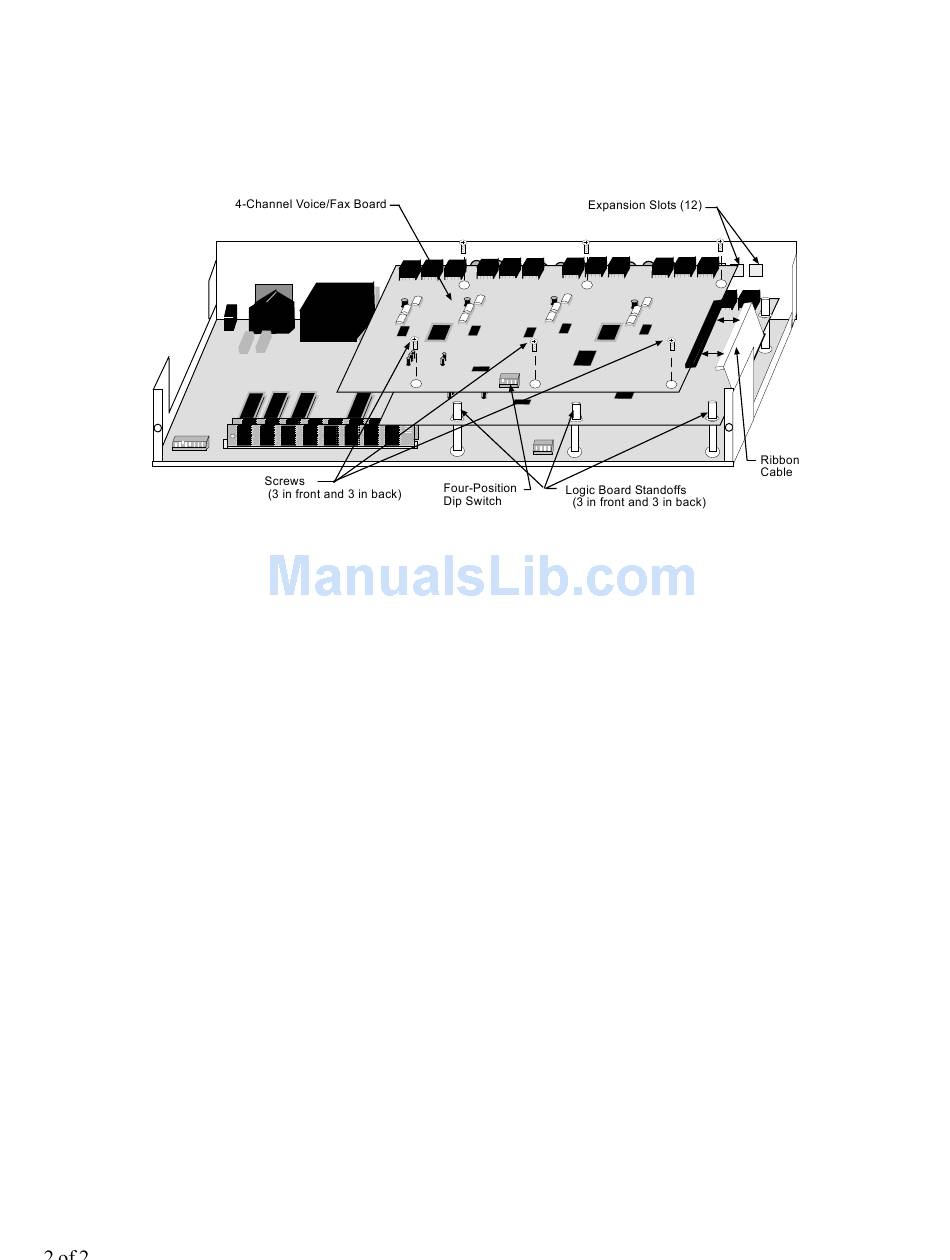

Figure 3: Adding the 4-Channel Voice/Fax Board
