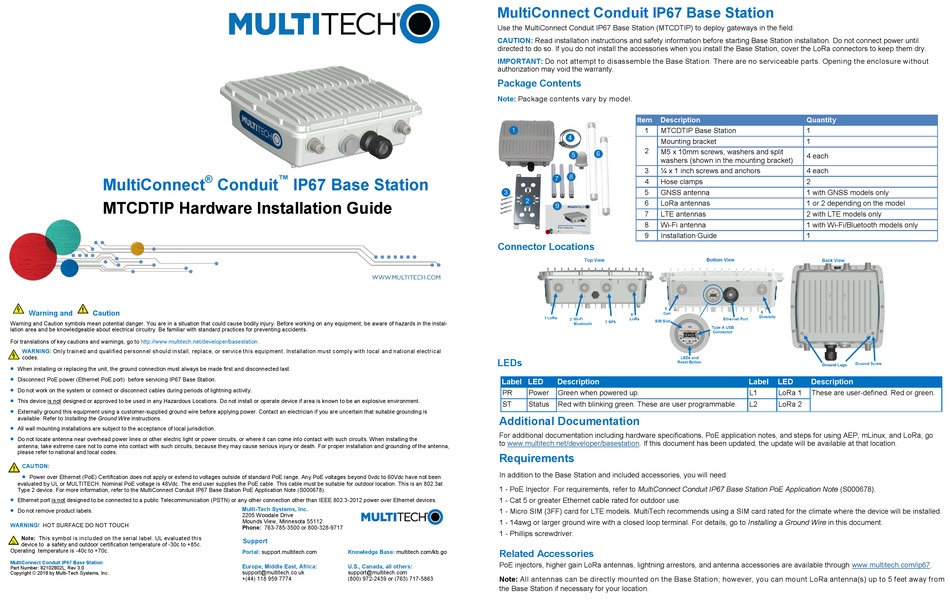

Multitech MultiConnect Conduit IP67 Base Station Hardware Installation Manual

MultiConnect
MTCDTIP Hardware Installation Guide
Warning and Caution
Warning and Caution symbols mean potential danger. You are in a situation that could cause bodily injury. Before working on any equipment, be aware of hazards in the instal-
lation area and be knowledgeable about electrical circuitry. Be familiar with standard practices for preventing accidents.
For translations of key cautions and warnings, go to http://www.multitech.net/developer/basestation.
WARNING: Only trained and qualified personnel should install, replace, or service this equipment. Installation must comply with local and national electrical
codes.

When installing or replacing the unit, the ground connection must always be made first and disconnected last.

Disconnect PoE power (Ethernet PoE port) before servicing IP67 Base Station.

Do not work on the system or connect or disconnect cables during periods of lightning activity.

This device is not designed or approved to be used in any Hazardous Locations. Do not install or operate device if area is known to be an explosive environment.

Externally ground this equipment using a customer-supplied ground wire before applying power. Contact an electrician if you are uncertain that suitable grounding is
available. Refer to Installing the Ground Wire instructions.

All wall mounting installations are subject to the acceptance of local jurisdiction.

Do not locate antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the
antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death. For proper installation and grounding of the antenna,
please refer to national and local codes.
CAUTION:

Power over Ethernet (PoE) Certification does not apply or extend to voltages outside of standard PoE range. Any PoE voltages beyond 0vdc to 60Vdc have not been
evaluated by UL or MULTITECH. Nominal PoE voltage is 48Vdc. The end user supplies the PoE cable. This cable must be suitable for outdoor location. This is an 802.3at
Type 2 device. For more information, refer to the MultiConnect Conduit IP67 Base Station PoE Application Note (S000678).

Ethernet port is not designed to be connected to a public Telecommunication (PSTN) or any other connection other than IEEE 802.3-2012 power over Ethernet devices.

Do not remove product labels.
WARNING! HOT SURFACE DO NOT TOUCH
Note: This symbol is included on the serial label. UL evaluated this
device to a safety and outdoor certification temperature of -30c to +85c.
Operating temperature is -40c to +70c.

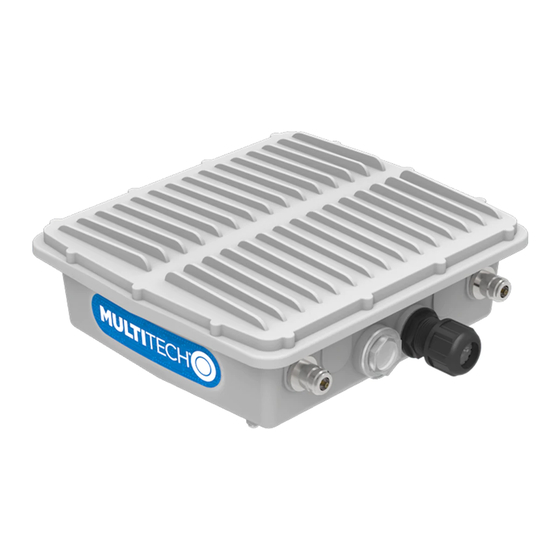

MultiConnect Conduit IP67 Base Station
Part Number: 82102802L, Rev 3.0
Copyright © 2018 by Multi-Tech Systems, Inc.
® ™
Conduit IP67 Base Station
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
Phone: 763-785-3500 or 800-328-9717
Support
Portal: support.multitech.com Knowledge Base:
Europe, Middle East, Africa: U.S., Canada, all others:
support@multitech.co.uk support@multitech.com
+(44) 118 959 7774 (800) 972-2439 or (763) 717-5863
MultiConnect Conduit IP67 Base Station
Use the MultiConnect Conduit IP67 Base Station (MTCDTIP) to deploy gateways in the field.
CAUTION: Read installation instructions and safety information before starting Base Station installation. Do not connect power until
directed to do so. If you do not install the accessories when you install the Base Station, cover the LoRa connectors to keep them dry.
IMPORTANT: Do not attempt to disassemble the Base Station. There are no serviceable parts. Opening the enclosure without
authorization may void the warranty.
Package Contents
Note: Package contents vary by model.
Connector Locations
LEDs
Label LED Description
PR Power Green when powered up.
ST Status Red with blinking green. These are user programmable.
Additional Documentation
For additional documentation including hardware specifications, PoE application notes, and steps for using AEP, mLinux, and LoRa, go
to www.multitech.net/developer/basestation. If this document has been updated, the update will be available at that location.
Requirements
In addition to the Base Station and included accessories, you will need:
1 - PoE Injector. For requirements, refer to MultiConnect Conduit IP67 Base Station PoE Application Note (S000678).
1 - Cat 5 or greater Ethernet cable rated for outdoor use.
1 - Micro SIM (3FF) card for LTE models. MultiTech recommends using a SIM card rated for the climate where the device will be installed.
1 - 14awg or larger ground wire with a closed loop terminal. For details, go to Installing a Ground Wire in this document.
1 - Phillips screwdriver.
Related Accessories
multitech.com/kb.go
PoE injectors, higher gain LoRa antennas, lightning arrestors, and antenna accessories are available through www.multitech.com/ip67.
Note: All antennas can be directly mounted on the Base Station; however, you can mount LoRa antenna(s) up to 5 feet away from
the Base Station if necessary for your location.
Item Description Quantity
1 MTCDTIP Base Station 1
Mounting bracket 1
2
M5 x 10mm screws, washers and split
4 each
washers (shown in the mounting bracket)
3 ¼ x 1 inch screws and anchors 4 each
4 Hose clamps 2
5 GNSS antenna 1 with GNSS models only
6 LoRa antennas 1 or 2 depending on the model
7 LTE antennas 2 with LTE models only
8 Wi-Fi antenna 1 with Wi-Fi/Bluetooth models only
9 Installation Guide 1
Label LED Description
L1 LoRa 1 These are user-defined. Red or green.
L2 LoRa 2
