3.2.2 Removing the Panels

3.2.2.1 Removing the Front Panel

3-4

Follow the instructions in this section to remove the necessary panels from

your cabinet.

1. Determine where you will be installing the tape library.

Tape libraries can be installed behind either of the top two front panels.

2. Pull on both sides of the front panel on the cabinet to remove the panel,

and set it aside.

See Figure 3-4. The procedure is the same for the remaining front panels for

all cabinets.

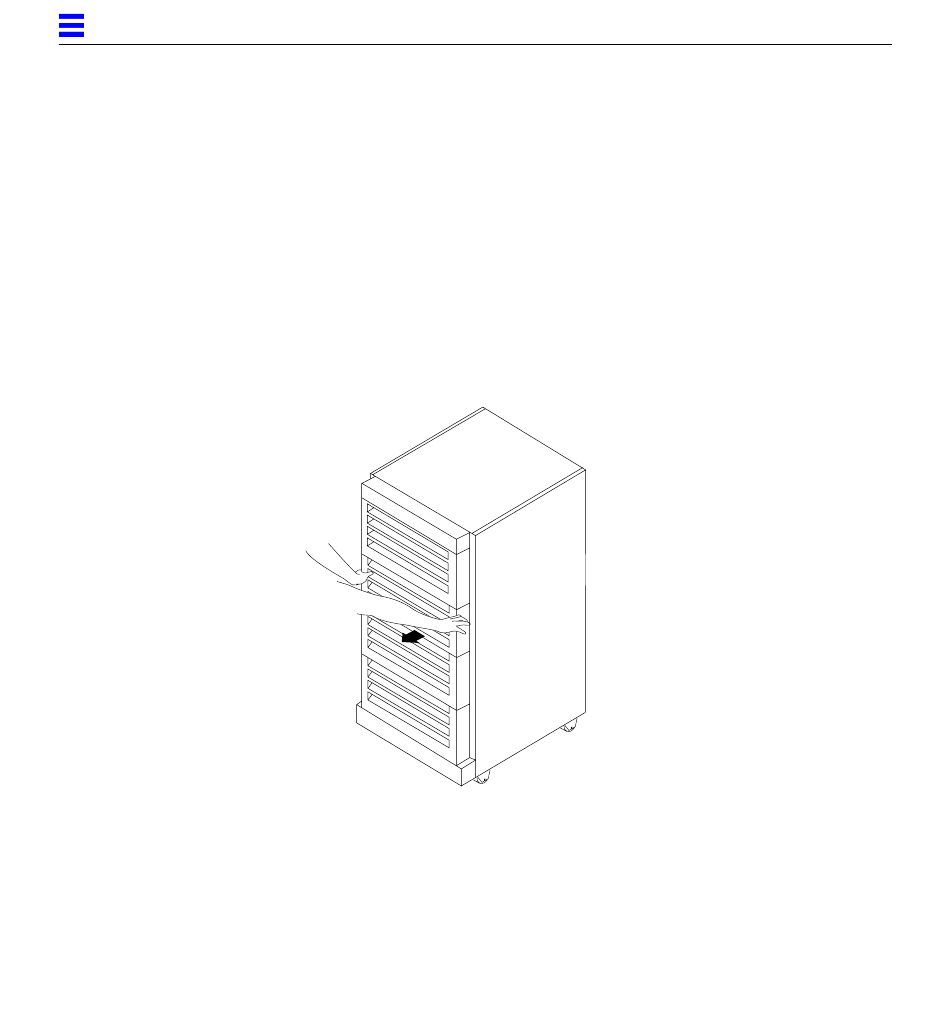

Figure 3-4

Removing a Front Panel from the 56-Inch Data Center Expansion Cabinet

SPARCstorage Library Installation Manual—February 1995
