2.3 Installing Slide Rail Runners on the SPARCstorage Library

2-4

1. Separate runners from slide rails.

a. Locate the slide rails that were shipped with the SPARCstorage

Library.

b. Fully extend one slide rail until it locks.

c. Press the rail release button in the center of the rail

See Figure 2-2. This action releases the two-part portion.

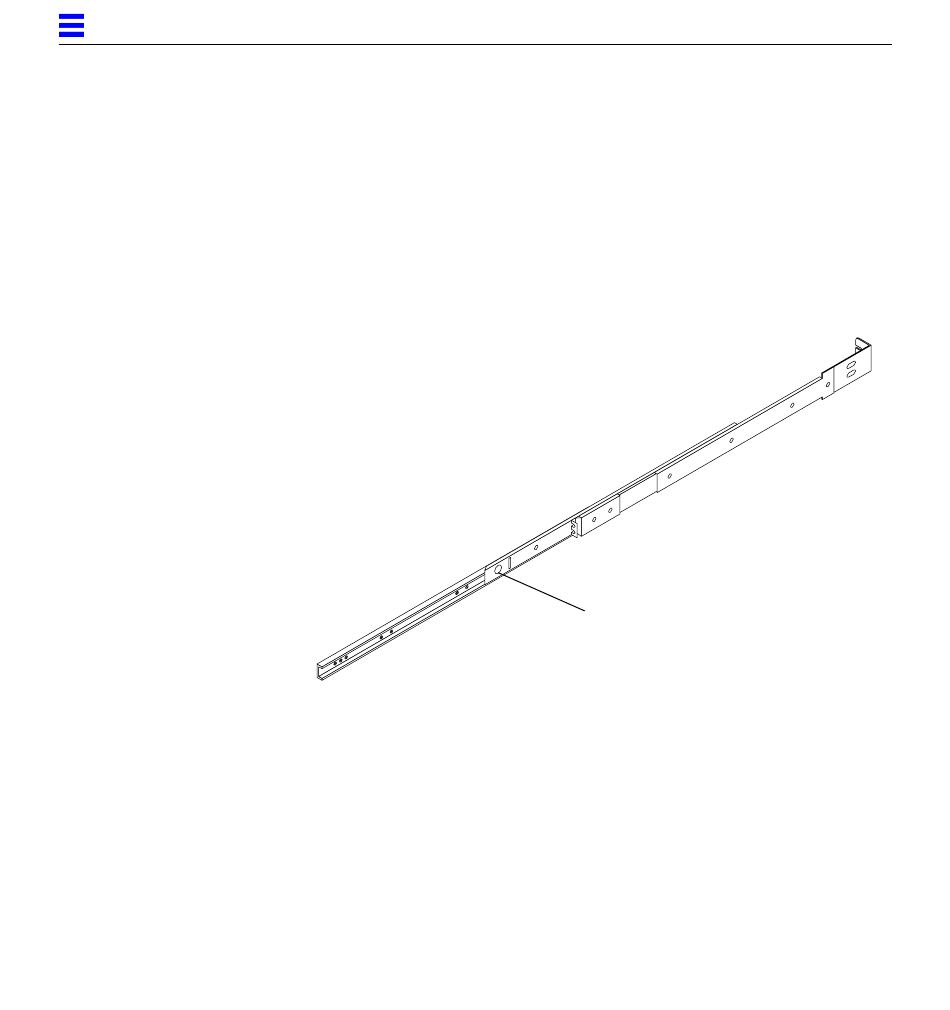

Figure 2-2

Rail Release Button on the Slide Rail

d. Continue extending the slide rail until it separates from the runner.

e. Repeat Step b through Step d for the other slide rail.

SPARCstorage Library Installation Manual—February 1995

Rail release button
