4.6.2 Installing a Removable Cartridge Holder

!
4-14
1. Locate the roller on the right end of the holder's mounting plate on the
interior back wall of the tape library.
Caution – Only use a holder designed for 8mm tape cartridges.
2. Position the holder near the mounting plate so that its single mounting
guide is on the right side.
3. Place the holder's two mounting guides on its left side into the matching
holes in the left side of the mounting plate.
4. Snap the holder into place by pressing against the end of the holder near
the roller.

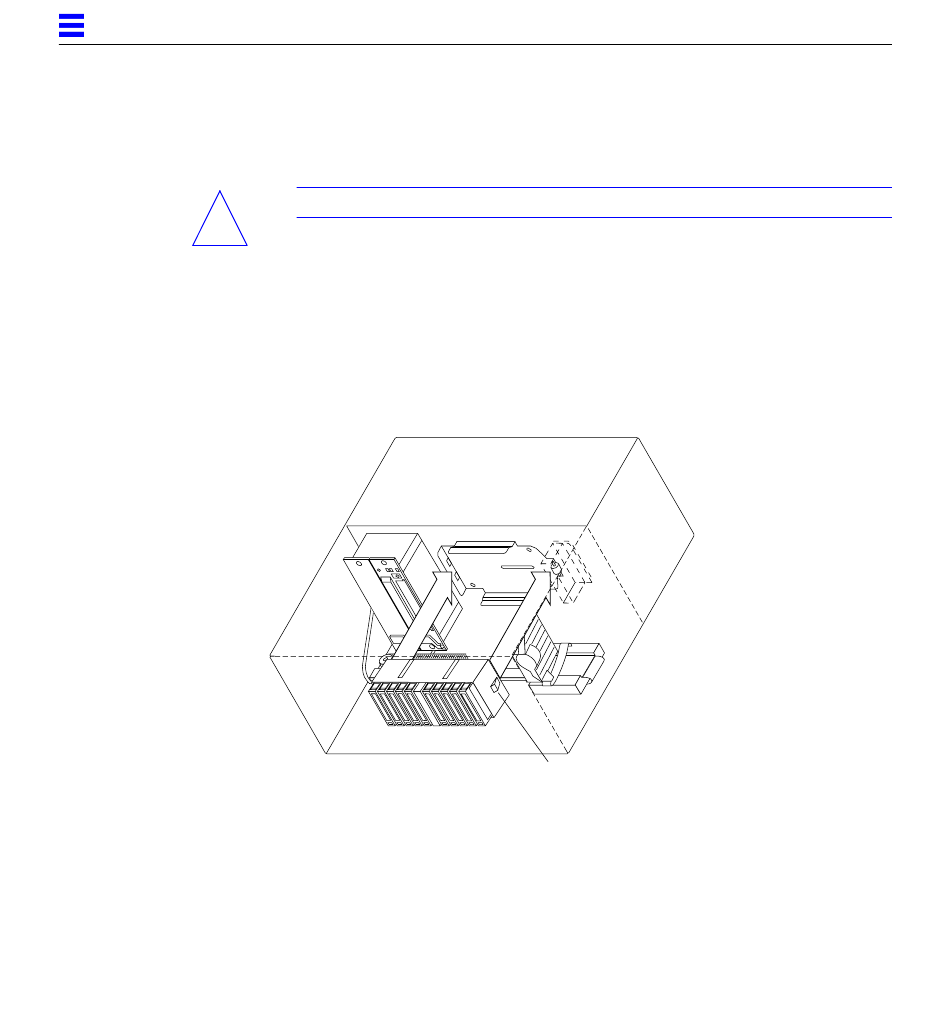

Figure 4-9 Installing the Magazine
SPARCstorage Library Installation Manual—February 1995
Single mounting guide
