Unify OpenStage 60 HFA Quick Reference Card

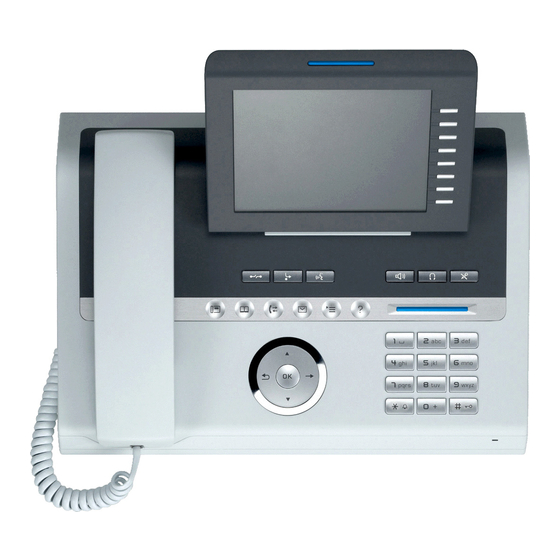

Key Layout and Operation
Function Keys and Audio Keys
q
For future use
r
Activate/deactivate
o
call forwarding
s n
End (disconnect) call Turn speaker on/off
Mode Keys and TouchSlider
t
Telephony interface
u
Phonebooks
w
Call Logs
x
Messages
v
Settings/Application Menu
y
Help function
Shining blue: mode is active
Shining white:
Run finger over TouchSlider:
for call log: new entry in call lists
Depending on context, set vo-
for voicemails: new voicemail
lumes for ringer or speaker
TouchGuide
m
Press key:
- Scroll upwards
Hold down:
- Jump to beginning
of list
h
Press key:
- Cancel function
- Delete character
left of cursor
- Go up a menu level
l
Press key:
- Scroll downwards
Hold down:
- Jump to end of list
Open Context Menu
If the context menu isn't shown, you can access the context
menu by pressing the right arrow key on the TouchGuide.
h
Use to
cancel and go
back one level.
The left arrow key escapes the selected option or function.
Icon Overview
p
Turn mute
on/off
Turn headset on/off
Display Icons in Idle State
Icon Explanation
You have received one or more new messages
One or more new entries have been added
to the call lists
X
Call Forwarding is activated for all calls
Ring tone is deactivated
Remote maintenance is activated (HFA only)
Do not disturb is activated
Phone lock is activated
i
Press key:
Bluetooth connectivity is activated
- Confirm input
- Perform action
A mobility user is logged on to the telephone
Press g key:
- Open the idle menu
- Call up the context
menu
- Go down a level
Display Icons during a Call
Run finger over in-
ner edge of ring:
Icon Explanation
- Scroll through lists
and menus
Call is active
- Adjust volume
Call has been disconnected
You have placed the call on hold
Your call partner has placed the call on hold
(e.g. consultation hold)
g
{
Use to
Secure voice connection (HFA only)
open context
}
menu.
Insecure voice connection (HFA only)
Programmable
Keys
(HFA only)
OpenStage 60/80 HFA
OpenStage 60/80 T
OpenScape Business
OpenScape Office
HiPath 3000
Quick Reference Card
