SAS908FCT-4B-S FAN COIL THERMOSTAT
Application: Heat/cool, 3speed fan, 4-pipe fan coil unit, external sensor
Installation and operation instructions
S
PECIFICATION:
Electrical Rating......................................100-240VAC 50/60HZ
Fan Relay Amps inductive..........................5(3)A
Heat/Cool Relay Amps inductive..................1(0.5)A
Set point Temperature Range...................... 5℃ to 35℃
Dimensions...........................................115mm×90mm×28mm
Color...................................................White
F
EATURE:
Large LCD display with backlight
Set points and room temperature display simultaneously
Maintains the temperature within the range of 0.5℃ to the set point
Automatic fan with adjustable 3-speed fan.
Manual change over
Inner sensor and remote sensor can automatic exchange as your requires
Never lose user setting in the event of power-off, no battery is required
Display temperature recalibrates
Sleep mode option.
O
PERATION

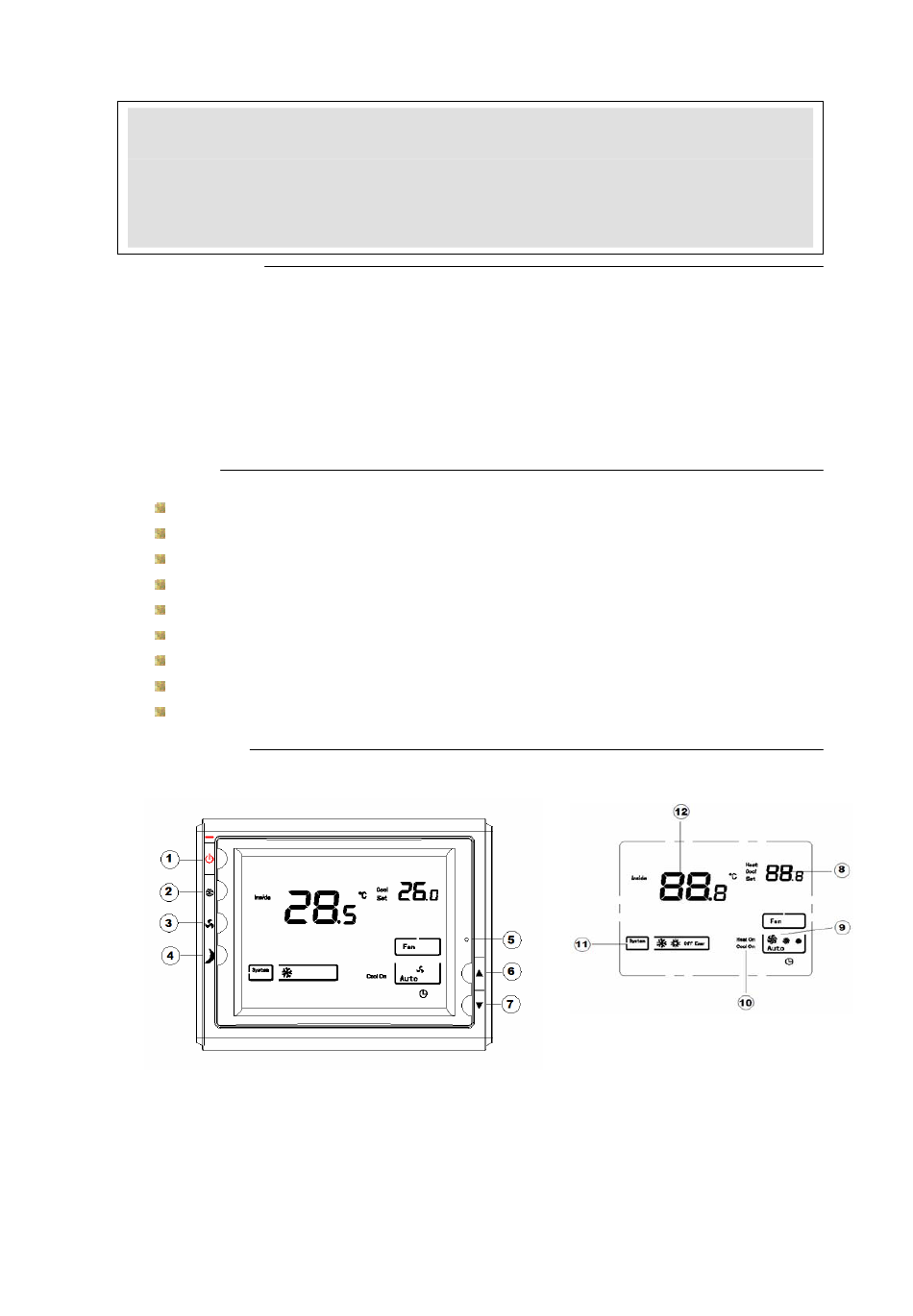

The Thermostat Buttons and Switches
(1)
Power button
System switch (HEAT, COOL)
(2)
Figure 1
Fan switch (AUTO, LOW, MED, HIGH)
(3)
(4)
Sleep Operation button
(5)
Reset switch
(6)▲
Raises Temperature setting
(7)▼
Lower Temperature setting
The Display
(8)
Setting temperature
(9)
Indicate fan switch position
(10)Heat on shows when the thermostat is calling for
heat.
Cool on shows when the thermostat is calling
for cool.
(11)
Shows system mode
(12)
Room temperature
- 1 -
Figure 2
