QUICK START GUIDE
FEATURES:
• 1/2.8" 8.0 Megapixel [4K] CMOS Image Sensor
• NDAA Compliant
• 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP
(2592 × 1944 ), 720P (1280 × 720), D1, CIF, 480 × 240 [1~30fps]
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line Crossing
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
• 1 Ch. Alarm Input + 1 Ch. Alarm Output + CVBS Out
• Remote Viewing via CMS, Edge in IE Mode, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance + IK10
• Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2 [reqs.
VT-TJB010]), Pendant Mount (VT-TPDMT-A2 [reqs. VT-TJB010]), and
In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available
See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

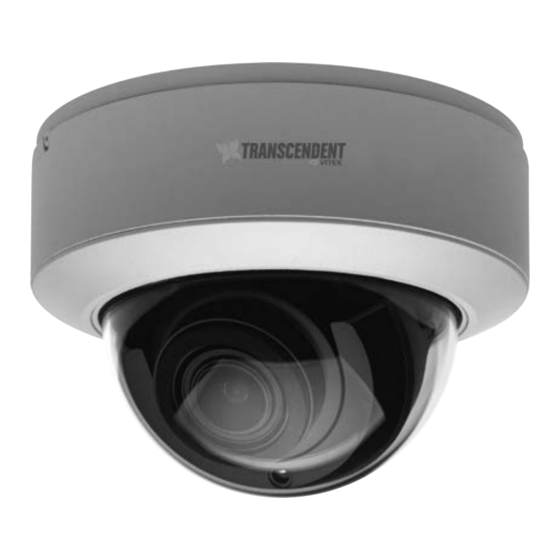

VTD-TND8RMEA
8 MegaPixel [4K] Motorized IP WDR
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Vandal Dome Camera
Also Available in Charcoal,
VTD-TND8RMEAB
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTD-TND8RMEA
Summary of Contents for Vitek Transcendent VTD-TND8RMEA
- Page 1 VTD-TND8RMEA Transcendent Series 8 MegaPixel [4K] Motorized IP WDR Vandal Dome Camera QUICK START GUIDE Also Available in Charcoal, VTD-TND8RMEAB FEATURES: • 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor • NDAA Compliant • 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 ×...
-
Page 2: Components And Accessories
Components and Accessories Camera Quick start guide 4 tapping screws PA 4×2 Rubber plug CVBS&DC ×4 Allen Key Drill template Plastic plug IN cables Overview Ethernet Connector Audio Input (MIC) Audio Output (HP) CVBS Video Output Alarm Input/Output DC12V Power Connector Zoom- Zoom+ Micro SD Card Slot... -
Page 3: Installation
C onnecting A lar m I nput/O utput A lar m I nput A L A R M -I N Sensor A L A R M -G N D A lar m O utput A L A R M -C O M A lar m A L A R M -O P E N P ower S our ce... - Page 4 3. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base. Then secure the camera to the ceiling or wall with the screws provided. 4. Before adjusting the three-axis camera mount, preview the camera on a monitor, then adjust as necessary to achieve the optimum viewing angle.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTD-TND8RMEA Detailed Specifications 1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS Image Sensor 8 MegaPixel (3840 × 2160) Image Size Resolution 8MP(3840 × 2160) [1~20fps], 6MP(3072×2048), 5MP(2592×1944), 720P(1280×720), D1, CIF, 480×240 [1~30fps] Min. Illumination 0.02 lux @ F1.6, AGC ON; 0 lux with IR, 0.01lux@F1.2, AGC ON; 0 lux with IR 1 s ~ 1 / 100000 s Electronic Shutter 2.8~12mm Motorized Varifocal Lens...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTD-TND8RMEA VT-TWMT-A2 VT-TPDMT-A2 VT-TJB010 Wall Mount - Pendant Mount Optional Junction reqs. VT-TJB010 - reqs. VT-TJB010 5.48” 5.54” 7.68” 5.48” 7.84” 5.47” VT-TPLMT VT-TCNMT VT-TFMT-L2 Transcendent Transcendent Universal Optional Semi Universal Pole Mount - Corner Mount - Flush Mount reqs.
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS NVRs UPDATED UPDATED NEWLY NEWLY Transcendent A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
