O P E R A T I N G I N S T R U C T I O N S

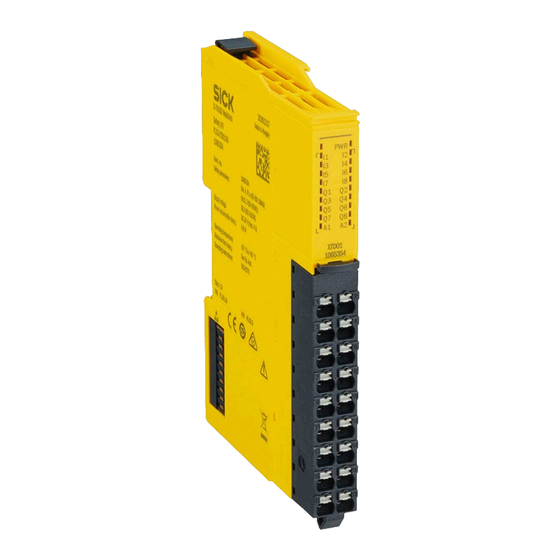

Flexi IO XTDO1
Expansion module - IO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flexi IO XTDO1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK Flexi IO XTDO1

Summary of Contents for SICK Flexi IO XTDO1

  • Page 1 O P E R A T I N G I N S T R U C T I O N S Flexi IO XTDO1 Expansion module - IO...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Check during commissioning and modifications........Operation.................... 25 Status indicators..................8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
  • Page 4 List of figures..................40 List of tables..................41 O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 5: About This Document

    Competence brochure Guide for Safe Machinery 8008007 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 6: Target Groups And Structure Of These Operating Instructions

    Indicates a situation presenting imminent danger, which will lead to death or serious injuries if not prevented. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK...
  • Page 7 The check mark denotes the result of an instruction. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 8: Safety Information

    In explosion-hazardous areas • In residential areas O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 9: Cybersecurity

    For maintenance, you must be able to assess if the machine is operating safely. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 10: Product Description

    • The gateway and IO expansion modules can be arranged arbitrarily. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 11: Overview Of The Module

    Voltage is supplied directly to the safety outputs Q via A1 / A2 on the module. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 12: Status Indicators

    "Status indicators", page 25 • "Troubleshooting", page 28 O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 13: Project Planning

    Provide an adequate clearance in front of the module (front side) for the connected cables. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
  • Page 14 • In front of the module: ≥ 25 mm O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 15: Electrical Integration

    Short circuits to 24 V DC (to High) on safety outputs. • Actuator wiring short-circuits to 24 V. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 16: Single-Channel Use Of Safety Inputs

    Thorough check during commissioning and modifications • Regular thorough check O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...
  • Page 17 Define all guidelines for the thorough check. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 18: Mounting

    Mount front connector with connected cables to the new module: First mount in the module with bent hook and then engage in the housing. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK...
  • Page 19 The front connector engages with an audible click. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 20: Electrical Installation

    Pin assignment Figure 8: Terminals on front connector O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 21: Coding

    Coding prevents the front connectors from getting mixed up. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 22: Coding Front Connector And Module

    Insert the slotted screwdriver vertically on the left next to the respective coding element. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK...
  • Page 23 However, you can continue to use the module. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 24: Commissioning

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK...

  • Page 25: Operation

    LED off. Ö LED flashes. O LED illuminates. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 26: Regular Thorough Check

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK...

  • Page 27: Maintenance

    Carry out the checks specified in the test plan of the manufacturer of the machine and the operating entity. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 28: Troubleshooting

    O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 29: Faults In The Safety Outputs (Q)

    = 0 “On” 3) 5) 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
  • Page 30 Further topics • "Status indicators", page 25 O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 31: Decommissioning

    SICK will be glad to help you dispose of these devices on request. 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 32: Technical Data

    MTTF ISO 13849-1 [years] ISO 13849-1 [years] O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 33: Safety-Related Characteristic Data - Safety Outputs (Q)

    At altitudes up to 2,000 m –25 °C … +55 °C above sea level 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 34: Voltage Supply

    UL/CSA applications: UL-listed fuse according to UL 248-14 required Overvoltage category II (EN 61131-2) O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 35: Technical Data For The Safety Capable Inputs (I)

    Max. 1 A per output puts Load capacity ≤ 0.5 µF 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 36: Dimensional Drawings

    89,6 85,5 78,4 Figure 10: Dimensional drawing O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 37: Ordering Information

    Front connector with opening for SmartPlug FLX0-ACC0300 6069666 • 16 spring terminals 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
  • Page 38 FLX3-SMPL100 2106852 Housing end cap FLX0-ACC0400 5340579 O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 39: Annex

    • Supply of Machinery (Safety) Regulations 2008 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...

  • Page 40: List Of Figures

    Eyelet on front connector................... 21 10. Dimensional drawing....................36 O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...

  • Page 41: List Of Tables

    21. Ordering information for gateway expansion module..........37 22. Ordering information for accessories................ 37 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
  • Page 42 LIST OF TABLES O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 8024583/1CUT/2022-09-23 | SICK Subject to change without notice...
  • Page 43 LIST OF TABLES 8024583/1CUT/2022-09-23 | SICK O P E R A T I N G I N S T R U C T I O N S | Flexi IO XTDO1 Subject to change without notice...
