Ikargo2 Start-Up - Danfoss Ikargo2 User Manual

User Manual
Ikargo2 Transmitter
Technical description

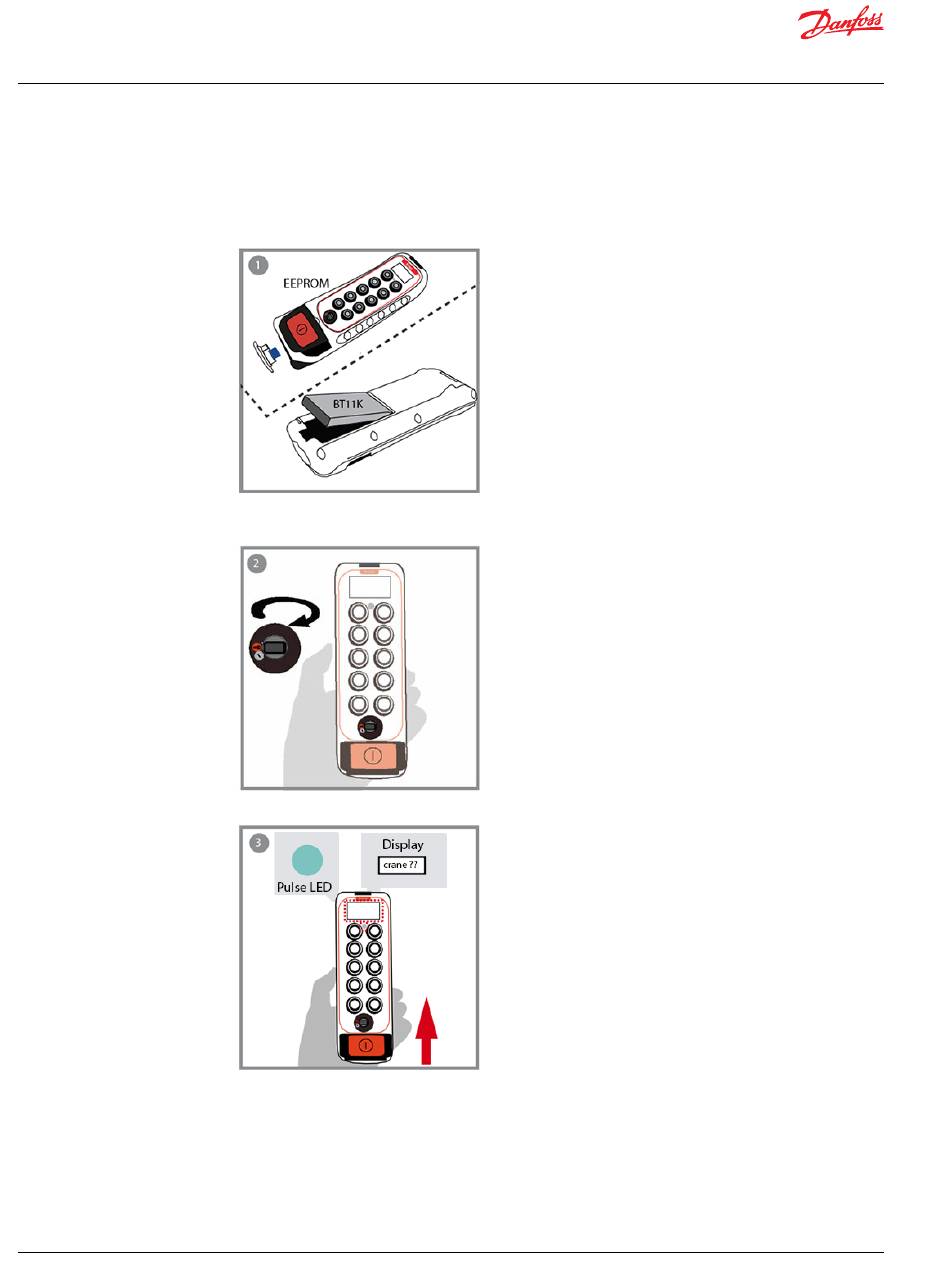

Ikargo2 Start-up

6 | © Danfoss | February 2021
In order to turn the transmitter on - OPERATION mode, follow the steps bellow:
1. Insert the charged BT11K battery model in the transmitter and ensure the EEPROM module is in place.
The battery must be charged according to the charger manual's instruction.
2. Turn the multi-key from the position 0 to the 1 position.
The multi-key cannot be removed while in the 1 position.
3. Push and pull out the stop button.
The LED will blink in blue-green colors and the battery level will appear in the display. It is
recommended to introduce the machine identifier (example: EOT crane number).
BC312438493831en-000201
