www.zeeltronic.com
info@zeeltronic.com
updated 17.07.2008
program version: 020.180906

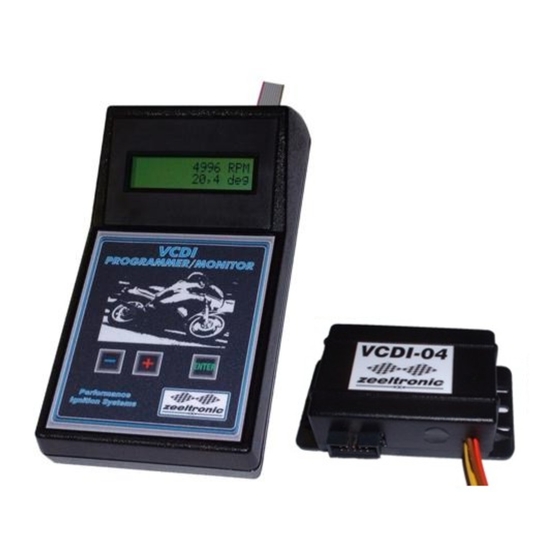

VCDI-04 AND VCDI-04s DIGITAL IGNITION
VCDI-04 is designed to work with original Yamaha flywheel generator pickups on aircooled
E model, LC and YPVS.
VCDI-04s is designed to work with original Suzuki RG500 pickup.
TECHNICAL DATA
Limit values:
minimum revs
maximum revs
minimum supply voltage
maximum supply voltage
max. supply voltage for 1 minute
Circuit is protected against reverse supply voltage (wrong connection).
Features:
- it is upgrade to existing ignition system
- ten custom programmable curves
- store and load function for ten custom curves
- easy and fast programming on the field, via hand held programmer
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 10 curve points
- three stage rev limit (retard timing, reduced spark, spark off)
- signal delay compensation
- instant monitoring of rev's and angle, via LCD(hand held programmer)
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
Very important!
Resistor spark plugs must be used, because they produce less electromagnetic disturbances.
USER MANUAL
200 RPM
20000 RPM
8 Volts
20 Volts
40 Volts
Advertisement
Table of Contents
Related Manuals for zeeltronic VCDI-04
Summary of Contents for zeeltronic VCDI-04
- Page 1 020.180906 USER MANUAL VCDI-04 AND VCDI-04s DIGITAL IGNITION VCDI-04 is designed to work with original Yamaha flywheel generator pickups on aircooled E model, LC and YPVS. VCDI-04s is designed to work with original Suzuki RG500 pickup. TECHNICAL DATA...
- Page 2 HOW TO ENTER MENU VCDI must be connected to power supply, or start the bike. Connect VCDI unit to programmer unit and wait few seconds for activation of programmer and then press enter . With pressing + or - you can move through menu and with pressing enter you can choose.
- Page 3 Important! To avoid wrong processing, don't make unreasonable curve course. Every time you make any changes to ignition curve, it is automatically saved to #0 position. Then you can save it to any other position number from #1 to #10. Curve Example with six curve points: 5.1.
- Page 4 Change REV LIMIT Enter menu and move to Rev Limit with pressing + or - and then press enter . Now you can change rev limit with pressing + or - (in 100 rpm steps) and then press enter . Set STATIC ANGLE Enter menu and move to Static Angle with pressing + or - and then press enter .
- Page 5 MECHANICAL SETTINGS (Static Angle) Static Angle is ignition advance angle, set with stator (generator). Measure this angle with dial gauge. This measured Static Angle is your maximum advance angle you can set with VCDI. For example: Measured Static Angle = 26.2deg (this angle you must enter in VCDI) Important! Every time you dismantle stator or flywheel, you must measure your Static Angle again!
- Page 6 MONITORING Connect VCDI unit to programmer unit and wait few seconds for activation of programmer. Fist information displayed on the programmer is software version. With programmer you can watch revs and calculated advance ignition angle. Information! You can connect or disconnect VCDI unit from processor unit any time you want, without any harm.
- Page 7 WIRING aircooled and LC: Important! Power supply for VCDI must be connected to brown wire in fuse box - not directly to battery. VCDI must be disconnected from power supply, with moving ignition switch to off position. VCDI wont work, if your battery voltage is below 8 Volts. Very important! Resistor spark plugs must be used, because they produce less electromagnetic disturbances.
- Page 8 RZ350YPVS: Important! VCDI must be disconnected from power supply, with moving ignition switch to off position. VCDI wont work, if your battery voltage is below 8 Volts.
