USER MANUAL

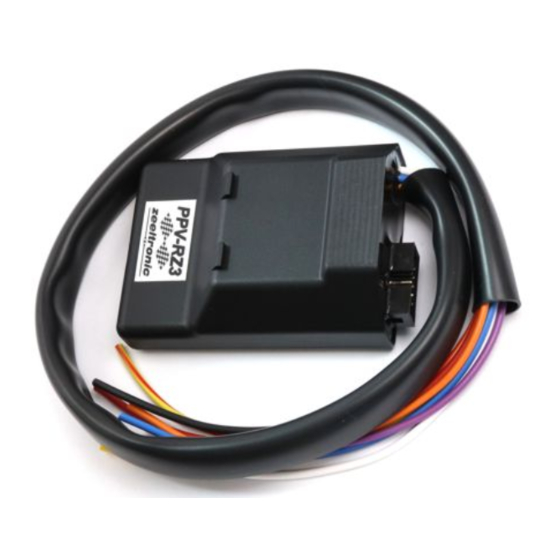

PPV-RZ3 PROGRAMMABLE POWER VALVE CONTROLLER
(PROGRAMMABLE EXHAUST VALVE CONTROLLER)
PPV-RZ3 is designed to work with 5 wire PV servo motors. Servo motor must have
potentiometer position sensor.
For reading revs it has universal input, which can accept wide range of signals.
TECHNICAL DATA
Limit values:
minimum supply voltage 8 Volts
maximum supply voltage 20 Volts
max. supply voltage for 1 minute 40 Volts
Circuit is protected against reverse supply voltage (wrong connection).
Features:
- two custom programmable curves
- PV map switch for switching PV curve while riding
- easy and fast programming on the field, via hand held programmer, or PC
- programming while machine running - you can immediately see effects
- each curve can be set in 2 to 8 curve points
- programmable deviation
- programmable max close and max open positions
- instant monitoring of valve position, via LCD(handheld programmer)
- fast processing for high accuracy
- self test on power-up
- error detecting (position sensor failure, servo motor failure)
- protection for short connection on servo motor output
Very important!
Resistor spark plugs must be used, because they produce less electromagnetic
disturbances.
