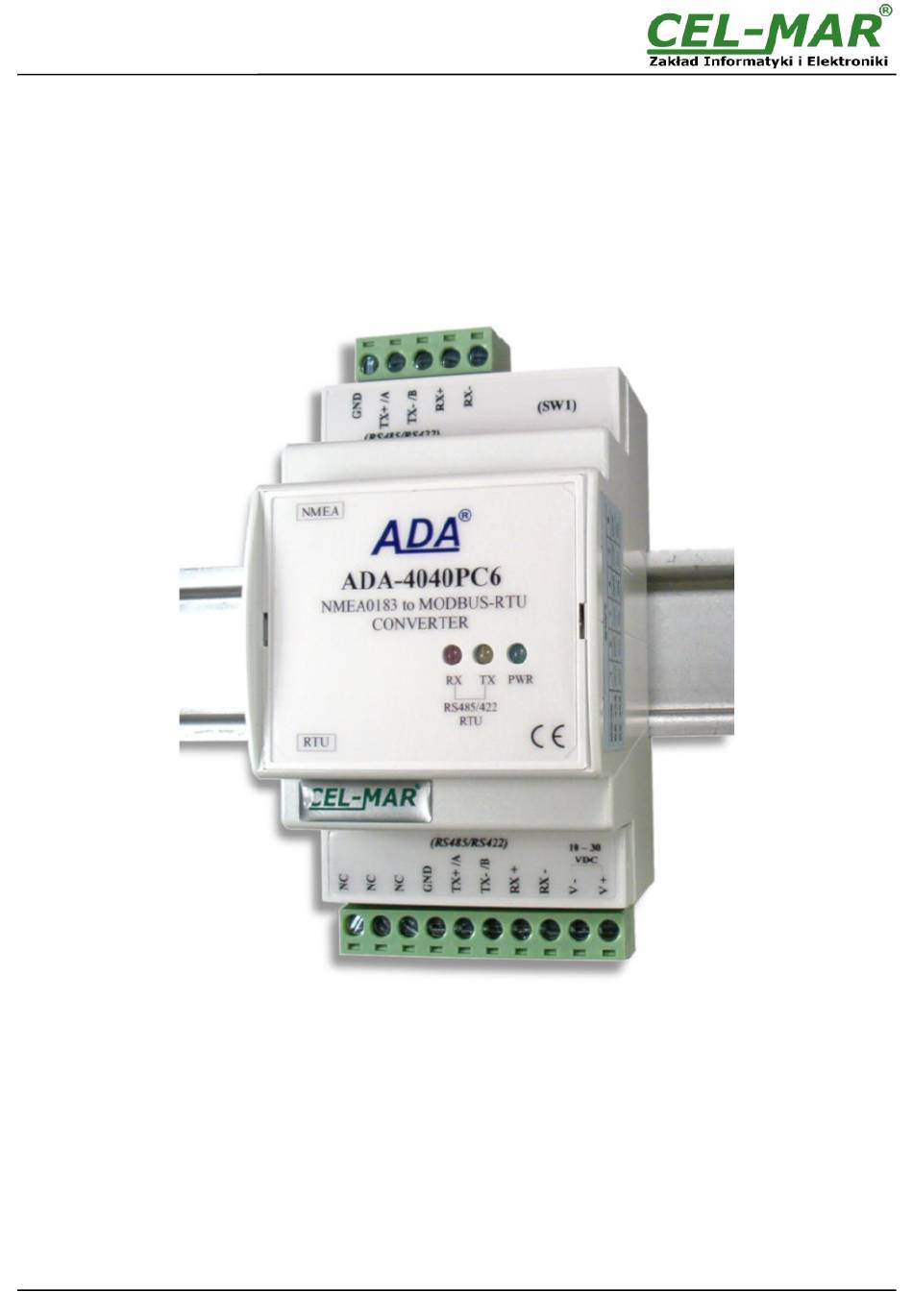

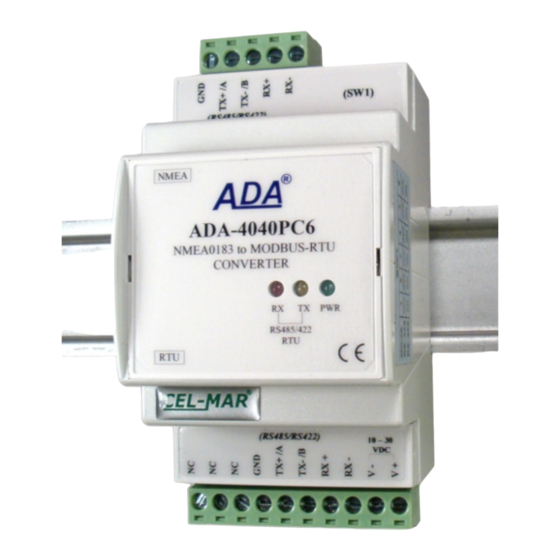

- Page 1 ADA-4040PC6 User manual ADA-4040PC6 NMEA0183 to MODBUS-RTU Protocol Converter Copyright © 2001-2022 CEL-MAR sp.j. io_ada-4040pc6_v1.05_en...
-
Page 2: Table Of Contents
ADA-4040PC6 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION............................... 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................. 3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
1.1. WARRANTED INFORMATION ADA-4040PC6 converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes. -
Page 4: Description
Galvanic isolation of ADA-4040PC6, protect the system structured on RS422/485 bus and increases its reliability. ADA-4040PC6 supports the asynchronous baud rate up to 230.4 kbps through four or two pairs of twisted-pair cables connected to screw terminals. The converter use RX+, RX-, TX+/A, TX-/B lines for functioning. It is possible to connect 32 devises to RS485/RS422 network constructed on base of ADA-4040PC6, working at the half duplex or full duplex mode. -
Page 5: Isolation
- not supply converter from power circuit device that generates large impulse interference such as transmitters, contactors. 3.1. ASSEMBLING The cover of ADA-4040PC6 is adapted to assembly on TS-35 (DIN35) rail. To install the converter, should be mounted on the rail upper part of the cover then press bottom part to hear characteristic „Click” sound. -
Page 6: Nmea0183 Device Connection To Rs485(4W) Modbus-Rtu Bus
MODBUS-RTU MODBUS-RTU RS422(4W) 4800Bd/8/N/1 GPS NAVIGATOR FURUNO GP-150 NMEA 0183 Fig 5. Example connection of ADA-4040PC6 to RS485(4W) 4-wire bus and FURUNO* GP-150 (NMEA0183). 3.3.2. NMEA0183 DEVICE CONNECTION TO RS485(2W) MODBUS-RTU BUS. RS485(2W) BUS RS485 / RS422 19200Bd/8/N/1 connector MODBUS-RTU... -
Page 7: Line Termination Rt
2W, e.g. HDR-15-24. Power cable from DC power supplies to device can not be longer than 3m. Should connect positive (+) end of DC power supplies to V+ device terminal and negative (-) end to V- on terminal block. ADA-4040PC6 has protection against power supply reverse connection. - Page 8 First should be set the number of [COM port] [1] for communication with the converter, then readout the configuration from ADA-4040PC6 memory, using the button [Read configuration] [2] and make the proper changes of each interfaces setting, as below.
-
Page 9: Factory Default
SW1-2 After microswitch setting, should be restarted ADA-4040PC6, by turning OFF and then ON the power supply. The yellow LED will light continuously and the converter will be in Emergency Firmware Update mode. Now follow the description in the above point. -
Page 10: Operation
To check those counters press the button [Read transmission errors], and to delete (zeroing of counters in the memory of the converter) press [Delete transmission errors] In case of parity errors or frame errors, should be checked the ADA-4040PC6 converter's configuration and correctness connection of RS485 bus to RTU and NMEA converter ports. - Page 11 ADA-4040PC6 Address Registers Registers Attribute Value Address description 30001 TALKER ID = GP 16-bit register BYTE HI = 0x47 = 71 (ASCII – G ) BYTE LO = 0x50 = 80 (ASCII – P ) 30002 16-bit register ZDA | UTC HHMM:143640.00...
- Page 12 ADA-4040PC6 Address Registers Registers Attribute Value Address description 30020 VTG | COURSE REFERENCE: 309.62,T, ,M, 16-bit register CH[2] VTG | COURSE REFERENCE WORD: 0x544D BYTE HI = 0x54 = 84 (ASCII – T ) - TRUE NORTH BYTE LO = 0x4D = 77 (ASCII – M ) - MAGNETIC NORTH 30021 VTG | KNOTS: 0.131,N,...
- Page 13 ADA-4040PC6 Address Registers Registers Attribute Value Address description VLW | TOTAL CUMULATIVE WATER DISTANCE DWORD = 0x05F5 FC88 DW=1000 WORD LO = FC88; BYTE HI = 0xFC; BYTE LO = 0x88 30036 VLW | TOTAL CUMULATIVE WATER DISTANCE DWORD = 0x05F5 FC88 16-bit register WORD HI = 0x05F5;...
-
Page 14: Converter Modbus Registers Table In - Readout By Function 03 (4X - References) Holding Registers
ADA-4040PC6 Address Registers Registers Attribute Value Address description BYTE LO = C–°C, H–%RH, V–Volts (ASCII) | VALUE UNIT CH[2] 30055 XDR | SENSOR3 – IDENTIFIER 16-bit register BYTE HI = A (ASCII) | ID CHAR1 BYTE LO = 3 (ASCII) | ID CHAR2... - Page 15 ADA-4040PC6 Address Registers Registers Attribute Value Address description 40013 GLL | UTC TIME HHMM: 135107.00 16-bit register BYTE HI = HH = 0x0D = 13 - hours BYTE LO = MM = 0x33 = 51 - minutes 40014 GLL | UTC TIME SS.SS: 135107.00...
- Page 16 ADA-4040PC6 Address Registers Registers Attribute Value Address description VBW | LONGITUDINAL GROUND SPEED WORD = -9782 = 0xD9CA BYTE HI = 0xD9, BYTE LO = 0xCA DW=10 40030 VBW | TRANSVERSE GROUND SPEED: 1000.0, 16-bit register VBW | TRANSVERSE GROUND SPEED WORD: 10000 = 0x2710...
-
Page 17: Modbus Registers Table Of Proprietary Nmea0183 Sentence Manufacturers
ADA-4040PC6 Address Registers Registers Attribute Value Address description BYTE HI = A (ASCII) | ID CHAR1 BYTE LO = 1 (ASCII) | ID CHAR2 CH[2] 40048 XDR | SENSOR2 – VALUE CD AB 32-bit register INT32 : CD DW=1000 40049 XDR | SENSOR2 –... -
Page 18: Converter Modbus Registers Table In - Readout By Function 03 (4X - References) Holding Registers
ADA-4040PC6 31005 1004 16-bit register TSX5 | POWER [kW] – VALUE LO: CD U32LO UINT32 : CD AB DW=1 31006 1005 16-bit register TSX5 | POWER [kW] – VALUE HI: AB U32HI UINT32 : CD AB DW=1 8.2.2. CONVERTER MODBUS REGISTERS TABLE IN - READOUT BY FUNCTION 03 (4X –... -
Page 19: Readout Talker Id From 16-Bit Register [4X / 3X-References]
ADA-4040PC6 Algorithm 2.Readout register is saved to regular type variable 16-bit (short int) and then divide by the factor DW, received change of the dividing it is a number of the hundredth parts of the measurement value. // The fragment of code in C language (VS6.0) presenting above algorithm short int siMeasurementReg;... -
Page 20: Readout Utc Time From Zda Sentence With 16-Bit Register [4X / 3X-References]
02 – unknown data address 03 – unknown data value 04 – NMEA0183 device not respond or is faulty CRC-Lo 1-Byte CRC-Hi 1-Byte 8.5. EXCEPTIONS OF THE MODBUS-RTU PROTOCOL ADA-4040PC6 in case of received MODBUS-RTU frame, includes: - unsupported function, - unknown data address,... -
Page 21: Versions
04 – NMEA0183 device not respond or is faulty CRC-Lo 1-Byte CRC-Hi 1-Byte 9. VERSIONS ADA-4040PC6 - Version: Order example: Product Symbol: ADA-4040PC6-1-23 Standard 1 – standard version, 3-way galvanic isolation: 23 – 1kV=, 3-way galvanic isolation, 1kV= 3kV= 10. SPECIFICATION TECHNICAL DATA... - Page 22 ADA-4040PC6 Safety requiring According to the PN-EN60950 norm. Environment Commercial and light industrial. Environmental Parameters Operating temperature - 30°C ÷ 60°C Humidity 5 ÷ 95% - non-condensing Storage temperature -40 ÷ 70 °C Casing 53 x 90 x 62 mm...
- Page 23 ADA-4040PC6...
- Page 24 Thank you for purchasing CEL-MAR Company products. We hope that this user manual helped connect and start up the ADA-4040PC6 converter. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
