Summary of Contents for CEL-MAR ADA-4010

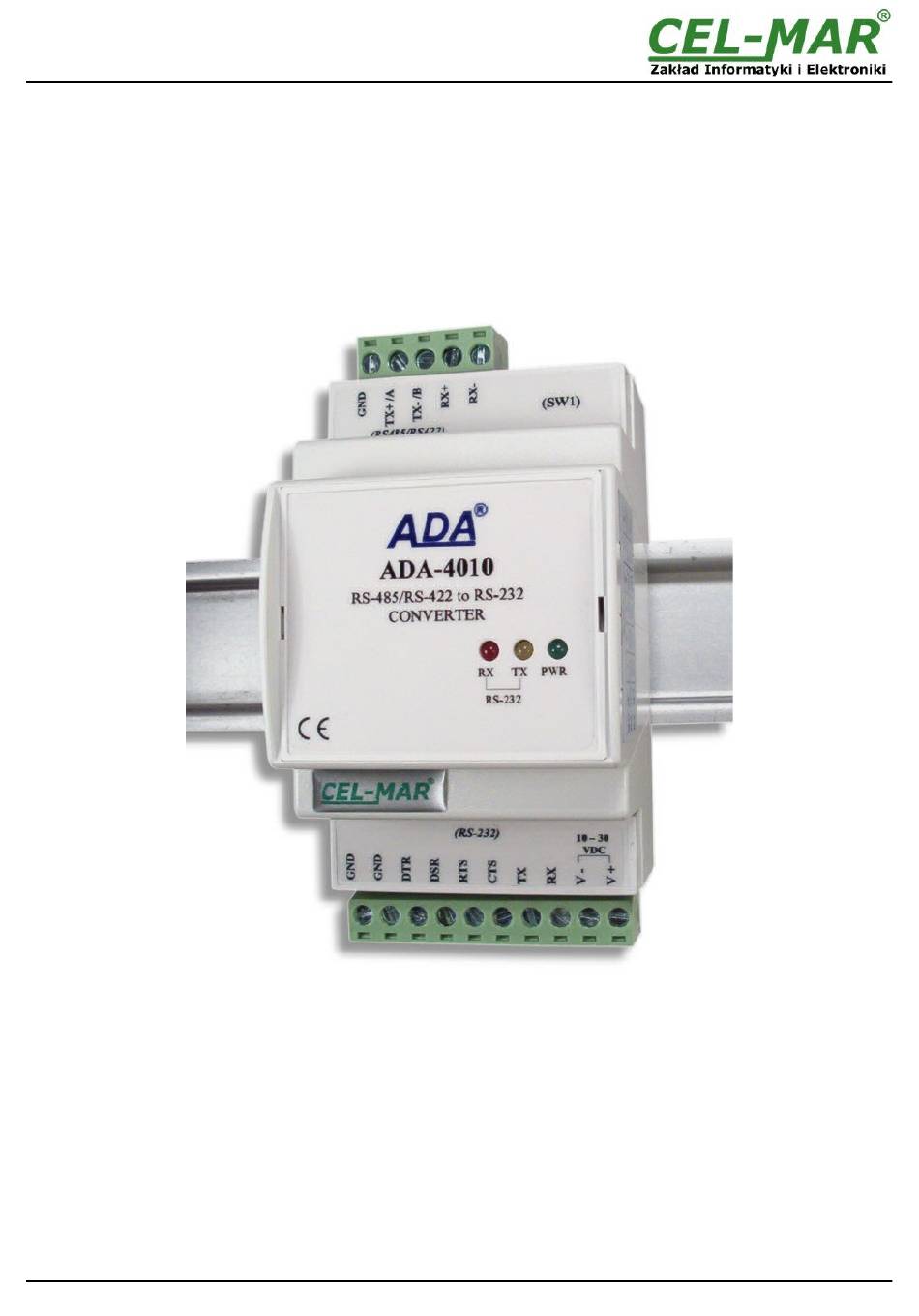

- Page 1 ADA-4010 User manual ADA-4010 RS-485 / RS-422 to RS-232 Converter Copyright © 2001-2020 CEL-MAR sp.j. io_ada-4010_v3.23_en...
-
Page 2: Table Of Contents
ADA-4010 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION..............................3 1.2. GENERAL CONDITIONS FOR SAFE USE........................... 3 1.3. CE LABEL...................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
1.1. WARRANTED INFORMATION The ADA-4010 converter is covered by a two year warranty from date of sale. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes. If the product does not function (is damaged), or not operate in accordance with the instructions will be repaired. -
Page 4: Description
RS232 port and support the asynchronous transmission data with baud rate 230,4 kbps through four or two pairs of twisted-pair cables connected to screw terminals. ADA-4010 uses RX, TX, RTS and GND signals for operating, and RTS signal is looped with CTS and DTR with DSR, inside in the converter. -
Page 5: Isolation
- not supply converter from power circuit device that generates large impulse interference such as transmitters, contactors. 3.1. ASSEMBLING ADA-4010 converter case is adapted to assembly on TS-35 (DIN35) rail. To install converter should mount device on the rail upper part of the case then press bottom part to hearing characteristic „Click” sound. -
Page 6: Connection To Rs485/Rs422 Bus
RS485/RS422 DB-9M/DTE DB-9F/DCE (2) Rx Tx (2) Tx+/ A (3) Tx Rx (3) Tx-/ B (5) GND GND (5) RS232 RS232 RS232 SLAVE-1 SLAVE-2 SLAVE-3 Fig. 6. ADA-4010 connection to RS485(4W) 4-wires bus and galvanic separation of SLAVE device... -
Page 7: Connection To Rs485(2W) Bus
3.2. POWER SUPPLY The power supply to ADA-4010 should be DC (regulated) from the scope 10 V= to 30V= and nominal power more 2W, e.g. DR-15-24. The power cable from DC power supplies to the device must not be longer than 3m. Observe the polarity, connect positive (+) of DC power supplies to V+ and negative (-) end to V- terminal. -
Page 8: Configuration
The SW1 is located next to 5-pins screw terminal block(Fig.1) under the cover. For setting, remove the cover and use small, flat screwdriver. 4.1. OPERATING MODE The setting of SW1 micro-switch for operating mode of ADA-4010 is shown in the Table 1 (below). In case of any questions, contact the support: support@cel-mar.pl. Table 1. -
Page 9: Versions
Electronic versions: Basic, Special, Galvanic isolation: Order example: 1kV= 2-way Product Symbol: ADA-4010-1-23-3 1 – basic version of electronic, 1kV= 3-way 2 – galvanic isolation 1kV=, 3-way 3kV= 2-way 3 – cover without inlets, plug-in screw terminal block, 3kV= 3-way Terminal &... -
Page 10: Specification
ADA-4010 8. SPECIFICATION TECHNICAL DATA Transmission Parameters Interface RS-485/422 RS-232 Connector Screw terminal block - max. Ø 2,5mm Screw terminal block - max. Ø 2,5mm Max. Line length 1200 m Up to 15 m Max. number of connected device 1-pair or 2-pair twisted cable, UTP... - Page 11 ADA-4010...
- Page 12 Thank you for purchasing CEL-MAR Company product. We hope that this user manual helped connect and start up the ADA-4010 converter. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Ethernet, Wi-Fi, Current Loop, Fibre-Optic Converters and other.
