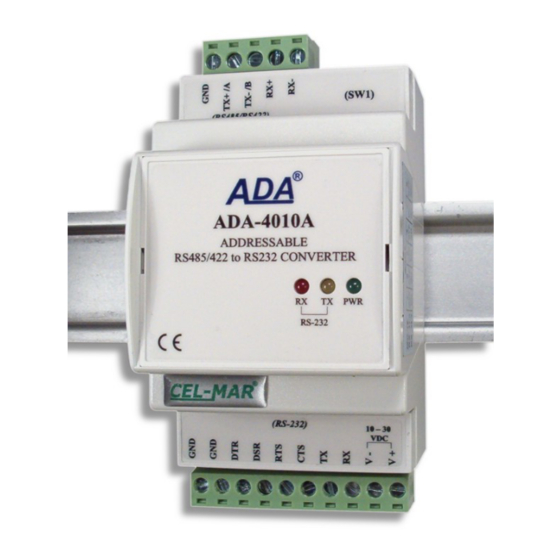

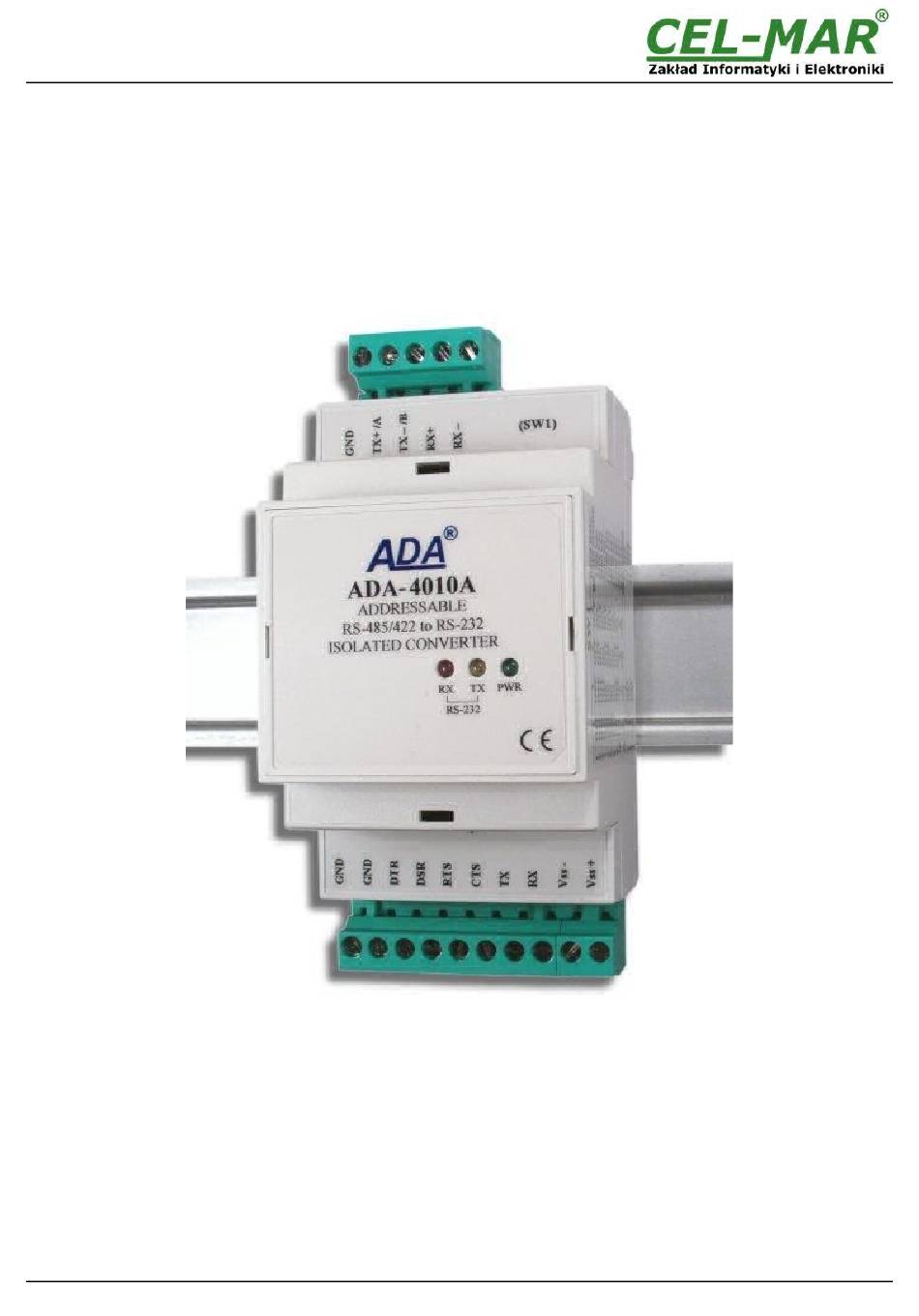

- Page 1 ADA-4010A User Manual ADA-4010A RS-485/RS-422 to RS-232 Addressable Converter Copyright © 2001-2009 CEL-MAR sp.j. io_ada-4010a_en_v3.12...
-
Page 2: Table Of Contents
ADA-4010A Contents 1. GENERAL INFORMATION ..................................3 1.1. GUARANTEE INFORMATION................................ 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND CONSERVATION..............................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. DESCRIPTION....................................4 3. -
Page 3: General Information
1.1. GUARANTEE INFORMATION ADA-4010A converter is covered by a two year warranty from date of sale. The guarantee isn't covering damage to that come from improper using, the wear and tear or unauthorized changes. If the product doesn't work according to the instruction, he will be repaired or replaced on described below principles. -
Page 4: Description
It is not required for operating, power supply form RS232 port, converter supports asynchronous baud rate up to 230,4 kbps through one or two pair of twisted cable of RS485/422 interface. ADA-4010A is equipped with screw terminal block for connection of RS232, RS485/422 and power supply. -
Page 5: Installation
– 3.1. CONVERTER ASSEMBLING ADA-4010A case is adapted to assembly on TS-35 (DIN35) rail. To install converter you should mount device on the rail upper part of the case then press bottom part to to hearing characteristic „Click” sound. 3.2. COMPUTER CONNECTION To connect ADA-4010A converter to: –... -
Page 6: Rs485(4W) Bus Connection
GND (5) RS232 RS232 RS232 SLAVE SLAVE SLAVE 9600Bd/8/E/1 2400Bd/8/N/2 19200/Bd/7/N/2 Fig 5. Example connection of ADA-4010A to RS485(4W) 4-wire bus and galvanic separation SLAVE device 3.3.2. RS485(2W) BUS CONNECTION PC or ADA-I1040 MASTER device RS485(4W) bus RS232 RS232 Screw 9600Bd/8/O/1... -
Page 7: Line Termination Rt
You should connect positive (+) end of DC power supplies to Vss+ device terminal and negative (-) end to Vss- on terminal block. ADA-4010A has protection against power supply reverse connection and if after connection power supply on front panel will not lighting green led PWR, You should check correctness of power supply connecting (polarization). -
Page 8: Configuration By Using Adaconfig
5.2. CONFIGURATION BY USING ADACONFIG You can make the configuration of ADA-4010A converter by using ADAConfig Software - selling with converter. You have to connect converter to computer and power supply to make the configuration. If the PWR LED lights you should set the section of SW1 switch to configuration mode. -
Page 9: Emergency Software Updating
SW1-2 After micro-switch setting you should restart the converter by turning OFF and then ON ADA-4010A power supply. If the yellow LED is light continuously the converter will be in emergency software updating mode. Now you have to follow on the description in item 5.2 . -
Page 10: Operating In Addressable Mode
7.2. OPERATING IN ADDRESSABLE MODE In this mode ADA-4010A operates as baud rate and data format converters and let you to connect not addressable RS322 interface devices transmitting data with different baud rates and data frames format to RS485 Bus, and thus let to cooperate with not addressable devices. -
Page 11: Appendix A. Terminal Description Of Rs232 Interface
ADA-4010A APPENDIX A. TERMINAL DESCRIPTION OF RS232 INTERFACE. Terminal Signal Description ADA-4010A (TD) Transmitted Data Transmitter (RD) Received Data Receiver (RTS) Request To Send Looped with CTS (CTS) Clear To Send Looped with RTS (DSR) Data Set Ready Looped with DTR... -
Page 12: Appendix C. Versions
Thank you for purchasing CEL-MAR Company products. We hope that this user manual helped You to connect and start up the ADA-4010A converter. We also wish to inform You that we are a manufacturer of the widest range of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters, 1-Wire and other. - Page 13 ADA-4010A Technical information support@cel-mar.pl...
