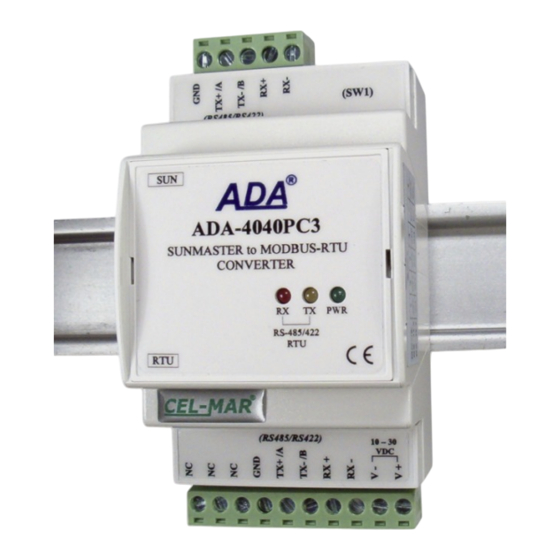

- Page 1 ADA-4040PC3 User manual ADA-4040PC3 SunMaster to MODBUS-RTU protocol converter Copyright © 2001-2020 CEL-MAR sp.j. io_ada-4040pc3_v1.04_en...
-
Page 2: Table Of Contents
ADA-4040PC3 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION..............................3 1.2. GENERAL CONDITIONS FOR SAFE USE........................... 3 1.3. CE LABEL...................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
1.1. WARRANTED INFORMATION ADA-4040PC3 converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes. -
Page 4: Description
RS485 bus. Galvanic isolation of ADA-4040PC3, protect the system structured on RS422/485 bus and increases its reliability. ADA-4040PC3 supports the asynchronous baud rate up to 230.4 kbps through four or two pairs of twisted-pair cables connected to screw terminals. The converter use RX+, RX-, TX+/A, TX-/B lines for functioning. It is possible to connect 32 devises to RS485/RS422 network constructed on base of ADA-4040PC3, working at the half duplex or full duplex mode. -
Page 5: Isolation
- not supply converter from power circuit device that generates large impulse interference such as transmitters, contactors. 3.1. ASSEMBLING The cover of ADA-4040PC3 converter is adapted to assembly on TS-35 (DIN35) rail. To install the converter, should be mounted on the rail upper part of the cover then press bottom part to hear characteristic „Click” sound. -
Page 6: Rs485 Network Connection
Fig 5. 2-Wire connecting ADA-4040PC3 to PC with the use of ADA-I9140 USB to RS485/RS422 3.3. RS485 NETWORK CONNECTION RS485/RS422 interface in ADA-4040PC3 converter is described as: Tx+/A, Tx-/B, Rx+, Rx-. Connection of ADA-4040PC1 to RS485(4W) and RS485(2W) network are shown bellow. -
Page 7: Connection Of Sunmaster Inverter To Rs485(2W) Bus Modbus-Rtu
QS/XS/XL/CS/TL SUNMASTER Fig 7. Example connection of ADA-4040PC3 to RS485(2W) 2-wire bus and SunMaster Inverter to ADA-4040PC3 3.3.3. LINE TERMINATION Rt The application of Line Termination (terminator) Rt = 120 ohms will reduce electrical reflection in data line at high baud rate. It is not needed below 9600Bd. -
Page 8: Troubleshooting
5.2. CONFIGURATION BY USING ADACONFIG The configuration of ADA-4040PC3 converter can be made by the use of ADAConfig Software - selling with converter. To make the configuration, connect converter to computer (see pt. 3.2) and power supply. If after power, on the front panel is not lit green LED PWR, check the power connection (polarity). -
Page 9: Factory Default
ADA-4040PC3 Fig. 8. View of ADAConfig software interface 5.3. FACTORY DEFAULT In case of faulty functioning ADA-4040PC3, can be restored the factory default setting of the converter internal registers. Set SW1 microswitch mode as in the table below. SW1-1 SW1-2 Disconnect the power and after while connect again the power. -
Page 10: Emergency Firmware Update
SW1-2 After microswitch setting, should be restarted ADA-4040PC3, by turning OFF and then ON the power supply. The yellow LED will light continuously and the converter will be in Emergency Firmware Update mode. Now follow the description in the above point. -
Page 11: Operation
Frames of MODBUS protocol having the errors CRC are rejected by the converter. Frames of SunMaster having the errors CRC are also rejected by the converter. In case of no respond from SunMaster inverter ADA-4040PC3 converter responds exception MODBUS protocol (described in pt. EXCEPTIONS OF MODBUS-RTU PROTOCOL) -
Page 12: Registers Actual Values Measurements And Condition Inverter , Readout By Function 03 (4X - References) Holding Registers
ADA-4040PC3 Address Registers Registers Attribute Value Address description 30004 IsolH 16-bit register IsolL 16-bit solar panel current DC measurement 30005 FacH 16-bit register FacL 16-bit network voltage AC frequency measurement 30006 UacH 16-bit register UacL 16-bit network voltage AC measurement... -
Page 13: Frame Structure Of Modbus-Rtu Protocol
ADA-4040PC3 Address Register Registers Attribut Value description Address 40011 TempH=0x00 16-bit register TempL 8-bit inverter's internal temperature 40012 Hi=0x00 16-bit register TonH (Lo) 40013 TonM 16-bit register TonL 24-bit operating hour counter 40014 Trecl/UocH Status1, bit4=1 : 16-bit register Trecl/UocL Status1, bit4=0 :... -
Page 14: Readout Of Current Measured Value Stored In Two 16-Bit Registers [4X / 3X-References]
ADA-4040PC3 Algorithm 2. Readout register is saved to regular type variable 16-bit (short int) and then divide by the factor DW, received change of the dividing it is a number of the hundredth parts of the measurement value. // Fragment of code in C language (VS6.0) presenting above algorithm short int siMeasurementReg;... - Page 15 ADA-4040PC3 The registers with the measurement value are in the integer format of 32-bit sign (in C/C++ type int). The actual measurement value is obtained from the read register using the following algorithms, using the appropriate factor value DW (see table above) Algorithm 1.
-
Page 16: Readout Of Solar Panel Voltage Value Usol From Inverter [4X / 3X-References]
ADA-4040PC3 Byte no Designation Size Value [hex] Function code 1-byte 83 / 84 Error code 1-byte 01 - unknown function 02 - unknown data address 03 - unknown data value 04 - SunMaster inverter not respond or is faulty CRC-Lo... -
Page 17: Readout Of Current Value Iac Alternating Voltage Network, Connected To Inverter [4X / 3X-References]
ADA-4040PC3 CONNECTED TO INVERTER [4X / 3X-REFERENCES] The measurement value of network voltage and alternating voltage connected to the inverter, readout from 16-bit register Uac MODBUS-RTU (see p.8.1.) is presented in the format integer 16-bit with sign (in C/C++ type short int). -
Page 18: Readout Of Value Inverter Temperature [4X / 3X-References]
ADA-4040PC3 The actual measurement value expressed in [kWh] AC is obtained from the read register according to the above algorithms, using the appropriate factor value DW for register Eac (see the Table of divider values DW above). Eac = 0x000000DF => 223/100 => 2,23 [kWh] AC 8.3.1.10. -
Page 19: Exceptions Of The Modbus-Rtu Protocol
04 – SunMaster inverter not respond or is faulty CRC-Lo 1-Byte CRC-Hi 1-Byte 9. VERSIONS ADA- 4040PC3 - Version: Order example: Standard Product Symbol: ADA-4040PC3-1-23 1 – standard version, 3-way galvanic isolation: 23 – 1kV=, 3-way galvanic isolation, 1kV= 3kV= 10. SPECIFICATION TECHNICAL DATA Transition Parameters Interface... - Page 20 Thank you for purchasing CEL-MAR Company products. We hope that this user manual helped connect and start up the ADA-4040PC3 converter. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
