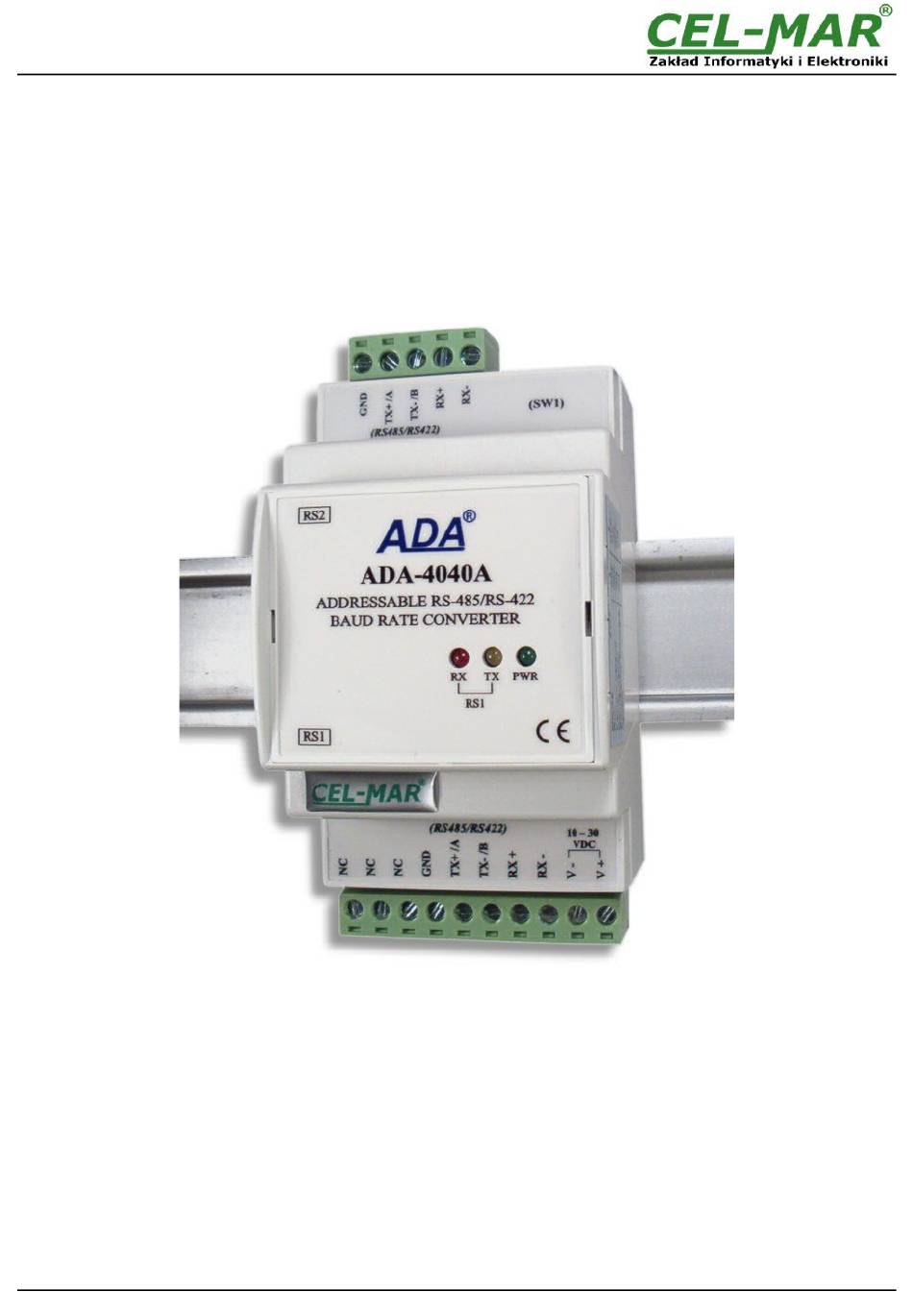

- Page 1 ADA-4040A User manual ADA-4040A Addressable RS485 / RS422 Baud Rate Converter Copyright © 2001-2017 CEL-MAR sp.j. io_ada-4040a_v4.02_en...
-
Page 2: Table Of Contents
ADA-4040A Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION............................... 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
1.1. WARRANTED INFORMATION ADA-4040A converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes. -
Page 4: Description
RS-422 devices to R-S485 bus without any interference. Can be adjust baud rate, number of bits, parity control or non parity or stop bits depending on the configuration – for RS1 and RS2 ports the configuration can be different. ADA-4040A additionally separates devices from RS-485 network and can be used as repeater of RS422/RS485 bus with speed conversion between next segments about the length up to 1200m. -
Page 5: Isolation
- not supply converter from power circuit device that generates large impulse interference such as transmitters, contactors. 3.1. ASSEMBLING The cover of ADA-4040A converter is adapted to assembly on TS-35 (DIN35) rail. To install converter you should mount device on the rail upper part of the cover then press bottom part to hear characteristic „Click” sound. -
Page 6: Rs485 Network Connection
Fig 4b. 2-wires connection ADA-4040A to PC by the use of ADA-I9140 USB to RS485/RS422 3.3. RS485 NETWORK CONNECTION RS485/RS422 interface in ADA-4040A converter is described as: Tx+/A, Tx-/B, Rx+, Rx- GND. The ways of connection the converter to RS485(4W) / RS422 bus, are shown below. -
Page 7: Rs485(2W) Bus Connection
Should be connected positive (+) end of DC power supplies to Vss+ device terminal and negative (-) end to Vss- on terminal block. ADA-4040A has protection against power supply reverse connection. If the power is properly connected, on the front panel will light... -
Page 8: Activation
RS1 port (RS485 bus). Firstly should be set a number of COM port for communication with the converter, then readout the configuration from ADA-4040A... -
Page 9: Configuration Of Addressing Mode
ADA-4040A 5.2.1. CONFIGURATION OF ADDRESSING MODE If the option Converter Address will be enabled, on configuration window should be set a proper converter address from range 1 - 255. If this option is disabled the converter will operate as baud rate converter. -
Page 10: Firmware Update
SW1-2 After micro-switch setting restart the ADA-4040A by turning OFF and then ON the power supply. The yellow LED will light continuously and the converter will be in Emergency Firmware Update mode. Now follow the description in point FIRMWARE UPDATE. After... -
Page 11: Factory Default
6.1. OPERATION IN NON ADDRESSABLE MODE In this mode ADA-4040A operates as baud rate converter and data format converter and lets to set different baud rates and data format on RS1 & RS2 interfaces. It lets connect to RS485 network old devices operate with non-configure baud rate and data format, on which operate devices with different baud rate or data format. - Page 12 ADA-4040A ADA-4040A converter with set up addressing is listening constantly to frame on RS485 bus via RS1 port. If received frame contains byte of address equal to address of converter, then another bytes of frame are received, right up to silence on RS-485 bus equal to 'space between frames in signs'.
-
Page 13: Changes In The Software
Galvanic isolation: 1kV=, 2-way 1kV=, 3-way Order example: 3kV=, 2-way Product Symbol: ADA-4040A-23-3 23 – 3-way galvanic isolation on the level 1kV=, 3kV=, 3-way 3 - cover without inlets, plug-in screw terminal block, Terminal & Terminal Cover: Cover without inlets, screw terminal block... - Page 14 ADA-4040A Optoisolation ~3kV - between signal lines RS-485/RS-422 (RS1) and RS-485/RS-422 (RS2) Resistance to disruptions according to the standard PN-EN 55024. Electromagnetic compatibility Emission of disruptions according to the standard PN-EN 55022. Safety requiring According to the PN-EN60950 norm. Environment Commercial and light industrial.
- Page 15 ADA-4040A...
- Page 16 Thank you for purchasing CEL-MAR Company product. We hope that this user manual helped connect and start up the ADA-4040A converter. We also wish to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data transmission converters with interface RS232, RS485, RS422, USB, Ethernet, Wi-Fi, Current Loop, Fibre-Optic Converters and other.
