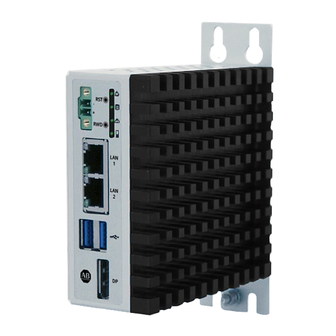

Rockwell Automation Allen-Bradley VersaView 6300B-BMA Series Installation Instructions Manual

Installation Instructions
Original Instructions
VersaView 6300B Book Mount Box PCs and 6300T Book Mount Box Thin Clients
Bulletin Numbers 6300B-BMAx, 6300B-BMBx, 6300T-BAx1
Summary of Changes
This publication contains the following new or updated information. This list includes substantive updates only and is not intended to reflect all changes. Translated
versions are not always available for each revision.
Topic
Added surrounding air temperature ranges for Intel Core i3 and i7 processors in the Installation Guidelines section.
Reduced drill size from 4.5 mm to 4 mm to drill mounting holes in the Required Tools and Hardware for Installation section and in the dimensional drawing.
Added the 6300B-BMBx Box PC dimensions to the dimensional drawing.
Changed section title from Connect Peripherals to Connect Peripheral Cables.
Revised EN 55024 and 55032 to EN 61326-1 in the Connect Peripheral Cables section.
Added both photographs and items to the table in the Connect Peripheral Cables section.
Added the Important table to step 5 in the Install the Factory-supplied DC Power Connector Assembly subsection.
Added Table 1 and the corresponding illustration in the Install the Factory-supplied DC Power Connector Assembly subsection.
Added the Tip tables in the Install the Factory-supplied DC Power Connector Assembly subsection.
Added the Attention table at the top of the page.
Changed section title from Computer Power Status to the Computer Light-emitting Diode and Button Descriptions.
Added Tables 2 and 3 to the Computer Light-emitting Diode and Button Descriptions section.
Environment and Enclosure Information
ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in
IEC 60664-1), at altitudes up to 2000 m (6561 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according to IEC/EN 61326-1. Without appropriate precautions, there can be
potential difficulties with electromagnetic compatibility in other environments due to conducted as well as radiated disturbance.
This equipment is considered open equipment, which means it must be mounted in an enclosure where the equipment can be operated from the front
panel.
The enclosure in which this equipment is installed must be accessed only with a key or tool, and only by trained and authorized personnel.
In addition to this publication, see the following:
• Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1, for more installation requirements
• UL 50, CSA C22.2 No. 94.1, and IEC 60529, as applicable, for explanations of the degrees of protection provided by enclosures
UL/cUL Mark Compliance
Equipment with the UL/cUL mark comply with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010-2-201. A copy of the certificate
of compliance is available at rok.auto/certifications.
European Union Directive Compliance
This computer meets the European Union Directive requirements when installed within the European Union or EEA regions and have the CE marking. A copy of the
declaration of the conformity is available at rok.auto/certifications.
ATTENTION: This equipment is intended to operate in an industrial or control room environment, which uses some form of power isolation from the
public low-voltage mains. Some computer configurations cannot comply with the EN 61000-3-2 Harmonic Emissions standard as specified by the EMC
Directive of the European Union. Obtain permission from the local power authority before you connect any computer configuration that draws more
than 75 W of AC power directly from the public mains.
All I/O cables must be used only indoors.
