Installation Instructions
Original Instructions

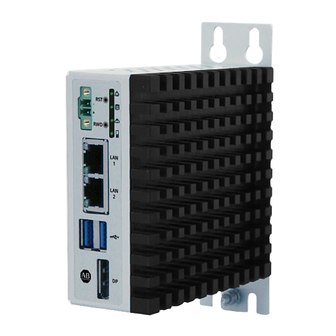

ASEM 6300B Box PCs and 6300T Thin Clients
Catalog Numbers 6300B-BMA, 6300B-BMB, 6300B-BMF, 6300B-BMN, 6300B-DRA, 6300B-DRF, 6300B-DRN, 6300T-BA, 6300T-BB
The following catalog numbers are ASEM™ 6300B Edge Box PCs intended for use with FactoryTalk® Edge™ Manager:
• 6300B-BMBDNE-3DBAE01FNNBNN-NN1S
• 6300B-BMBDNE-7EDAE01FNNDNN-NN1S
• 6300B-BMBDNE-3DBAE01NNNBNN-NN1S
• 6300B-BMBDNE-7EDAE01NNNDNN-NN1S
These catalog numbers have a unique Edge Virtualization Engine operating system (EVE-OS) orchestrated from FactoryTalk Edge Manager.
If you have sent the product to be returned or repaired, the device software and data has been erased and the EVE-OS has been reinstalled.
For more information on FactoryTalk Edge Manager, see publication
Summary of Changes
This publication contains the following new or updated information. This list includes substantive updates only and is not intended to reflect all changes.
Topic
Added information regarding ASEM 6300B Edge Box PCs intended for use with FactoryTalk Edge Manager
Environment and Enclosure Information
ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in
IEC 60664-1), at altitudes up to 2000 m (6561 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according to IEC/EN 61326-1. Without appropriate precautions, there can be
potential difficulties with electromagnetic compatibility in other environments due to conducted as well as radiated disturbance.
This equipment is considered open equipment, which means it must be mounted in an enclosure where the equipment can be operated from the front
panel.
The enclosure in which this equipment is installed must be accessed only with a key or tool, and only by trained and authorized personnel.
In addition to this publication, see the following:
• Industrial Automation Wiring and Grounding Guidelines, publication
• UL 50, CSA C22.2 No. 94.1, and IEC 60529, as applicable, for explanations of the degrees of protection provided by enclosures.
UL/cUL Mark Compliance
Equipment with the UL/cUL mark complies with the requirements of UL 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-1, and CSA C22.2 No. 61010-2-201. 
A copy of the certificate of compliance is available at rok.auto/certifications.
European Union Directive Compliance
This equipment meets the European Union Directive requirements when installed within the European Union or EEA regions and have the CE marking.
A copy of the declaration of the conformity is available at rok.auto/certifications.
ATTENTION: This equipment is intended to operate in an industrial or control room environment, which uses some form of power isolation from the
public low-voltage mains. Some computer configurations cannot comply with the EN 61000-3-2 Harmonic Emissions standard as specified by the
EMC Directive of the European Union.
All I/O cables must be used only indoors.
95055-UM007-EN-P and publication 95055-QS003-EN-P.
Page
1
, for more installation requirements.
1770-4.1
