Installation Instructions
Original Instructions
VersaView 5000 Thin Clients, Industrial
Computers, and Accessories for Hazardous
Locations
Catalog Numbers 6200P-NS3A1, 6200P-NS3A1K, 6200P-NS3B1, 6200P-NS3B1K, 6200P-NS3C1,
6200P-NS3C1K, 6200P-NS3C6, 6200T-NA, 6200T-NAK, 6200V-BXDIN, 6200V-BXLGCY,
6200V-BXMACH, 6200V-BXVESA, 6200V-BXWALL, 6200V-DCCONN, 6200V-DPCBL2M,
6200V-DPDVI2, 6200V-DPHDMI4K, 6200V-DPVGA2, 6200V-DVICBL2M, 6200V-PLUGS,
6200V-USBCBL2M, and 6200V-VGACBL2M
Topic
Page
2
3
4
4
5
6
7
8
8
8
9
10
11
11
12
12
14
24
25
27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rockwell Automation Allen-Bradley VersaView 5000
Summary of Contents for Rockwell Automation Allen-Bradley VersaView 5000
-
Page 1: Table Of Contents
Installation Instructions Original Instructions VersaView 5000 Thin Clients, Industrial Computers, and Accessories for Hazardous Locations Catalog Numbers 6200P-NS3A1, 6200P-NS3A1K, 6200P-NS3B1, 6200P-NS3B1K, 6200P-NS3C1, 6200P-NS3C1K, 6200P-NS3C6, 6200T-NA, 6200T-NAK, 6200V-BXDIN, 6200V-BXLGCY, 6200V-BXMACH, 6200V-BXVESA, 6200V-BXWALL, 6200V-DCCONN, 6200V-DPCBL2M, 6200V-DPDVI2, 6200V-DPHDMI4K, 6200V-DPVGA2, 6200V-DVICBL2M, 6200V-PLUGS, 6200V-USBCBL2M, and 6200V-VGACBL2M Topic Page Installation Precautions... -
Page 2: Installation Precautions
VersaView 5000 devices for hazardous locations meet the European Union Directive requirements when installed within the European Union or EEA regions and have the CE marking. A copy of the declaration of the conformity is available at the Rockwell Automation® Product Certifications website. -
Page 3: Hazardous Locations
• The internal enclosure ambient temperature range is -20…+60 °C (-4…+140 °F). (2) These ThinManager thin client and industrial computers for hazardous locations are required to be mounted in a restricted access location. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 4: Hot Surfaces
• Access is by using a tool, a lock and key, or other means of security controlled by the authority responsible for the location. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 5: Environnements Dangereux
Voir également le graphique Directives d’installation en page 8 de ce document. N’installez pas l’ordinateur dans des environnements atmosphériques explosifs (par ex. du gaz) dont la température d’inflammabilité est inférieure à 135 °C. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 6: Versaview 5000 Thin Client And Industrial Computer Options
6200V-VGACBL2M VGA to VGA cable, 2 m (6.5 ft) long Power connection 6200V-DCCONN DC power mating connector housing kit To install many of these accessories, see Install Accessories for Hazardous Locations on page Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 7: Operating Systems
5000 Thin Client and Industrial Computer Options on page No operating system updates have been applied to the factory image beyond any listed service packs. To obtain a copy of a factory system image, access the Rockwell Automation® Product Compatibility and Download Center (PCDC) at https://compatibility.rockwellautomation.com/Pages/home.aspx. -
Page 8: Before You Begin
• To connect wires to DC terminal block • 0.22…0.25 N•m (1.95…2.21 lb•in) • To connect to earth ground • 3.1 N•m (2.29 lb•in) (1) On either computer chassis or factory-installed bookshelf mounting bracket. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 9: Mounting Clearance Requirements
• The minimum space clearance of 5 cm (2 in.) is used around the VersaView 5000 device. • The enclosure can exceed the rated maximum temperature of 60 °C (140 °F) for the VersaView 5000 device. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 10: Dimensions
4 x Ø11 With the Factory-installed Bookshelf Mounting Plate (0.22) (0.43) Ground Screw 240 (9.45) (1.26) 266 (10.47) IMPORTANT The supplied rubber mount pads cannot be used as a mounting method in hazardous locations. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -
Page 11: Tools For Installation
IMPORTANT: Do not mount the VersaView device in any position that restricts air flow over the cooling fins. NOTE: The VersaView device can also be installed in this position with I/O connections at the top. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... -

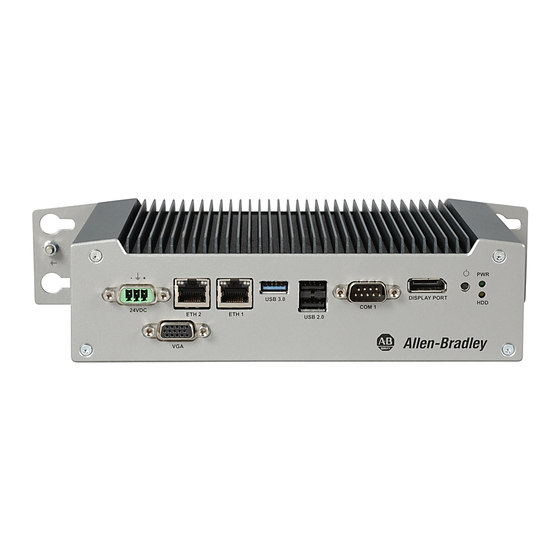

Page 12: Hardware Features
End User Setup procedure. Do not disconnect power from the system until after the Windows Setup procedure is completed. If power is disconnected during this procedure, it can result in a corrupted system image. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... - Page 13 1. Turn off the main power switch or breaker. 2. Verify that the DC power wires meet the requirements in the table in Installation Guidelines on page Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
-
Page 14: Install Accessories For Hazardous Locations
Failure to do so could result in an electric arc that can cause an explosion in a hazardous location. SHOCK HAZARD: Disconnect all power before you remove components. Failure to do so can result in severe electrical shock to an individual or damage to the equipment. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019... - Page 15 4. To start the VersaView 5000 device, press the power switch. Required Tools The following tools are required to install or replace a component: • The appropriate tools for wall or machine mounting • Torx 10 key or screwdriver Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 16 To install a VESA mounting plate, perform the following steps. 1. Follow the steps for Pre-configuration on page 2. With the Torx 10 key or screwdriver, remove these two screws on the bottom of the VersaView 5000 device. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 17 5, tighten the reinstalled Torx screws to a torque of 0.5 ft•lb (0.7 N•m). 5. Reinstall the two screws that you removed in step 6. With four customer-supplied screws, install the VESA mounting bracket to the VESA mounting arm. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 18 9. Install the VersaView 5000 device to the VESA mounting bracket with the four screws that you removed in steps and 8. Tighten the screws to a torque of 0.5 ft•lb (0.7 N•m). 10. Follow the steps for Post-configuration on page Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 19 4. Install the new backplate from the DIN rail mounting kit with the four screws that you removed in step For this step and step 5, tighten the reinstalled Torx screws to a torque of 0.5 ft•lb (0.7 N•m). 5. Reinstall the two screws that you removed in step Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 20 2. With the Torx 10 key or screwdriver, remove these two screws on the bottom of the VersaView 5000 device. 3. Remove the four screws that secure the factory-installed mounting plate to the back of the VersaView 5000 device. Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 21 5. Remove these six Torx screws. 6. Install both brackets included in the kit with the eight screws that were removed in steps and 5. Tighten the screws to a torque of 0.5 ft•lb (0.7 N•m). Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 22 (2.62) 4 x Ø11 8 x Ø5.5 (0.43) (0.22) (3.94) 245 (9.65) 270 (10.63) IMPORTANT For acceptable machine mounting positions, see Figure 2 on page 8. Follow the steps for Post-configuration on page Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
- Page 23 3. Remove the four screws that secure the factory-installed mounting plate to the back of the VersaView 5000 device. 4. Install the legacy mounting plate with the four screws that you removed in step Tighten the screws to a torque of 0.5 ft•lb (0.7 N•m). Rockwell Automation Publication 6200-IN001A-EN-P - October 2019...
-
Page 24: Ship Or Transport Versaview 5000 Devices For Hazardous Locations
VersaView 5000 device and place it in its original packing material before shipping. Rockwell Automation is not responsible for any damage to a VersaView 5000 device for hazardous locations that is shipped or transported while installed in a machine or enclosure. -
Page 25: Technical Specifications
Software Operating systems VersaView 5000 Thin Client and — Industrial Computer Options on page 6 (1) Audio output/line out supported. For more information, access the Rockwell Automation Knowledgebase article 1083757 at https://rockwellautomation.custhelp.com/app/answers/detail/a_id/1083757. Physical Specifications 6200P-NS3A1, 6200P-NS3B1, 6200P-NS3A1K, 6200P-NS3C1,... - Page 26 Enclosure ratings IP20 Certifications For the most current information on all certifications for VersaView 5000 devices for hazardous locations, visit the Rockwell Automation Product Certifications website at https://www.rockwellautomation.com/en_NA/detail.page?pagetitle=Product- Certifications&content_type=tech_data&docid=de1cc7d81606981b0f214fed1137f539 6200T-NA, 6200T-NAK, 6200P-NS3A1, 6200P-NS3A1K, 6200P-NS3B1, 6200P-NS3B1K, Attribute 6200P-NS3C1, 6200P-NS3C1K, 6200P-NS3C6 RoHS Turkey RoHS (EEE Yönetmeliğine Uygundur.
-
Page 27: Additional Resources
VersaView 5000 Thin Clients, Industrial Computers, and Accessories for Hazardous Locations Additional Resources These documents contain additional information to related products from Rockwell Automation. Resource Description Industrial Computers and Monitors Specifications Provides technical specifications for Rockwell Automation industrial Technical Data, publication... - Page 28 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, FactoryTalk Analytics, Rockwell Automation, ThinManager, and VersaView are trademarks of Rockwell Automation, Inc. Intel Atom is a trademark of Intel Corporation. Microsoft and Windows are trademarks of Microsoft Corporation.
